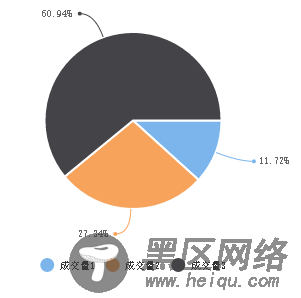

new wxCharts({ animation: true, //是否有动画 canvasId: 'pieCanvas', type: 'pie', series: [{ name: '成交量1', data: 15, }, { name: '成交量2', data: 35, }, { name: '成交量3', data: 78, }], width: windowWidth, height: 300, dataLabel: true, }); }
2. ring
new wxCharts({ animation: true, canvasId: 'ringCanvas', type: 'ring', extra: { ringWidth: 25, pie: { offsetAngle: -45 } }, title: { name: '70%', color: '#7cb5ec', fontSize: 25 }, subtitle: { name: '收益率', color: '#666666', fontSize: 15 }, series: [{ name: '成交量1', data: 15, stroke: false }, { name: '成交量2', data: 35, stroke: false }, { name: '成交量3', data: 78, stroke: false }, { name: '成交量4', data: 63, stroke: false }], disablePieStroke: true, width: windowWidth, height: 200, dataLabel: false, legend: false, padding: 0 });

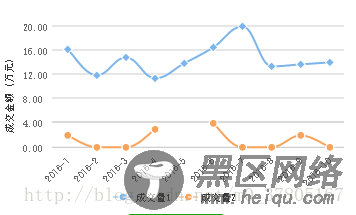

3. line
new wxCharts({ canvasId: 'lineCanvas', type: 'line', categories: simulationData.categories, animation: true, background: '#f5f5f5', series: [{ name: '成交量1', data: simulationData.data, format: function (val, name) { return val.toFixed(2) + '万'; } }, { name: '成交量2', data: [2, 0, 0, 3, null, 4, 0, 0, 2, 0], format: function (val, name) { return val.toFixed(2) + '万'; } }], xAxis: { disableGrid: true }, yAxis: { title: '成交金额 (万元)', format: function (val) { return val.toFixed(2); }, min: 0 }, width: windowWidth, height: 200, dataLabel: false, dataPointShape: true, extra: { lineStyle: 'curve' } });

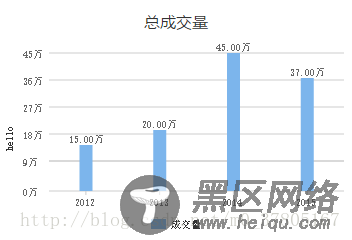

4. column
new wxCharts({ canvasId: 'columnCanvas', type: 'column', animation: true, categories: chartData.main.categories, series: [{ name: '成交量', data: chartData.main.data, format: function (val, name) { return val.toFixed(2) + '万'; } }], yAxis: { format: function (val) { return val + '万'; }, title: 'hello', min: 0 }, xAxis: { disableGrid: false, type: 'calibration' }, extra: { column: { width: 15 } }, width: windowWidth, height: 200, });

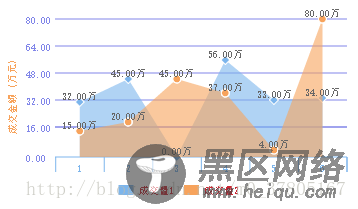

5. area
new wxCharts({ canvasId: 'areaCanvas', type: 'area', categories: ['1', '2', '3', '4', '5', '6'], animation: true, series: [{ name: '成交量1', data: [32, 45, 0, 56, 33, 34], format: function (val) { return val.toFixed(2) + '万'; } }, { name: '成交量2', data: [15, 20, 45, 37, 4, 80], format: function (val) { return val.toFixed(2) + '万'; }, }], yAxis: { title: '成交金额 (万元)', format: function (val) { return val.toFixed(2); }, min: 0, fontColor: '#8085e9', gridColor: '#8085e9', titleFontColor: '#f7a35c' }, xAxis: { fontColor: '#7cb5ec', gridColor: '#7cb5ec' }, extra: { legendTextColor: '#cb2431' }, width: windowWidth, height: 200 });
6.radar
new wxCharts({ canvasId: 'radarCanvas', type: 'radar', categories: ['1', '2', '3', '4', '5', '6'], series: [{ name: '成交量1', data: [90, 110, 125, 95, 87, 122] }], width: windowWidth, height: 200, extra: { radar: { max: 150 } } });
本人是自己查阅资料自己整理，希望对自己和有问题的你们都有帮
