Cloudera Manager Server CDH 5.15部署详解(2)

Cloudera Manager Server  Agent 安装

Yum 安装

Yum 网络安装方式,如果你已经配置 yum

yum install cloudera-manager-daemons cloudera-manager-server

rpm 包安装

所有服务器都需要的操作:

我们使用 rpm 安装所以其他的依赖包需要使用 yum 安装

yum install bind-utils psmisc libxslt cyrus-sasl-plain cyrus-sasl-gssapi fuse  portmap fuse-libs  httpd mod_ssl Python-psycopg2 redhat-lsb-core –y

wget https://archive.cloudera.com/cm5/redhat/7/x86_64/cm/5.15.0/RPMS/x86_64/cloudera-manager-daemons-5.15.0-1.cm5150.p0.62.el7.x86_64.rpm

rpm –ivh cloudera-manager-daemons-5.15.0-1.cm5150.p0.62.el7.x86_64.rpm

Server 服务器

https://archive.cloudera.com/cm5/redhat/7/x86_64/cm/5/RPMS/x86_64/

下载 server rpm

wget https://archive.cloudera.com/cm5/redhat/7/x86_64/cm/5.15.0/RPMS/x86_64/cloudera-manager-server-5.15.0-1.cm5150.p0.62.el7.x86_64.rpm

wget https://archive.cloudera.com/cm5/redhat/7/x86_64/cm/5.15.0/RPMS/x86_64/cloudera-manager-server-db-2-5.15.0-1.cm5150.p0.62.el7.x86_64.rpm

rpm –ihv cloudera-manager-server-5.15.0-1.cm5150.p0.62.el7.x86_64.rpm cloudera-manager-server-db-2-5.15.0-1.cm5150.p0.62.el7.x86_64.rpm

Agent 服务器安装

Wget https://archive.cloudera.com/cm5/redhat/7/x86_64/cm/5.15.0/RPMS/x86_64/cloudera-manager-agent-5.15.0-1.cm5150.p0.62.el7.x86_64.rpm

Rpm –ivh cloudera-manager-agent-5.15.0-1.cm5150.p0.62.el7.x86_64.rpm

安装MySQL

数据库这一步我们可以找DBA 协助

server 机安装配置MySQL

sudo yum install mysql-server

设置开机启动

sudo chkconfig mysqld on

启动MySQL service

sudo service mysqld start

设置root用户密码

sudo mysqladmin -u root password 'xxxx'

Cloudera Manager建立数据库

下载MySQL驱动:

解压把驱动的jar文件mysql-connector-java.jar上传到/usr/share/java/

初始化数据cloudera

sudo /user/share/cmf/schema/scm_prepare_database.sh mysql cm -hlocalhost -uroot -pmysql@Hadoop0 --scm-host localhost scm mysql@Hadoop:scm:88

如果DBA已经帮我们处理完的数据库的事情,我们需要修改 数据库配置文件

c /etc/cloudear-scm-server/db.properties

com.cloudera.cmf.db.type=mysql

com.cloudera.cmf.db.host=www.mydatabase.com:3306

com.cloudera.cmf.db.name=scm

com.cloudera.cmf.db.user=devuser

com.cloudera.cmf.db.password=Devuser123

com.cloudera.cmf.db.setupType=EXTERNAL

Master机上启动Cloudera Manager  Server

Systemctl start cloudera-scm-server

Systemctl enable cloudera-scm-server

Agent配置

在所有机器上配置Master机的主机名

sudo vim /etc/cloudera-scm-agent/config.ini

server_host设置成Master机的主机名

server_host=192.1687.1.2

启动agent

Systemctl  start cloudera-scm-agent

Systemctl enable cloudera-scm-agent

打开Cloudera Manager主页

:7180/

第一次启动比较慢,可能需要等待几分钟才可以打得开cloudera manager主页。

Cloudera Manager Server CDH 5.15部署详解

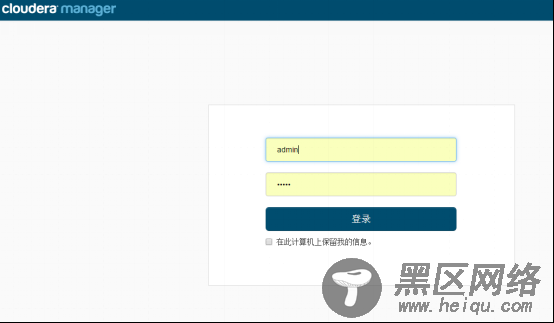

登录Cloudera Manager

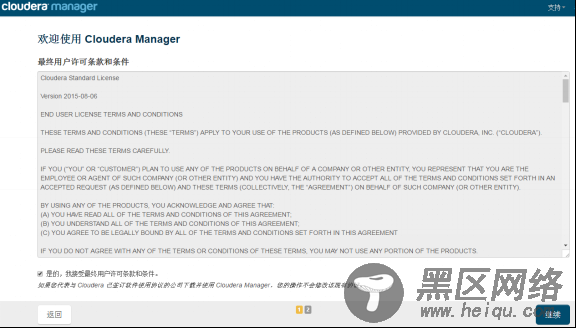

默认用户名密码都是admin,第一次登录成功之后先进入到cloudera manager的安装引导界面:

Cloudera Manager Server CDH 5.15部署详解

CDH安装

CDH文件上传

下载 CDH 安装包和 sha 验证文件

wget

wget
