WebUploader是由Baidu WebFE(FEX)团队开发的一个简单的以HTML5为主,FLASH为辅的现代文件上传组件。在现代的浏览器里面能充分发挥HTML5的优势,同时又不摒弃主流IE浏览器,沿用原来的FLASH运行时,兼容IE6+,iOS 6+, android 4+。两套运行时,同样的调用方式,可供用户任意选用。采用大文件分片并发上传,极大的提高了文件上传效率。(这个是从官网上直接copy的解释)
功能描述
1、webuploader是百度研发的上传组件,文档不是特别规整,但是也够用了。
2、前端使用官网的上传图片demo,在此基础上代码略微调整做分片。既可以上传图片也可以上传文件。文件超过分片大小才启用分片。
3、分片上传已做md5校验,达到秒传的效果。分片以后需要合并,可以先分片后合并,也可以边分片边合并,本示例采用的是边分片边合并的方案。
4、后端用springboot做框架搭建。springMVC做rest服务,开启跨域访问。
5、容器用springboot内置的tomcat插件,运行Application的main方法即可启动服务;

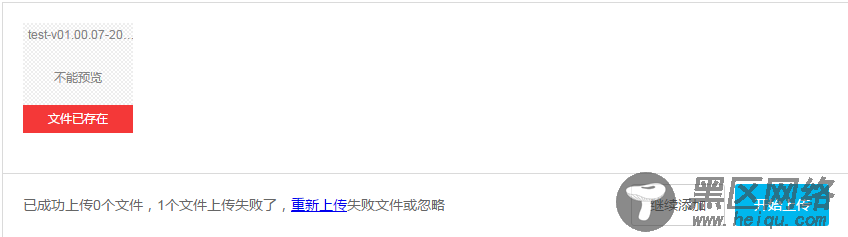

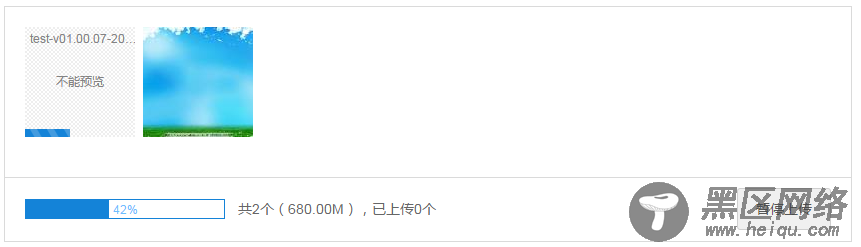

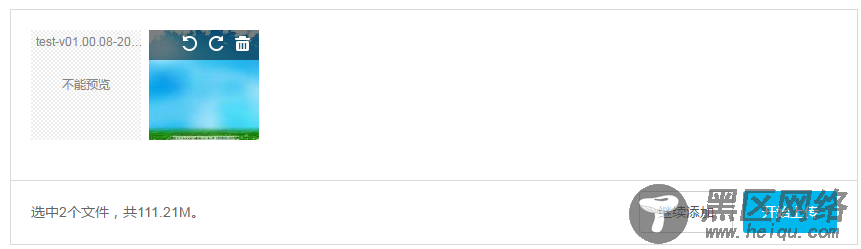

显示效果
关键代码前端
WebUploader.Uploader.register({ 'name': 'webUploaderHookCommand', 'before-send-file': 'beforeSendFile', "before-send": "beforeSend" }, { beforeSendFile: function(file) { var task = new WebUploader.Deferred(); fileName = file.name; fileSize = file.size; (new WebUploader.Uploader()).md5File(file, 0, 10 * 1024 * 1024).progress(function(percentage) {}).then(function(val) { fileMd5 = val; var url = checkUrl; var data = { type: 0, fileName: fileName, fileMd5: fileMd5, fileSize: fileSize }; $.ajax({ type: "POST", url: url, data: data, cache: false, async: false, // 同步 timeout: 1000, // todo 超时的话,只能认为该分片未上传过 dataType: "json", error: function(XMLHttpRequest, textStatus, errorThrown) { file.statusText = 'server_error'; task.reject(); } }).then(function(data, textStatus, jqXHR) { if(data.rtn == 0) { if(data.obj == 1) { file.statusText = 'file_existed'; task.reject(); } else { task.resolve(); } } else { task.reject(); } }); }); return task.promise(); }, beforeSend: function(block) { var task = new WebUploader.Deferred(); var url = checkUrl; var data = { type: 1, fileName: fileName, fileMd5: fileMd5, chunk: block.chunk, fileSize: block.end - block.start }; $.ajax({ type: "POST", url: url, data: data, cache: false, async: false, // 同步 timeout: 1000, // todo 超时的话,只能认为该分片未上传过 dataType: "json" }).then(function(data, textStatus, jqXHR) { if(data.rtn == 0 && data.obj == 1) { task.reject(); // 分片存在,则跳过上传 } else { task.resolve(); } }); this.owner.options.formData.fileMd5 = fileMd5; this.owner.options.formData.chunkSize = chunkSize; return task.promise(); } }); // 实例化 uploader = WebUploader.create({ pick: { id: '#filePicker', label: '点击选择文件' }, formData: { uid: 123 }, dnd: '#dndArea', //指定文件拖拽的区域 paste: '#uploader', //指定监听paste事件的容器,如果不指定,不启用此功能。此功能为通过粘贴来添加截屏的图片。建议设置为document.body. swf: '../plugins/webuploader/Uploader.swf', chunked: true, chunkSize: chunkSize, chunkRetry: false, threads: 1, server: uploadUrl, // runtimeOrder: 'flash', // accept: { // title: 'Images', // extensions: 'gif,jpg,jpeg,bmp,png', // mimeTypes: 'image/*' // }, // 禁掉全局的拖拽功能。这样不会出现图片拖进页面的时候,把图片打开。 disableGlobalDnd: true, fileNumLimit: 300 //限制多文件上传的个数 //fileSizeLimit: 200 * 1024 * 1024, // 限制所有文件的大小 200 M //fileSingleSizeLimit: 50 * 1024 * 1024 // 限制单个文件的大小 50 M });
后端
import java.io.File; import java.io.IOException; import org.slf4j.Logger; import org.slf4j.LoggerFactory; import org.springframework.beans.factory.annotation.Value; import org.springframework.stereotype.Service; import org.springframework.web.multipart.MultipartFile; import com.bear.upload.util.FileUtil; import com.bear.upload.util.RETURN; import com.bear.upload.vo.CheckMd5FileVO; import com.bear.upload.vo.UploadVO; @Service public class ChunkUploadService { private static Logger LOG = LoggerFactory.getLogger(ChunkUploadService.class); @Value("${file.upload.path}") private String UPLOAD_PATH; private static final String Delimiter = "-"; /** * 上传之前校验(整个文件、分片) * * @param md5FileVO * @return */ public Object check(CheckMd5FileVO md5FileVO) { Integer type = md5FileVO.getType(); Long chunk = md5FileVO.getChunk(); String fileName = md5FileVO.getFileName(); Long fileSize = md5FileVO.getFileSize(); if (type == 0) {// 未分片校验 String destfilePath = UPLOAD_PATH + File.separator + fileName; File destFile = new File(destfilePath); if (destFile.exists() && destFile.length() == fileSize) { return RETURN.success("文件已存在,跳过", 1); } else { return RETURN.success("文件不存在", 0); } } else {// 分片校验 String fileMd5 = md5FileVO.getFileMd5(); String destFileDir = UPLOAD_PATH + File.separator + fileMd5; String destFileName = chunk + Delimiter + fileName; String destFilePath = destFileDir + File.separator + destFileName; File destFile = new File(destFilePath); if (destFile.exists() && destFile.length() == fileSize) { return RETURN.success("分片已存在,跳过", 1); } else { return RETURN.success("分片不存在", 0); } } } /** * 文件上传 * * @param file * @param uploadVO * @param appVersion * @return */ public Object upload(MultipartFile file, UploadVO uploadVO) { Long chunk = uploadVO.getChunk(); if (chunk == null) {// 没有分片 return UnChunkUpload(file, uploadVO); } else {// 分片 return ChunkUpload(file, uploadVO); } } /** * 分片上传 * * @param file * @param uploadVO * @param appVersion * @return */ public Object ChunkUpload(MultipartFile file, UploadVO uploadVO) { String fileName = uploadVO.getName(); String fileMd5 = uploadVO.getFileMd5(); Long chunk = uploadVO.getChunk();// 当前片 Long chunks = uploadVO.getChunks();// 总共多少片 // 分片目录创建 String chunkDirPath = UPLOAD_PATH + File.separator + fileMd5; File chunkDir = new File(chunkDirPath); if (!chunkDir.exists()) { chunkDir.mkdirs(); } // 分片文件上传 String chunkFileName = chunk + Delimiter + fileName; String chunkFilePath = chunkDir + File.separator + chunkFileName; File chunkFile = new File(chunkFilePath); try { file.transferTo(chunkFile); } catch (Exception e) { LOG.error("分片上传出错", e); return RETURN.fail("分片上传出错", 1); } // 合并分片 Long chunkSize = uploadVO.getChunkSize(); long seek = chunkSize * chunk; String destFilePath = UPLOAD_PATH + File.separator + fileName; File destFile = new File(destFilePath); if (chunkFile.length() > 0) { try { FileUtil.randomAccessFile(chunkFile, destFile, seek); } catch (IOException e) { LOG.error("分片{}合并失败:{}", chunkFile.getName(), e.getMessage()); return RETURN.fail("分片合并失败", 1); } } if (chunk == chunks - 1) { // 删除分片文件夹 FileUtil.deleteDirectory(chunkDirPath); return RETURN.success("上传成功", 1); } else { return RETURN.fail("上传中...", 1); } } /** * 未分片上传 * * @param file * @param uploadVO * @param appVersion * @return */ public Object UnChunkUpload(MultipartFile file, UploadVO uploadVO) { String fileName = uploadVO.getName(); // String fileMd5 = uploadVO.getFileMd5(); // 文件上传 File destFile = new File(UPLOAD_PATH + File.separator + fileName); if (file != null && !file.isEmpty()) { // 上传目录 File fileDir = new File(UPLOAD_PATH); if (!fileDir.exists()) { fileDir.mkdirs(); } if (destFile.exists()) { destFile.delete(); } try { file.transferTo(destFile); return RETURN.success("上传成功", 0); } catch (Exception e) { LOG.error("文件上传出错", e); return RETURN.fail("文件上传出错", 0); } } return RETURN.fail("上传失败", 0); } }
