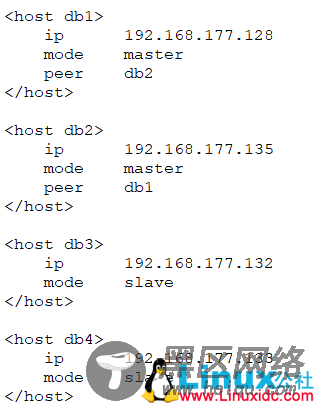

<host db3>
ip 192.168.177.132
mode slave
</host>
<host db4>
ip 192.168.177.133
mode slave
</host>

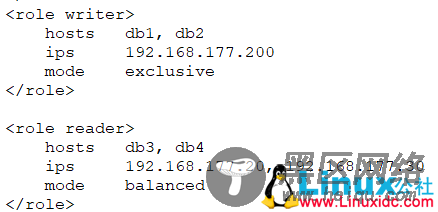

<role writer>
hosts db1, db2
ips 192.168.177.200 #主服务器虚拟IP
mode exclusive
</role>
<role reader>
hosts db3, db4
ips 192.168.177.20,192.168.177.30 #从服务器虚拟IP
mode balanced
</role>
在主1上面复制：
# scp mmm_common.conf root@192.168.177.135:/etc/mysql-mmm/
# scp mmm_common.conf root@192.168.177.133:/etc/mysql-mmm/
# scp mmm_common.conf root@192.168.177.132:/etc/mysql-mmm/
在monitor服务器上配置
# systemctl stop firewalld.service
# setenforce 0
# wget -O /etc/yum.repos.d/CentOS-Base.repo
# yum -y install epel-release
# yum clean all && yum makecache
# yum -y install mysql-mmm*
# cd /etc/mysql-mmm
# vim mmm_mon.conf
<host default>
ping_ips 192.168.177.132,192.168.177.128,192.168.177.133,192.168.177.135 //四台地址
monitor_user mmm_monitor
monitor_password 123456
auto_set_online 10
</host>
在m1上：# scp mmm_common.conf root@192.168.177.134:/etc/mysql-mmm/
在所有数据库上为mmm_agent授权-四台主从
# mysql>
# grant super, replication client, process on *.* to 'mmm_agent'@'192.168.177.%' identified by '123456';
在所有数据库上为mmm_moniter授权-四台主从
# grant replication client on *.* to 'mmm_monitor'@'192.168.177.%' identified by '123456';
# flush privileges;
修改所有数据库的mmm_agent.conf-四台主从
# vim /etc/mysql-mmm/mmm_agent.conf
this db1 //根据规划进行逐一调整
this db2
this db3
this db4
在所有数据库服务器上启动mysql-mmm-agent-四台主从
# systemctl start mysql-mmm-agent.service
# systemctl enable mysql-mmm-agent.service #开机自启动
在monitor服务器上配置
# systemctl start mysql-mmm-monitor.service
# mmm_control show

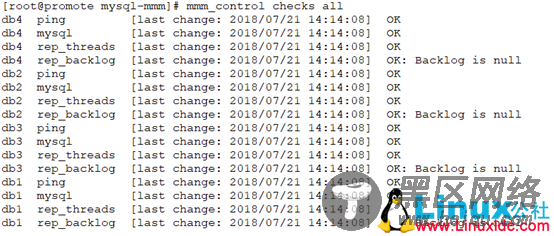

# mmm_control checks all
# mmm_control move_role writer db2 //指定db2绑定虚拟IP
故障测试
停止m1 确认 虚拟地址 200 是否移动到 m2 上。注意：主不会抢占
# systemctl stop mariadb.service //m1上
# mmm_control show
db1(192.168.177.128) master/HARD_OFFLINE. Roles:
db2(192.168.177.135) master/ONLINE. Roles: writer(192.168.177.200)
