PXE+Kickstart安装CentOS 7.3

背景：

PXE+Kickstart安装CentOS 7.3

Linux系统版本：CentOS 7.3
软件版本：yum  epel源

主机IP：    192.168.8.35
需要软件：tftp-server dhcp syslinux xinetd system-config-kickstart nginx

[root@node1 ~]# yum -y install tftp-server dhcp syslinux xinetd system-config-kickstart

[root@node1 ~]# cp /usr/share/doc/dhcp-4.2.5/dhcpd.conf.example /etc/dhcp/dhcpd.conf

[root@node1 ~]# vim /etc/dhcp/dhcpd.conf    # 添加如下行

subnet 192.168.8.0 netmask 255.255.255.0 {
        option routers 192.168.8.35;
        range 192.168.8.103 192.168.8.200;
        option domain-name-servers 192.168.8.35;
        filename "pxelinux.0";
        next-server 192.168.8.35;
        default-lease-time 600;
        max-lease-time 7200;
}

# 改完之后重新dhcpd

# 命令详解
# option routers                dhcp路由地址
# range                            dhcp分配地址池
# default-lease-time          dhcp默认时长
# filename                          pxe服务名称
# next-server                pxe服务器地址
# allow members            pxe最大值

vim /etc/xinetd.d/tftp
    disable                = no
# 将disable 改为no  改完之后重新瞬间守护进程

# 配置nginx

[root@node1 ~]# vim /etc/nginx/nginx.conf    添加一个server段

server {
        listen      80;
        server_name  192.168.8.35;

location / {
                root /mnt/cdrom;
                autoindex on;
        }

location /ks {
                alias /var/lib/tftpboot;
                autoindex on;
        }
}

[root@node1 cdrom]# cp /usr/share/syslinux/pxelinux.0 /var/lib/tftpboot/
[root@node1 cdrom]# cp /mnt/cdrom/isolinux/boot.msg /var/lib/tftpboot/
[root@node1 cdrom]# cp /mnt/cdrom/isolinux/vesamenu.c32 /var/lib/tftpboot/
[root@node1 cdrom]# cp /mnt/cdrom/isolinux/splash.png /var/lib/tftpboot/

[root@node1 ~]# cp /mnt/cdrom/images//pxeboot/{initrd.img,vmlinuz} /var/lib/tftpboot/
[root@node1 ~]# mkdir  /var/lib/tftpboot/pxelinux.cfg
[root@node1 ~]# cp /mnt/cdrom/isolinux/isolinux.cfg /var/lib/tftpboot/pxelinux.cfg/default

[root@node1 ~]#  vim /var/lib/tftpboot/pxelinux.cfg/default
        label linux Centos 7.2
          menu label ^Install Centos 7.2 system
          menu default
          kernel vmlinuz
          append initrd=initrd.img inst.ks=http://192.168.8.35/ks/ks.cfg quiet

[root@node1 ~]# systemctl restart  xinetd.service
[root@node1 ~]# systemctl restart  dhcpd.service
[root@node1 ~]# systemctl restart  nginx

# 挂载光盘镜像至/opt/cdrom以下的格式必须为[development]  否则将报错

# yum源 格式强制 否则会报软件无法加载错误

[development]
name=yum
baseurl=file:///mnt/cdrom/
enable=1
gpgcheck=0

[epel]
name=epel_rpm
baseurl=http://192.168.9.19:81/epel7/
enable=1
gpgcheck=0

# 安装kickstart软件包配置启动文件

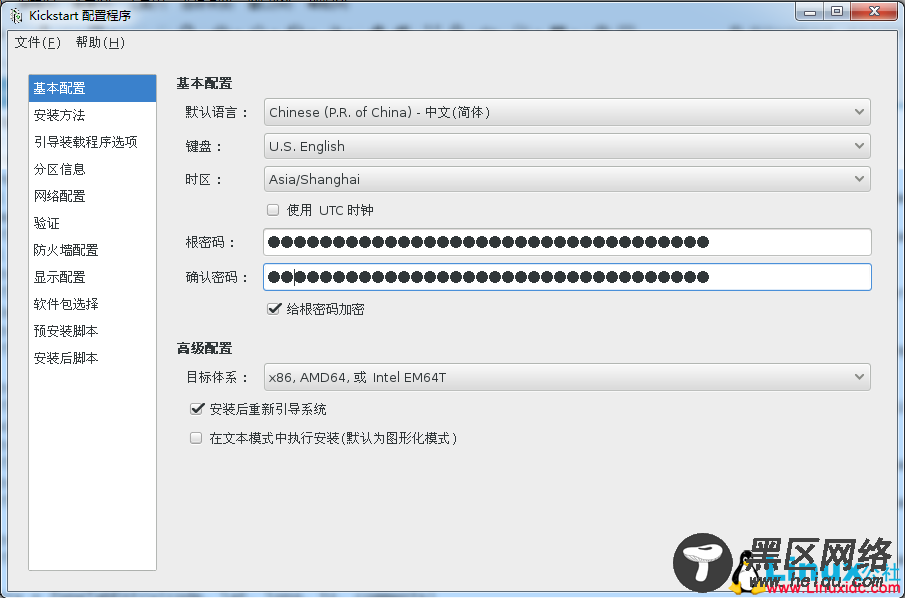

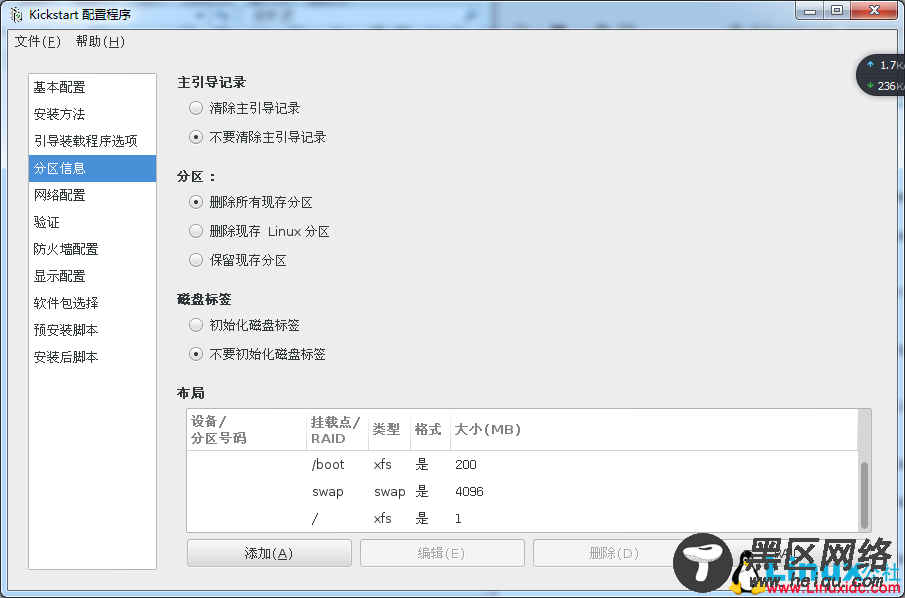

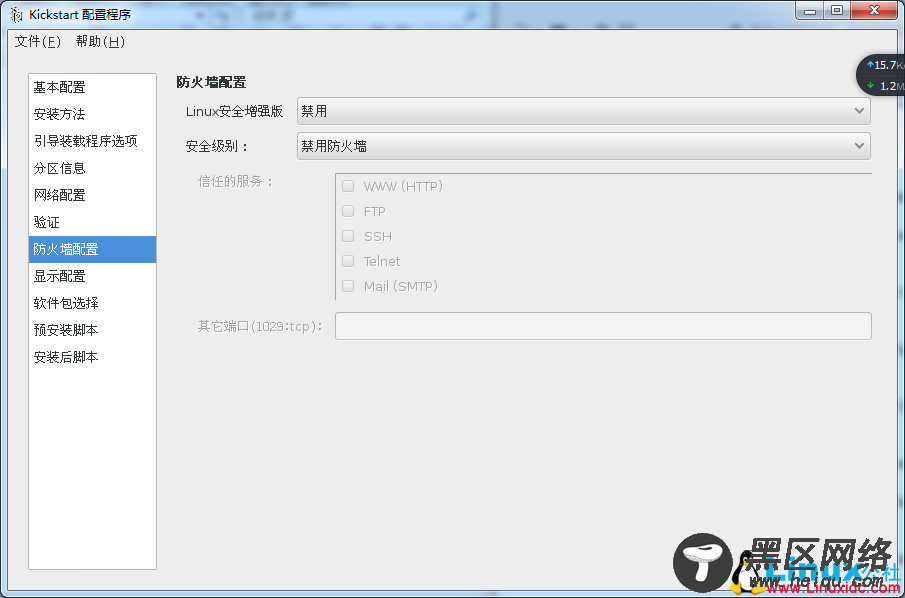

[root@node1 ~]# system-config-kickstart
