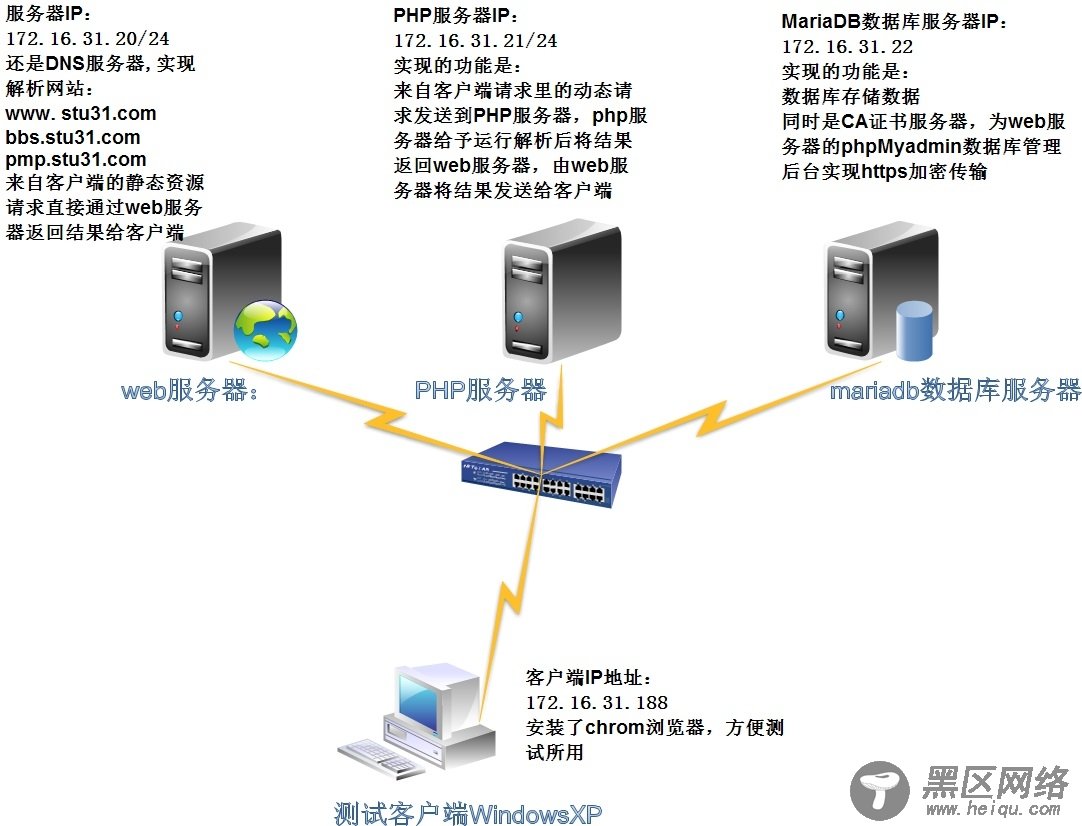

LAMP架构实现网站动静分离及流行博客论坛安装实

静分离能有效提升站点访问效率,此时apache工作在反向代理模式。PHP不在作为apache的模块。而是以独立服务器的方式运行。两者之间通过fcgi机制建立通讯。

LAMP架构实现网站动静分离及流行博客论坛安装实

Ubuntu 14.04 配置 LAMP+phpMyAdmin PHP(5.5.9)开发环境

Windows 7下硬盘安装Ubuntu 14.10图文教程

U盘安装Ubuntu 14.10

Ubuntu 14.10 正式发布下载

Ubuntu 14.04 LTS 如何升级到 Ubuntu 14.10

Ubuntu 14.10 下安装 LAMP 服务图文详解

.安装DNS服务实现域名解析

1.安装bind

[root@www ~]# yum install bind

2.配置named主配置文件

[root@www ~]# vim /etc/named.conf

//

// named.conf

//

// Provided by Red Hat bind package toconfigure the ISC BIND named(8) DNS

// server as a caching only nameserver (asa localhost DNS resolver only).

//

// See /usr/share/doc/bind*/sample/ forexample named configuration files.

//

options {

//     listen-on port 53 { 127.0.0.1; };

//     listen-on-v6 port 53 { ::1; };

directory      "/var/named";

dump-file      "/var/named/data/cache_dump.db";

statistics-file "/var/named/data/named_stats.txt";

memstatistics-file "/var/named/data/named_mem_stats.txt";

//     allow-query    { localhost; };

recursion yes;

//     dnssec-enable yes;

//     dnssec-validation yes;

//     dnssec-lookaside auto;

/* Path to ISC DLV key */

/*bindkeys-file "/etc/named.iscdlv.key";



       managed-keys-directory "/var/named/dynamic";

       */

};

logging {

channel default_debug {

file"data/named.run";

severity dynamic;

};

};

zone "." IN {

type hint;

file "named.ca";

};

include"/etc/named.rfc1912.zones";

include "/etc/named.root.key";

3.配置区域配置文件

1

2

3

4

5



[root@www ~]# vim /etc/named.rfc1912.zones

zone "stu31.com" IN {

       type master;

       file "stu31.com.zone";

};



4.配置区域解析库文件(正向)

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18



[root@www ~]# vim /var/named/stu31.com.zone

$TTL 600

$ORIGIN stu31.com.

@      IN      SOA     ns1.stu31.com.  root@stu31.com (

                        20141219

                        1M

                        2H

                        3D

                        6M )

@      IN      NS      ns1

       IN      MX   5 mail

ns1    IN      A       172.16.31.20

www    IN      A       172.16.31.20

bbs    IN      A       172.16.31.20

pmp    IN      A       172.16.31.20

mail   IN      A       172.16.31.20

pop3   IN      CNAME   mail

iamp4  IN      CNAME   mail



更改权限及属主属组

1

2



[root@www ~]# chmod 640/var/named/stu31.com.zone

[root@www ~]# chown :named/var/named/stu31.com.zone



5.检查语法

1

2

3

4



[root@www ~]# named-checkconf

[root@www ~]# named-checkzone stu31.com/var/named/stu31.com.zone

zone stu31.com/IN: loaded serial 20141219

OK



6.启动named服务

1

2

3



[root@www ~]# service named start

Generating /etc/rndc.key:                                  [  OK  ]

Starting named:                                           [  OK  ]



将本地网络的DNS服务器地址指向172.16.31.20

1

2



[root@www ~]# vim /etc/sysconfig/network-scripts/ifcfg-eth0

DNS=172.16.31.20



测试完全区域:

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20



[root@www ~]# dig -t axfr stu31.com @172.16.31.20



; <<>> DiG9.8.2rc1-RedHat-9.8.2-0.30.rc1.el6 <<>> -t axfr stu31.com@172.16.31.20

;; global options: +cmd

stu31.com.              600     IN     SOA     ns1.stu31.com.root\@stu31.com.stu31.com. 2014121903 60 7200 259200 360

stu31.com.              600     IN     NS      ns1.stu31.com.

stu31.com.              600     IN     MX      5 mail.stu31.com.

bbs.stu31.com.          600     IN     A       172.16.31.20

iamp4.stu31.com.        600    IN      CNAME   mail.stu31.com.

mail.stu31.com.         600    IN      A       172.16.31.20

ns1.stu31.com.          600     IN     A       172.16.31.20

pmp.stu31.com.          600     IN     A       172.16.31.20

pop3.stu31.com.         600    IN      CNAME   mail.stu31.com.

web.stu31.com.          600     IN     A       172.16.31.20

          600     IN     A       172.16.31.20

stu31.com.              600     IN     SOA     ns1.stu31.com.root\@stu31.com.stu31.com. 2014121903 60 7200 259200 360

;; Query time: 2 msec

;; SERVER: 172.16.31.20#53(172.16.31.20)

;; WHEN: Mon Dec 22 08:31:22 2014

;; XFR size: 12 records (messages 1, bytes304)



.源码安装httpd-2.4.10

1.安装aprapr-util

1

2

3

4



[root@www ~]# tar xf apr-1.5.0.tar.bz2

[root@www ~]# cd apr-1.5.0

[root@www apr-1.5.0]# ./configure--prefix=/usr/local/apr

[root@www apr-1.5.0]# make && makeinstall



1

2

3

4

5



[root@www apr-1.5.0]# cd ..

[root@www ~]# tar xf apr-util-1.5.3.tar.bz2

[root@www ~]# cd apr-util-1.5.3

[root@www apr-util-1.5.3]# ./configure--prefix=/usr/local/apr-util --with-apr=/usr/local/apr

[root@www apr-util-1.5.3]# make &&make install



设置aprapr-util成为系统环境变量

1

2



[root@www apr-util-1.5.3]# vim/etc/profile.d/apr.sh

exportPATH=/usr/local/apr/bin:/usr/local/apr-util/bin:$PATH



2.源码安装httpd

1

2

3



[root@www ~]# tar xf httpd-2.4.10.tar.bz2

[root@www ~]# cd httpd-2.4.10

[root@www httpd-2.4.10]# ./configure--prefix=/usr/local/apache --sysconfdir=/etc/httpd24 --enable-so --enable-ssl --enable-rewrite --with-z --with-pcre --with-apr=/usr/local/apr --with-apr-util=/usr/local/apr-util --enable-modules=most --enable-mpms-shared=all --with-mpm=event



编译参数注释

--prefix=        #指定安装到/usr/local/apache路径下

--sysconfdir=    #指定配置文件安装到/etc/httpd24

--enable=so      #支持动态装卸载模块

--enable-ssl    #支持https加密传输

--enable-rewrite #支持URL重写

--enable-cgi    #支持cgi格式脚本

--with-z         #支持zlib压缩

--with-pcre      #支持扩展正则表达式

--with-apr      #指定apr安装位置

--with-apr-util  #指定apr-util安装位置

--enable-mpms-shared  #mpm三种模式以共享模块的方式编译进去

--enable-mpm    #httpd启动是默认是开启event模式

--enable-rewrite #支持反向代理

安装:

1



[root@www httpd-2.4.10]#make &&make install



3.创建httpd服务脚本(因为系统已安装httpd,我们需要安装到其他路径,服务脚本也一样要更改名称,与原httpd服务区分)

[root@www httpd-2.4.10]# cp /etc/rc.d/init.d/httpd httpd24

[root@www httpd-2.4.10]# vim httpd24

#!/bin/bash

#

# httpd        Startup script for the Apache HTTPServer

#

# chkconfig: - 85 15

# description: The Apache HTTP Server is anefficient and extensible  \

#              server implementing the currentHTTP standards.

# processname: httpd

# config: /etc/httpd/conf/httpd.conf

# config: /etc/sysconfig/httpd

# pidfile: /var/run/httpd/httpd.pid

#

### BEGIN INIT INFO

# Provides: httpd

# Required-Start: $local_fs $remote_fs$network $named

# Required-Stop: $local_fs $remote_fs$network

# Should-Start: distcache

# Short-Description: start and stop ApacheHTTP Server

# Description: The Apache HTTP Server is anextensible server

# implementing the current HTTP standards.

### END INIT INFO

# Source function library.

. /etc/rc.d/init.d/functions

#if [ -f /etc/sysconfig/httpd ]; then

#       . /etc/sysconfig/httpd

#fi

# Start httpd in the C locale by default.

HTTPD_LANG=${HTTPD_LANG-"C"}

# This will prevent initlog from swallowingup a pass-phrase prompt if

# mod_ssl needs a pass-phrase from theuser.

INITLOG_ARGS=""

# Set HTTPD=/usr/sbin/httpd.worker in/etc/sysconfig/httpd to use a server

# with the thread-based "worker"MPM; BE WARNED that some modules may not

# work correctly with a thread-based MPM;notably PHP will refuse to start.

# Path to the apachectl script, serverbinary, and short-form for messages.

apachectl=/usr/local/apache/bin/apachectl

httpd=${HTTPD-/usr/local/apache/bin/httpd}

prog=httpd

pidfile=${PIDFILE-/var/run/httpd/httpd.pid}

lockfile=${LOCKFILE-/var/lock/subsys/httpd}

RETVAL=0

STOP_TIMEOUT=${STOP_TIMEOUT-10}

# The semantics of these two functionsdiffer from the way apachectl does

# things -- attempting to start whilerunning is a failure, and shutdown

# when not running is also a failure.  So we just do it the way init scripts

# are expected to behave here.

start() {

echo -n $"Starting $prog: "

LANG=$HTTPD_LANG daemon --pidfile=${pidfile} $httpd $OPTIONS

RETVAL=$?

echo

[ $RETVAL = 0 ] && touch ${lockfile}

return $RETVAL

}

# When stopping httpd, a delay (of default10 second) is required

# before SIGKILLing the httpd parent; thisgives enough time for the

# httpd parent to SIGKILL any errantchildren.

stop() {

echo -n $"Stopping $prog: "

killproc -p ${pidfile} -d ${STOP_TIMEOUT} $httpd

RETVAL=$?

echo

[ $RETVAL = 0 ] && rm -f ${lockfile} ${pidfile}

}

reload() {

echo -n $"Reloading $prog: "

if ! LANG=$HTTPD_LANG $httpd $OPTIONS -t >&/dev/null; then

RETVAL=6

echo $"not reloading due to configuration syntax error"

failure $"not reloading $httpd due to configuration syntaxerror"

else

# Force LSB behaviour from killproc

LSB=1 killproc -p ${pidfile} $httpd -HUP

RETVAL=$?

if [ $RETVAL -eq 7 ]; then

failure $"httpd shutdown"

fi

fi

echo

}

# See how we were called.

case "$1" in

start)

start

;;

stop)

stop

;;

status)

status -p ${pidfile} $httpd

RETVAL=$?

;;

restart)

stop

start

;;

condrestart|try-restart)

if status -p ${pidfile} $httpd >&/dev/null; then

stop

start

fi

;;

force-reload|reload)

reload

;;

graceful|help|configtest|fullstatus)

$apachectl $@

RETVAL=$?

;;

*)

echo $"Usage: $prog{start|stop|restart|condrestart|try-restart|force-reload|reload|status|fullstatus|graceful|help|configtest}"

RETVAL=2

esac

exit $RETVAL

复制脚本到服务脚本存放路径:

[root@www httpd-2.4.10]# cp httpd24  /etc/rc.d/init.d/httpd24

httpd24服务加入系统启动:

1

2

3



[root@www httpd-2.4.10]# chkconfig --listhttpd24

service httpd24 supports chkconfig, but isnot referenced in any runlevel (run 'chkconfig --add httpd24')

[root@www httpd-2.4.10]# chkconfig --addhttpd24



4.启动httpd24服务

1

2



[root@www httpd-2.4.10]# service httpd24start

Starting httpd:                                           [  OK  ]



查看服务监听端口:

1

2



[root@www ~]# ss -tunl |grep 80

tcp   LISTEN     0      128                   :::80                   :::*



测试:

1

2



[root@www ~]# curl

<html><body><h1>Itworks!</h1></body></html>



httpd-2.4.10安装完毕

MySQL主机本地网络的DNS服务器地址指向172.16.31.20

1

2



[root@mysql ~]# vim /etc/sysconfig/network-scripts/ifcfg-eth0
