Zabbix利用Orabbix监控Oracle(2)

日期：2020-06-02 栏目：程序人生浏览：次

oracle主机上操作(这步可以省略，只要知道数据库实例，账号，密码)
下面是oracle 11g的（12c 语法不一样）授权语句如下，创用户，授权，这些操作，我都是在oracle数据库的sqlplus下执行的

[oracle@oracle ~]$ sqlplus / as sysdba

SQL*Plus: Release 11.2.0.3.0 Production on Wed Sep 7 18:01:54 2016

Copyright (c) 1982, 2011, Oracle. All rights reserved.

Connected to:

Oracle Database 11g Enterprise Edition Release 11.2.0.3.0 - 64bit Production

With the Partitioning, OLAP, Data Mining and Real Application Testing options

SQL>

CREATE USER ZABBIX IDENTIFIED BY zabbix DEFAULT TABLESPACE SYSTEM TEMPORARY TABLESPACE TEMP PROFILE DEFAULT ACCOUNT UNLOCK;

GRANT CONNECT TO ZABBIX;

GRANT RESOURCE TO ZABBIX;

ALTER USER ZABBIX DEFAULT ROLE ALL;

GRANT SELECT ANY TABLE TO ZABBIX;

GRANT CREATE SESSION TO ZABBIX;

GRANT SELECT ANY DICTIONARY TO ZABBIX;

GRANT UNLIMITED TABLESPACE TO ZABBIX;

GRANT SELECT ANY DICTIONARY TO ZABBIX;

GRANT SELECT ON V_$SESSION TO ZABBIX;

GRANT SELECT ON V_$SYSTEM_EVENT TO ZABBIX;

GRANT SELECT ON V_$EVENT_NAME TO ZABBIX;

GRANT SELECT ON V_$RECOVERY_FILE_DEST TO ZABBIX;

启动orabbix

[root@zabbix orabbix]# cp init.d/orabbix /etc/init.d/

[root@zabbix orabbix]# ll /etc/init.d/orabbix

-rwxr-xr-x 1 root root 1693 Sep 14 21:40 /etc/init.d/orabbix

[root@zabbix orabbix]# /etc/init.d/orabbix start

Starting Orabbix service:

报错的话，检查配置文件，数据库地址，端口，实例名，账号，密码是否正确，需要验证对于不懂oracle的怎么办，搜命令呗，我也是一路过来，各种坑~~~~~

然后里面看日志

[root@zabbix orabbix]# tailf /opt/orabbix/logs/orabbix.log

[main] INFO Orabbix - --------- on Database -> orcl

[pool-1-thread-1] WARN Orabbix - Error while executing ->dbversion- on database ->172.20.10.183-oracle- Exception received ORA-24247: network access denied by access control list (ACL)

ORA-06512: at "SYS.UTL_INADDR", line 4

ORA-06512: at "SYS.UTL_INADDR", line 35

ORA-06512: at line 1

出现这些日志，不影响后面的操作，如果你是完美主义者，满足你

在oracle数据库的sqlplus下执行下面三条命令

exec dbms_network_acl_admin.create_acl(acl => 'resolve.xml',description =>'resolve acl', principal =>'ZABBIX', is_grant => true, privilege =>'resolve');

exec dbms_network_acl_admin.assign_acl(acl=> 'resolve.xml', host =>'*');

commit;

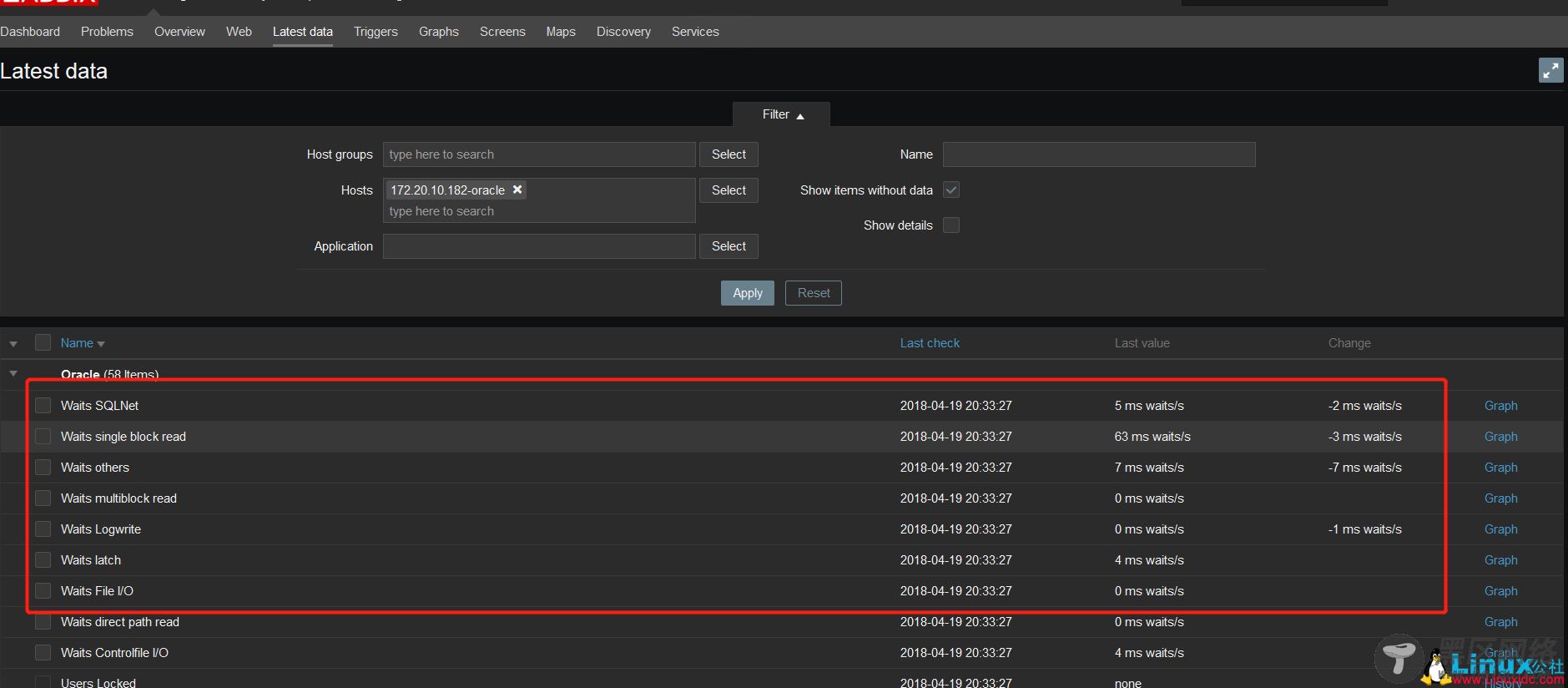

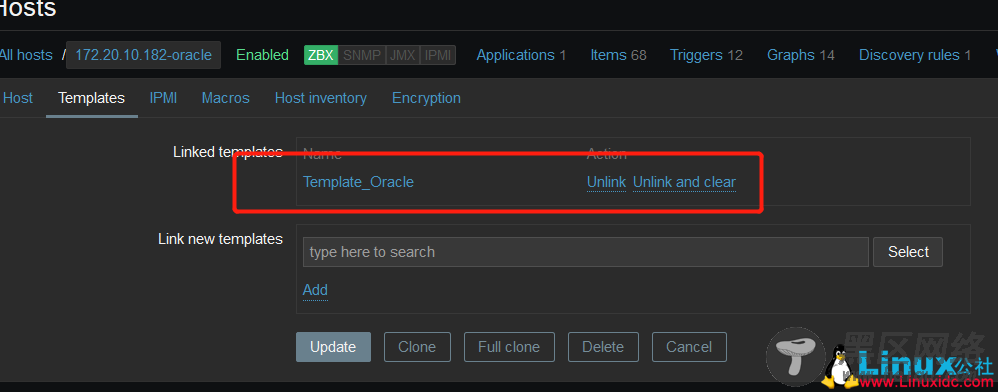

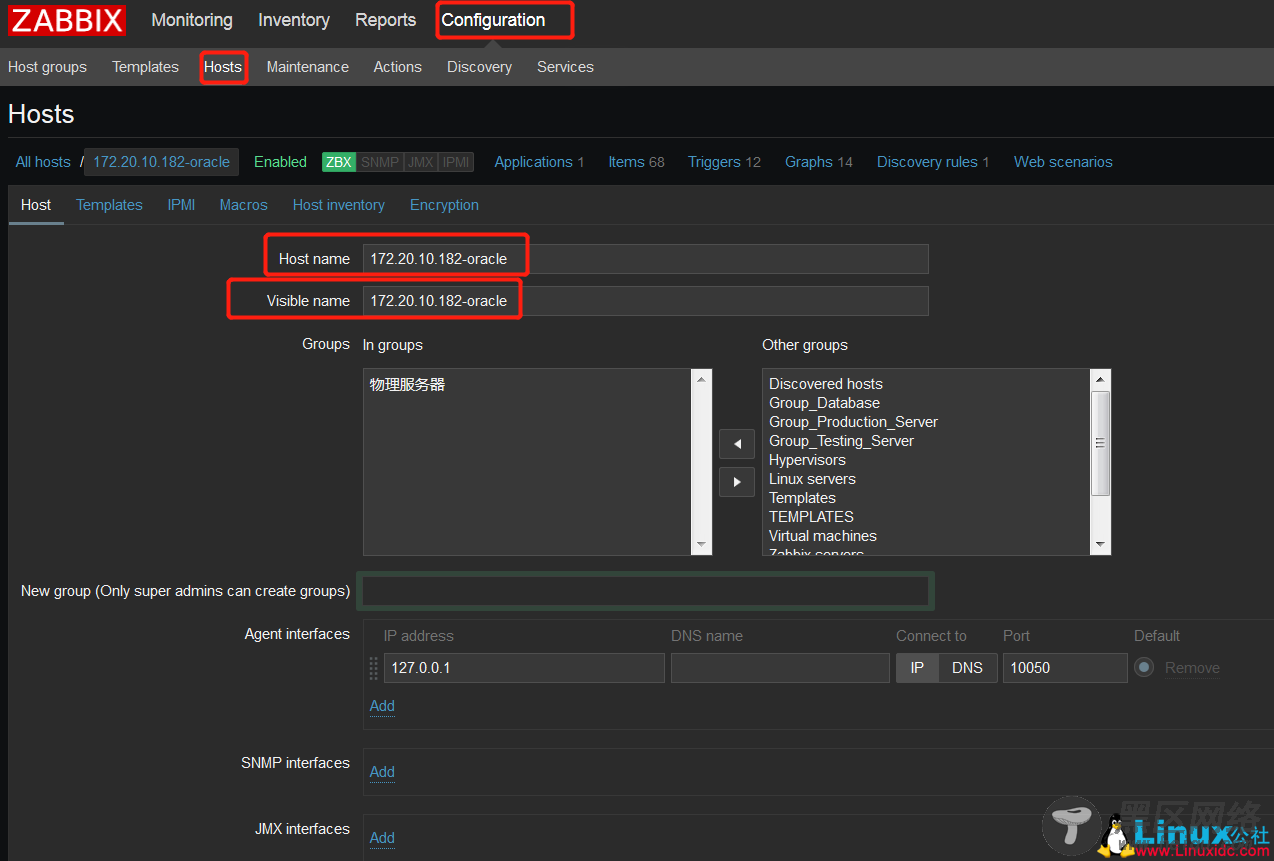

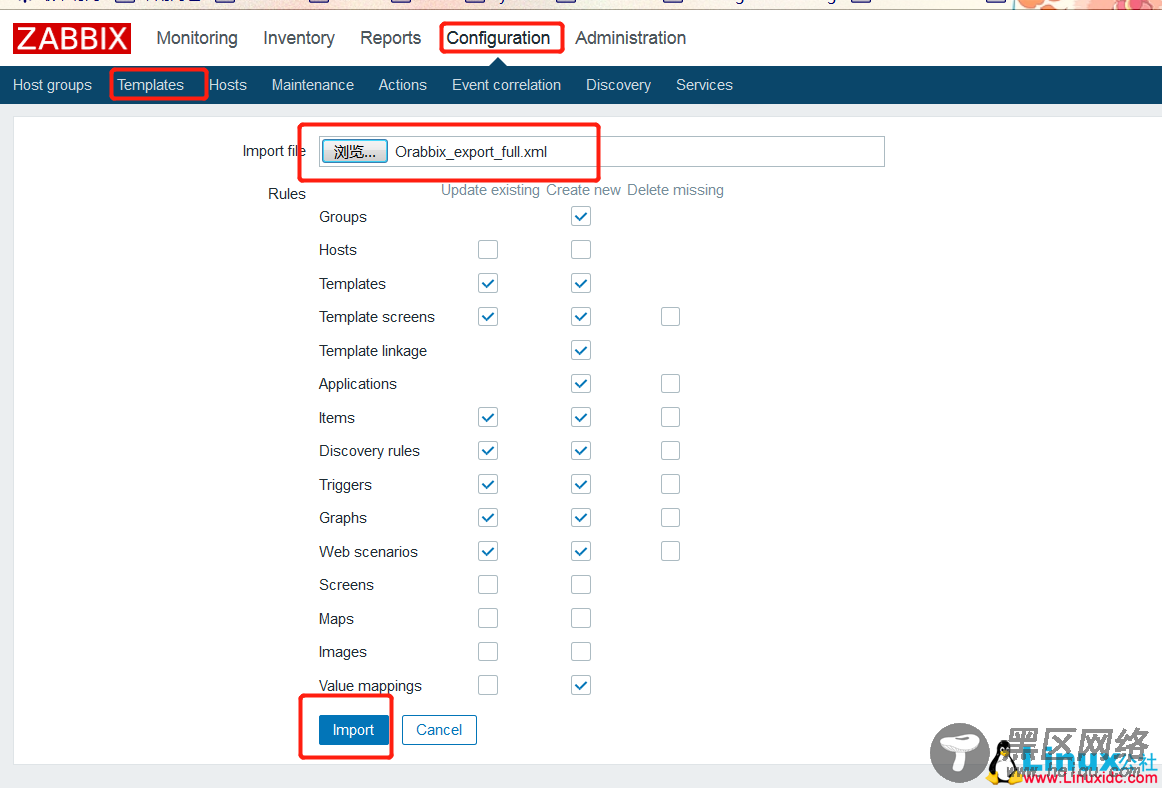

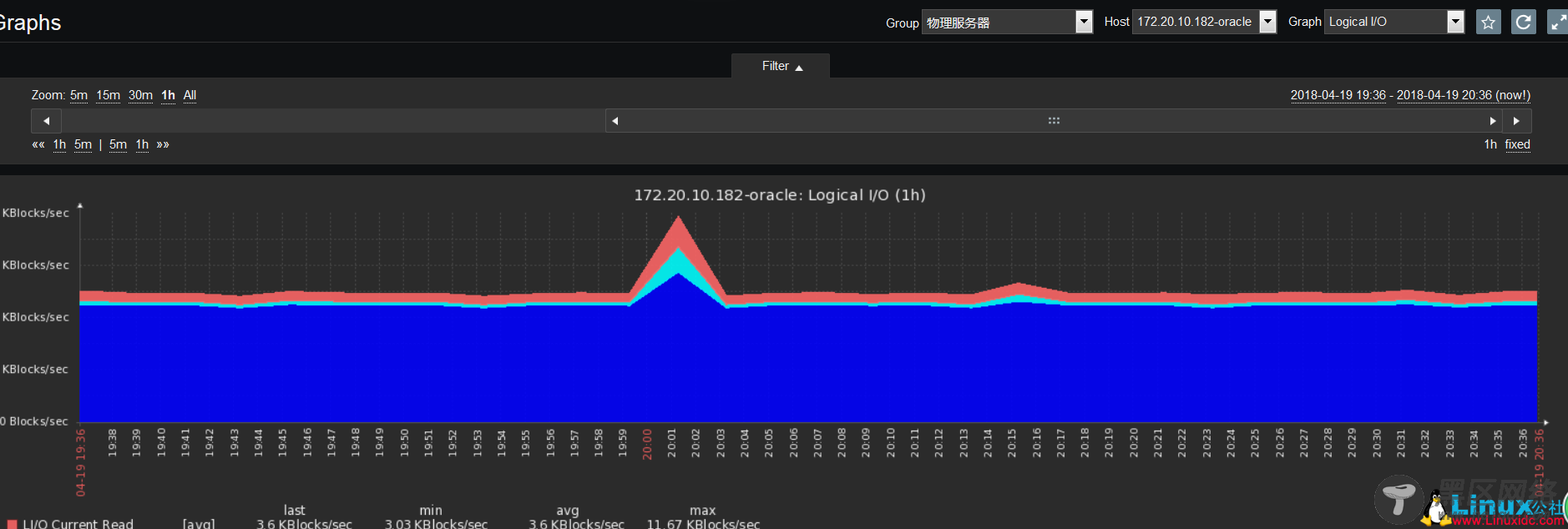

到此，安装配置完成，则通过web页面访问监控界面直接导入模板即可

模版放置在/opt/orabbix/template下
Orabbix_export_full.xml #只需要导入这个一个模板就好
