微信小程序实现卡片左右滑动效果的示例代码

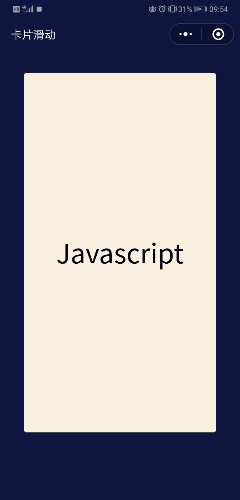

快放假了,人狠话不多,啥也不说了。先看效果图。

微信小程序实现卡片左右滑动效果的示例代码



思路

从上面的效果图来看,基本的需求包括:

左右滑动到一定的距离,就向相应的方向移动一个卡片的位置。

卡片滑动的时候有一定的加速度。

如果滑动距离太小,则依旧停留在当前卡片,而且有一个回弹的效果。

看到这样的需求,不熟悉小程序的同学,可能感觉有点麻烦。首先需要计算卡片的位置,然后再设置滚动条的位置,使其滚动到指定的位置,而且在滚动的过程中,加上一点加速度...

然而,当你查看了小程序的开发文档之后,就会发现小程序已经帮我们提前写好了,我们只要做相关的设置就行。

实现

滚动视图

左右滑动,其实就是水平方向上的滚动。小程序给我们提供了scroll-view组件,我们可以通过设置scroll-x属性使其横向滚动。

关键属性

在scroll-view组件属性列表中,我们发现了两个关键的属性:

属性 类型 说明
scroll-into-view   string   值应为某子元素id(id不能以数字开头)。设置哪个方向可滚动,则在哪个方向滚动到该元素
scroll-with-animation   boolean   在设置滚动条位置时使用动画过渡

有了以上这两个属性,我们就很好办事了。只要让每个卡片独占一页,同时设置元素的ID,就可以很简单的实现翻页效果了。

左滑右滑判断

这里,我们通过触摸的开始位置和结束位置来决定滑动方向。

微信小程序给我们提供了touchstart以及touchend事件,我们可以通过判断开始和结束的时候的横坐标来判断方向。

代码实现

card.wxml

<scroll-view scroll-x scroll-with-animation scroll-into-view="{{toView}}" bindtouchstart="touchStart" bindtouchend="touchEnd"> <view wx:for="{{list}}" wx:key="{{item}}"> <view> <text>{{item}}</text> </view> </view> </scroll-view>

card.wxss

page{ overflow: hidden; background: #0D1740; } .scroll-box{ white-space: nowrap; height: 105vh; } .card-box{ display: inline-block; } .card{ display: flex; justify-content: center; align-items: center; box-sizing: border-box; height: 80vh; width: 80vw; margin: 5vh 10vw; font-size: 40px; background: #F8F2DC; border-radius: 4px; }

card.js

const DEFAULT_PAGE = 0; Page({ startPageX: 0, currentView: DEFAULT_PAGE, data: { toView: `card_${DEFAULT_PAGE}`, list: ['Javascript', 'Typescript', 'Java', 'PHP', 'Go'] }, touchStart(e) { this.startPageX = e.changedTouches[0].pageX; }, touchEnd(e) { const moveX = e.changedTouches[0].pageX - this.startPageX; const maxPage = this.data.list.length - 1; if (Math.abs(moveX) >= 150){ if (moveX > 0) { this.currentView = this.currentView !== 0 ? this.currentView - 1 : 0; } else { this.currentView = this.currentView !== maxPage ? this.currentView + 1 : maxPage; } } this.setData({ toView: `card_${this.currentView}` }); } })

card.json

{ "navigationBarTitleText": "卡片滑动", "backgroundColor": "#0D1740", "navigationBarBackgroundColor": "#0D1740", "navigationBarTextStyle": "white" }
