Kubernetes v1.12/v1.13 二进制部署集群（HTTPS+RBAC）(5)

创建kubelet配置文件：

# cat /opt/kubernetes/cfg/kubelet KUBELET_OPTS="--logtostderr=true \ --v=4 \ --hostname-override=192.168.31.65 \ --kubeconfig=/opt/kubernetes/cfg/kubelet.kubeconfig \ --bootstrap-kubeconfig=/opt/kubernetes/cfg/bootstrap.kubeconfig \ --config=/opt/kubernetes/cfg/kubelet.config \ --cert-dir=/opt/kubernetes/ssl \ --pod-infra-container-image=registry.cn-hangzhou.aliyuncs.com/google-containers/pause-amd64:3.0"

参数说明：

--hostname-override 在集群中显示的主机名

--kubeconfig 指定kubeconfig文件位置，会自动生成

--bootstrap-kubeconfig 指定刚才生成的bootstrap.kubeconfig文件

--cert-dir 颁发证书存放位置

--pod-infra-container-image 管理Pod网络的镜像

其中/opt/kubernetes/cfg/kubelet.config配置文件如下：

kind: KubeletConfiguration apiVersion: kubelet.config.k8s.io/v1beta1 address: 192.168.31.65 port: 10250 readOnlyPort: 10255 cgroupDriver: cgroupfs clusterDNS: ["10.0.0.2"] clusterDomain: cluster.local. failSwapOn: false authentication: anonymous: enabled: true

systemd管理kubelet组件：

# cat /usr/lib/systemd/system/kubelet.service [Unit] Description=Kubernetes Kubelet After=docker.service Requires=docker.service [Service] EnvironmentFile=/opt/kubernetes/cfg/kubelet ExecStart=/opt/kubernetes/bin/kubelet $KUBELET_OPTS Restart=on-failure KillMode=process [Install] WantedBy=multi-user.target

启动：

# systemctl daemon-reload # systemctl enable kubelet # systemctl restart kubelet

在Master审批Node加入集群：

启动后还没加入到集群中，需要手动允许该节点才可以。
在Master节点查看请求签名的Node：

# kubectl get csr # kubectl certificate approve XXXXID # kubectl get node 5.3 部署kube-proxy组件

创建kube-proxy配置文件：

# cat /opt/kubernetes/cfg/kube-proxy KUBE_PROXY_OPTS="--logtostderr=true \ --v=4 \ --hostname-override=192.168.31.65 \ --cluster-cidr=10.0.0.0/24 \ --kubeconfig=/opt/kubernetes/cfg/kube-proxy.kubeconfig"

systemd管理kube-proxy组件：

# cat /usr/lib/systemd/system/kube-proxy.service [Unit] Description=Kubernetes Proxy After=network.target [Service] EnvironmentFile=-/opt/kubernetes/cfg/kube-proxy ExecStart=/opt/kubernetes/bin/kube-proxy $KUBE_PROXY_OPTS Restart=on-failure [Install] WantedBy=multi-user.target

启动：

# systemctl daemon-reload # systemctl enable kube-proxy # systemctl restart kube-proxy

Node2部署方式一样。

6. 查看集群状态 # kubectl get node NAME STATUS ROLES AGE VERSION 192.168.31.65 Ready <none> 1d v1.12.0 192.168.31.66 Ready <none> 1d v1.12.0 # kubectl get cs NAME STATUS MESSAGE ERROR controller-manager Healthy ok scheduler Healthy ok etcd-2 Healthy {"health":"true"} etcd-1 Healthy {"health":"true"} etcd-0 Healthy {"health":"true"} 7. 运行一个测试示例

创建一个Nginx Web，测试集群是否正常工作：

# kubectl run nginx --image=nginx --replicas=3 # kubectl expose deployment nginx --port=88 --target-port=80 --type=NodePort

查看Pod，Service：

# kubectl get pods NAME READY STATUS RESTARTS AGE nginx-64f497f8fd-fjgt2 1/1 Running 3 1d nginx-64f497f8fd-gmstq 1/1 Running 3 1d nginx-64f497f8fd-q6wk9 1/1 Running 3 1d # kubectl get svc NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE kubernetes ClusterIP 10.0.0.1 <none> 443/TCP 28d nginx NodePort 10.0.0.175 <none> 88:38696/TCP 28d

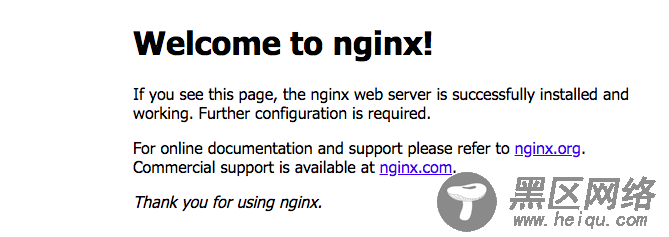

访问集群中部署的Nginx，打开浏览器输入：:38696
