实现物体的旋转、跳动以及场景阴影的开启与优化
本程序将创建一个场景，并实现物体的动画效果

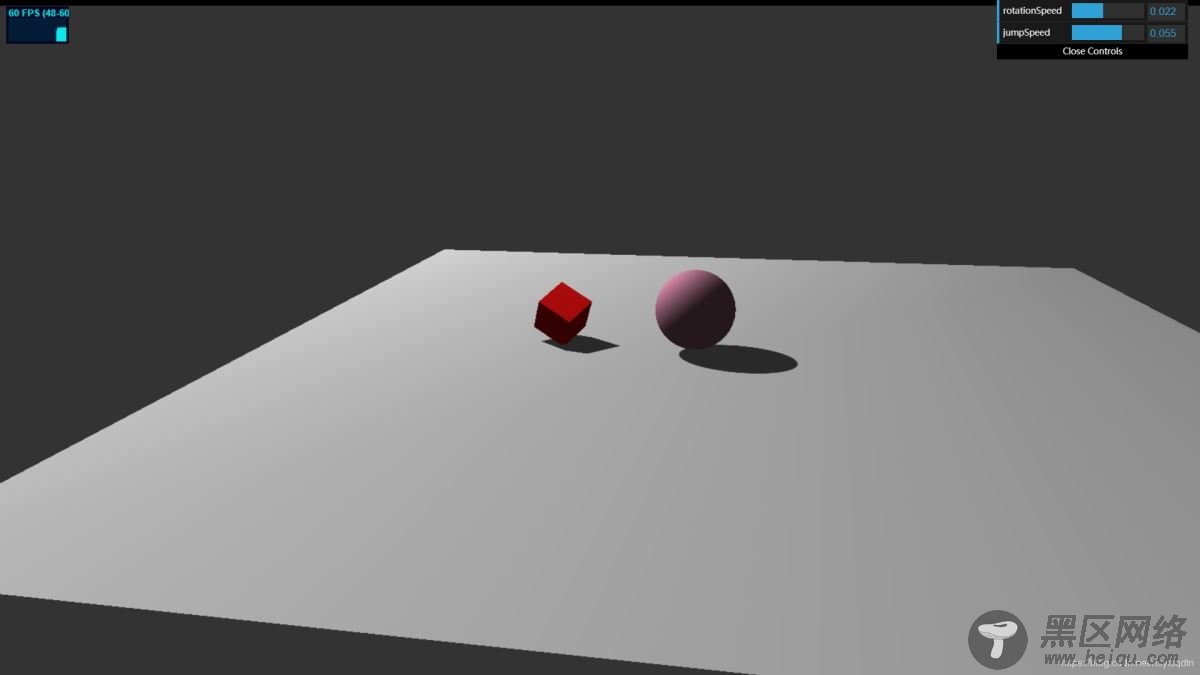

运行的结果如图：
运行结果
完整代码如下：
<!DOCTYPE html> <html lang="en"> <head> <meta charset="UTF-8"> <title>Three.js</title> <script src=""></script> <script src=""></script> <script src=""></script> <script src=""></script> <script src=""></script> <style type="text/css"> div#canvas-frame { border: none; cursor: pointer; width: 100%; height: 850px; background-color: #333333; } </style> </head> <body> <div></div> <script> //控制面板中需要的两个数据 let control = new function () { this.rotationSpeed = 0.01; this.jumpSpeed = 0.03; }; let renderer, camera, scene; let controller; let width,height; //初始化渲染器 function initThree() { width = document.getElementById('canvas-frame').clientWidth; height = document.getElementById('canvas-frame').clientHeight; renderer = new THREE.WebGLRenderer({ antialias: true });//定义渲染器 renderer.setSize(width, height);//设置渲染的宽度和高度 document.getElementById("canvas-frame").appendChild(renderer.domElement);//将渲染器加在html中的div里面 renderer.setClearColor(0x333333, 1.0);//渲染的颜色设置 renderer.shadowMapEnabled = true;//开启阴影，默认是关闭的，太影响性能 renderer.shadowMapType = THREE.PCFSoftShadowMap;//阴影的一个类型，可以不设置对比看效果 } //初始化摄像机 function initCamera() { camera = new THREE.PerspectiveCamera(45, width / height, 1, 10000);//perspective是透视摄像机，这种摄像机看上去画面有3D效果 //摄像机的位置 camera.position.x = 50; camera.position.y = 50; camera.position.z = 50; camera.up.x = 0; camera.up.y = 1;//摄像机的上方向是Y轴 camera.up.z = 0; camera.lookAt(0, 0, 0);//摄像机对焦的位置 //这三个参数共同作用才能决定画面 } //初始化场景 function initScene() { scene = new THREE.Scene(); } //摄像机的控制，可以采用鼠标拖动来控制视野 function cameraControl() { controller = new THREE.OrbitControls(camera, renderer.domElement); controller.target = new THREE.Vector3(0, 0, 0); } //一个很方便的控制面板，方便更改程序的参数 function datGUI() { let gui = new dat.GUI(); //可以设置可以调动的范围 gui.add(control, "rotationSpeed", 0, 0.05); gui.add(control, "jumpSpeed", 0, 0.08); } //初始化灯光 function initLight() { let light = new THREE.SpotLight(0xffffff, 1.0, 0);//点光源 light.position.set(-40, 60, -10); light.castShadow = true;//开启阴影 light.shadowMapWidth = 8192;//阴影的分辨率 light.shadowMapHeight = 8192; scene.add(light); light = new THREE.AmbientLight(0xffffff, 0.2);//环境光，如果不加，点光源照不到的地方就完全是黑色的 scene.add(light); } let cube; let sphere; //初始化物体 function initObject() { //定义了一个地面 let planeGeometry = new THREE.PlaneGeometry(100, 100, 1, 1); let planeMaterial = new THREE.MeshLambertMaterial({ color: 0xcccccc, }); let plane = new THREE.Mesh(planeGeometry, planeMaterial); plane.rotation.x = -0.5 * Math.PI; plane.position.x = 15; plane.receiveShadow = true;//开启地面的接收阴影 scene.add(plane);//添加到场景中 //定义了一个方块 let cubeGeometry = new THREE.BoxGeometry(4, 4, 4); let cubeMaterial = new THREE.MeshLambertMaterial({ color: 0xff1111, }); cube = new THREE.Mesh(cubeGeometry, cubeMaterial); cube.position.x = -4; cube.position.y = 3; cube.position.z = 0; cube.castShadow = true;//开启阴影 scene.add(cube); //定义了一个球体 let sphereGeometry = new THREE.SphereGeometry(4, 100, 100); let sphereMaterial = new THREE.MeshLambertMaterial({ color: 0xba7890, }); sphere = new THREE.Mesh(sphereGeometry, sphereMaterial); sphere.position.x = 20; sphere.position.y = 4; sphere.position.z = 2; sphere.castShadow = true;//开启阴影 scene.add(sphere); } //方块的自动旋转 function cubeRotation() { cube.rotation.x += control.rotationSpeed; cube.rotation.y += control.rotationSpeed; cube.rotation.z += control.rotationSpeed; } let step = 0; //球体的抛物线运动轨迹 function boxJump() { step += control.jumpSpeed; sphere.position.x = 20 + 10 * (Math.cos(step)); sphere.position.y = 4 + 10 * (Math.abs(Math.sin(step))); } //定义的一个功能文件 function initSetting() { loadAutoScreen(camera,renderer); loadFullScreen(); loadStats(); } //主函数 function threeStart() { initThree(); initCamera(); initScene(); initLight(); initObject(); cameraControl(); datGUI(); initSetting(); animation(); } //动画 function animation() { cubeRotation();//方块旋转函数 boxJump();//球体运动函数 stats.update();//更新性能检测器 renderer.clear(); renderer.render(scene, camera);//开始渲染 requestAnimationFrame(animation);//重复执行此函数，不停的渲染，达到动画的效果 } </script> </body> </html>
