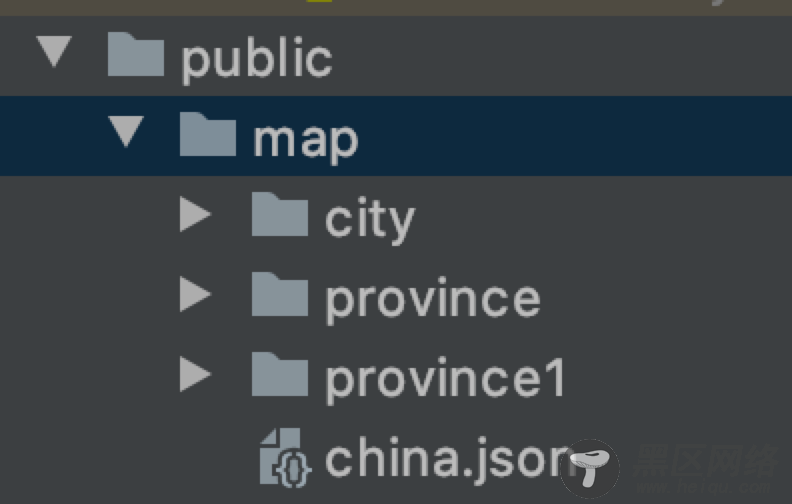

在调用省市地图时本人采用的是将地图信息的json存放在了本地，这是由于本人的项目中很多地市的行政区划很多需要变动，这也是放弃高德地图的原因之一。json文件放在了public文件目录下，如下图：
里面有一些自己没用到的json数据本人进行了删除，关于中国详细的json数据大家可以去https://datav.aliyun.com/tools/atlas/下载，内容由高德开放平台提供。
高德地图chinaGaode.vue代码如下：
<template> <div> <el-button type="primary" size="mini" @click="back">返回</el-button> <div > <map-range @change="search"></map-range> </div> <div> <div></div> </div> </div> </template> <script> import mapRange from "./mapRange"; export default { name: "chinaGaode", components: { mapRange }, data() { return { provinceSelect: null, citySelect: null, districtSelect: null, areaName: '中国', geoJsonData: '', echartsMap: null, map: null, district: null, polygons: [], areaCode: 100000, opts: {}, areaData: {}, mapData: [], deepTree:[], } }, mounted() { this.provinceSelect = document.getElementById('province'); this.citySelect = document.getElementById('city'); this.districtSelect = document.getElementById('district'); this.deepTree = [{mapData: this.mapData,code: 100000}]; this.echartsMap = this.$echarts.init(document.getElementById('map')); this.echartsMap.on('click', this.echartsMapClick); this.map = new AMap.Map('container', { resizeEnable: true, center: [116.30946, 39.937629], zoom: 3 }); this.opts = { subdistrict: 1, //返回下一级行政区 showbiz: false //最后一级返回街道信息 }; this.district = new AMap.DistrictSearch(this.opts);//注意：需要使用插件同步下发功能才能这样直接使用 this.district.search('中国', (status, result) => { if (status == 'complete') { this.getData(result.districtList[0], '', 100000); } }); }, methods: { //地图点击事件 echartsMapClick(params) { if (params.data.level == 'street') return; //清除地图上所有覆盖物 for (var i = 0, l = this.polygons.length; i < l; i++) { this.polygons[i].setMap(null); } this.areaName = params.data.name; this.areaCode = params.data.areaCode; this.district.setLevel(params.data.level); //行政区级别 this.district.setExtensions('all'); //行政区查询 //按照adcode进行查询可以保证数据返回的唯一性 this.district.search(this.areaCode, (status, result) => { if (status === 'complete') { this.deepTree.push({mapData: this.mapData,code: params.data.areaCode}); this.getData(result.districtList[0], params.data.level, this.areaCode); } }); this.$emit('map-change', params.data); }, loadMapData(areaCode) { AMapUI.loadUI(['geo/DistrictExplorer'], DistrictExplorer => { //创建一个实例 var districtExplorer = window.districtExplorer = new DistrictExplorer({ eventSupport: true, //打开事件支持 map: this.map }); districtExplorer.loadAreaNode(areaCode, (error, areaNode) => { if (error) { console.error(error); return; } let mapJson = {}; mapJson.type = "FeatureCollection"; mapJson.features = areaNode.getSubFeatures(); this.loadMap(this.areaName, mapJson); this.geoJsonData = mapJson; }); }); }, loadMap(mapName, data) { if (data) { this.$echarts.registerMap(mapName, data); var option = { visualMap: { type: 'piecewise', pieces: [ {max: 1, label: '审核完成', color: '#2c9a42'}, {min: -1, max: 1, label: '未完成', color: '#d08a00'}, // {min: 60, label: '危险', color: '#c23c33'}, ], color: '#fff', textStyle: { color: '#fff', }, visibility: 'off', top:50, left:30, }, series: [{ name: '数据名称', type: 'map', roam: false, mapType: mapName, selectedMode: 'single', showLegendSymbol: false, visibility: 'off', itemStyle: { normal: { color: '#ccc', areaColor: '#fff', borderColor: '#fff', borderWidth: 0.5, label: { show: true, textStyle: { color: "rgb(249, 249, 249)", fontSize: '1rem' } } }, emphasis: { areaColor: false, borderColor: '#fff', areaStyle: { color: '#fff' }, label: { show: true, textStyle: { color: "rgb(249, 249, 249)" } } } }, data: this.mapData, }] }; this.echartsMap.setOption(option); } }, getData(data, level, adcode) { var bounds = data.boundaries; if (bounds) { for (var i = 0, l = bounds.length; i < l; i++) { var polygon = new AMap.Polygon({ map: this.map, strokeWeight: 1, strokeColor: '#0091ea', fillColor: '#80d8ff', fillOpacity: 0.2, path: bounds[i] }); this.polygons.push(polygon); } this.map.setFitView();//地图自适应 } //清空下一级别的下拉列表 if (level === 'province') { this.citySelect.innerHTML = ''; this.districtSelect.innerHTML = ''; } else if (level === 'city') { this.districtSelect.innerHTML = ''; } var subList = data.districtList; if (subList) { let optionName = '--请选择--'; var contentSub = new Option(optionName); var curlevel = subList[0].level; if (curlevel === 'street') { let mapJsonList = this.geoJsonData.features; let mapJson = {}; for (let i in mapJsonList) { if (mapJsonList[i].properties.name == this.areaName) { mapJson.type = "FeatureCollection"; mapJson.features = [].concat(mapJsonList[i]); } } this.mapData = []; this.mapData.push({name: this.areaName, value: 0, level: curlevel}); this.loadMap(this.areaName, mapJson); return; } var curList = document.querySelector('#' + curlevel); curList.add(contentSub); this.mapData = []; for (var i = 0, l = subList.length; i < l; i++) { var name = subList[i].name; var areaCode = subList[i].adcode; this.mapData.push({ name: name, value: Math.round(Math.random()), areaCode: areaCode, level: curlevel }); var levelSub = subList[i].level; contentSub = new Option(name); contentSub.setAttribute("value", levelSub); contentSub.center = subList[i].center; contentSub.adcode = subList[i].adcode; curList.add(contentSub); } this.loadMapData(adcode); this.areaData[curlevel] = curList; } }, search(area) { let obj = this.areaData[area]; //清除地图上所有覆盖物 for (var i = 0, l = this.polygons.length; i < l; i++) { this.polygons[i].setMap(null); } var option = obj[obj.options.selectedIndex]; var keyword = option.text; //关键字 var adcode = option.adcode; this.areaName = keyword; this.areaCode = adcode; this.district.setLevel(option.value); //行政区级别 this.district.setExtensions('all'); //行政区查询 //按照adcode进行查询可以保证数据返回的唯一性 this.district.search(adcode, (status, result) => { if (status === 'complete') { this.deepTree.push({mapData: this.mapData,code:adcode}); this.getData(result.districtList[0], obj.id, adcode); } }); var params = { areaCode: adcode, level: area, name: keyword, value: '', }; this.$emit('map-change', params); }, back() { // console.log(this.deepTree) if (this.deepTree.length > 1) { this.mapData = this.deepTree[this.deepTree.length - 1].mapData; this.deepTree.pop(); // console.log(this.deepTree[this.deepTree.length - 1], 'back'); this.loadMapData(this.deepTree[this.deepTree.length - 1].code) } } } } </script> <style lang="scss" scoped> #china_map_box { display: flex; width: 100%; height: 100%; position: relative; .echarts { width: 0; flex: 1; background-size: 100% 100%; #map { height: 100%; } } .back { position: absolute; top: .8rem; right: .5rem; z-index: 999; } } </style>
在网上有很多下伙伴都在查找如何使用中国地图并实现下钻，在实际使用地图时其实并不难，以上是本人提供的一些解决方案和代码提供。
