构建LVS+Keepalived+iSCSI集群(DR)

一、LVS+Keepalived 介绍

LVS是Linux Virtual Server的简写,意即Linux虚拟服务器,是一个虚拟的服务器集群系统。本项目在1998年5月由章文嵩博士成立,是中国国内最早出现的自由软件项目之一。

目前有三种IP负载均衡技术(VS/NAT、VS/TUN和VS/DR);

十种调度算法(rrr|wrr|lc|wlc|lblc|lblcr|dh|sh|sed|nq)。

Keepalived在这里主要用作RealServer的健康状态检查以及LoadBalance主机和BackUP主机之间failover的实现

在DR 模式的集群中,LVS 负载调度器作为群集的访问入口,但不作为网关使用,服务池中所有节点都各自接入Internet, 发送给客户机的web响应数据包不需要经过lvs负载调度器。

二、实验环境与目标

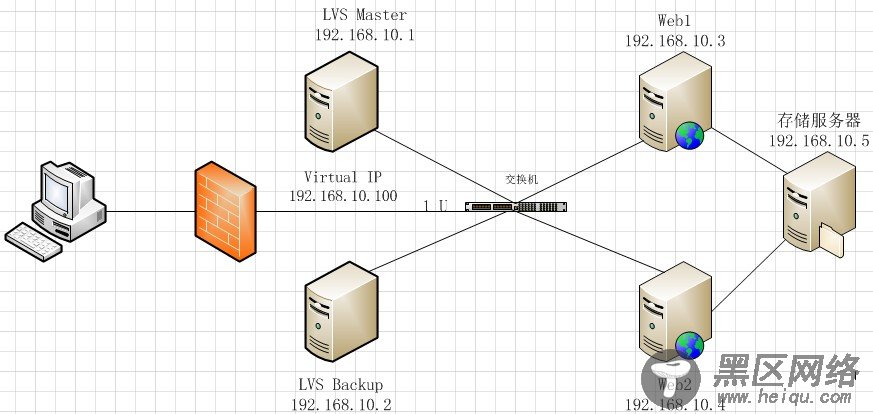

网站负载均衡集群拓扑图

系统环境(配置好yum源):

[root@host1 ~]# cat /etc/RedHat-release

CentOS release 6.2 (Final)

[root@host1 ~]# uname -a

Linux localhost.localdomain 2.6.32-220.el6.x86_64 #1 SMP Tue Dec 6 19:48:22 GMT 2011 x86_64 x86_64 x86_64 GNU/Linux

通过部署Apache应用构建Web服务器测试效果,通过部属iSCSI做为存储服务器。

实验目标:

实现Web服务器的备份和冗余,其中任意借点出现故障都会自动切换,保证应用正常运行。

三、LVS调度器的配置
[root@host1 ~]# modprobe ip_vs

[root@host1 ~]# cat /proc/net/ip_vs

IP Virtual Server version 1.2.1 (size=4096)

Prot LocalAddress:Port Scheduler Flags

-> RemoteAddress:Port Forward Weight ActiveConn InActConn

[root@host1 ~]# vim /etc/sysconfig/network-scripts/ifcfg-eth0:0

DEVICE=eth0:0

ONBOOT=yes

BOOTPROTO=static

IPADDR=192.168.10.100

NETMASK=255.255.255.0

[root@host1 ~]# /etc/init.d/network restart

[root@host1 ~]# ifconfig eth0:0

eth0:0    Link encap:Ethernet  HWaddr 00:0C:29:46:D9:DE

inet addr:192.168.10.100  Bcast:192.168.10.255  Mask:255.255.255.0

UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1

[root@host1 ~]# vim /etc/sysctl.conf           #避免网络内的ARP解析出现异常,应该关闭Linux内核的重定向参数响应

#在最后添加

net.ipv4.conf.all.send_redirects = 0

net.ipv4.conf.default.send_redirects = 0

net.ipv4.conf.eth0.send_redirects = 0


[root@host1 ~]# sysctl -p

[root@host1 ~]# yum -y install ipvsadm        #ipvsadm是负载调度器上使用LVS群集管理工具,通过调用ip_vs模块来添加、删除服务器节点,以及查看群集的运行状态

[root@host1 ~]# ipvsadm -v

ipvsadm v1.25 2008/5/15 (compiled with popt and IPVS v1.2.1)

[root@host1 ~]# mkdir /etc/sysconfig/ipvsadm

[root@host1 ~]# /etc/init.d/ipvsadm restart

[root@host1 ~]# chkconfig ipvsadm on

[root@host1 ~]# yum -y install gcc kernel-devel openssl-devel popt-devel  #安装支持库

[root@host1 ~]# tar -zxf keepalived-1.2.2.tar.gz

[root@host1 ~]# cd keepalived-1.2.2

[root@host1 ~]# vi keepalived/libipvs-2.6/ip_vs.h

将#include <sys/types.h>放到#include <linux/types.h>的上面

[root@host1 keepalived-1.2.2]# ./configure --prefix=/ --with-kernel-dir=/usr/src/kernels/2.6.18-194.el5-i686/

[root@host1 keepalived-1.2.2]# make

[root@host1 keepalived-1.2.2]# make install

[root@host1 keepalived-1.2.2]# chkconfig --add keepalived

[root@host1 keepalived-1.2.2]# chkconfig keepalived on

[root@host1 keepalived-1.2.2]# cd /etc/keepalived/

[root@host1 keepalived]# cp keepalived.conf keepalived.conf.bak

[root@host1 keepalived]# vim keepalived.conf        #文件里面所有内容

! Configuration File for keepalived

global_defs {

router_id LVS_MASTER                #从调度器上改为router_id LVS_SLAVE

}

vrrp_instance VI_1 {

state MASTER                       #从调度器上改为state SLAVE

interface eth0

virtual_router_id 51

priority 100                         #从调度器上改为priority 80

advert_int 1

authentication {

auth_type PASS

auth_pass 1111

}

virtual_ipaddress {

192.168.10.100

}

}

virtual_server 192.168.10.100 80 {

delay_loop 6

lb_algo rr

lb_kind DR

nat_make 255.255.255.0

persistence_timeout 50

protocol TCP

real_server 192.168.10.3 80 {

weight 1

TCP_CHECK {

connect_port 80

connect_timeout 3

nb_get_retry 3

}

}

real_server 192.168.10.4 80 {

weight 1

TCP_CHECK {

connect_port 80

connect_timeout 3

nb_get_retry 3

}

}

}

配置负载分配策略

# /etc/init.d/ipvsadm stop

# ipvsadm –A –t 192.168.10.100:80 –s rr

# ipvsadm –a –t 192.168.10.100:80 –r 192.168.10.3 –g –w 1

# ipvsadm –a –t 192.168.10.100:80 –r 192.168.10.4 –g –w 1

# /etc/init.d/ipvsadm save

# chkconfig ipvsadm on

ipvsadm
