Android动画分析之3D翻转效果

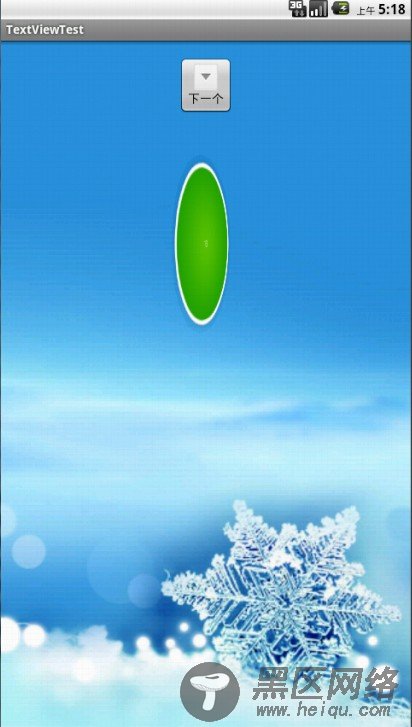

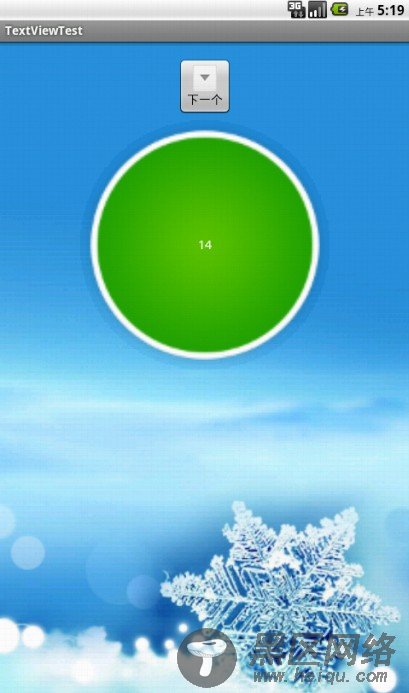

Android中的翻转动画效果的实现,首先看一下运行效果如下图所示.

Android动画分析之3D翻转效果

Android动画分析之3D翻转效果

Android中并没有提供直接做3D翻转的动画,所以关于3D翻转的动画效果需要我们自己实现,那么我们首先来分析一下Animation 和 Transformation。

Animation动画的主要接口,其中主要定义了动画的一些属性比如开始时间,持续时间,是否重复播放等等。而Transformation中则包含一个矩阵和alpha值,矩阵是用来做平移,旋转和缩放动画的,而alpha值是用来做alpha动画的,要实现3D旋转动画我们需要继承自Animation类来实现,我们需要重载getTransformation和applyTransformation,在getTransformation中Animation会根据动画的属性来产生一系列的差值点,然后将这些差值点传给applyTransformation,这个函数将根据这些点来生成不同的Transformation。下面是具体实现:

package com.example.textviewtest;

import android.graphics.Camera;
import android.graphics.Matrix;
import android.view.animation.Animation;
import android.view.animation.Transformation;

public class Rotate3dAnimation extends Animation {
 // 开始角度
 private final float mFromDegrees;
 // 结束角度
 private final float mToDegrees;
 // 中心点
 private final float mCenterX;
 private final float mCenterY;
 private final float mDepthZ;
 // 是否需要扭曲
 private final boolean mReverse;
 // 摄像头
 private Camera mCamera;

public Rotate3dAnimation(float fromDegrees, float toDegrees, float centerX,
   float centerY, float depthZ, boolean reverse) {
  mFromDegrees = fromDegrees;
  mToDegrees = toDegrees;
  mCenterX = centerX;
  mCenterY = centerY;
  mDepthZ = depthZ;
  mReverse = reverse;
 }

@Override
 public void initialize(int width, int height, int parentWidth,
   int parentHeight) {
  super.initialize(width, height, parentWidth, parentHeight);
  mCamera = new Camera();
 }

// 生成Transformation
 @Override
 protected void applyTransformation(float interpolatedTime, Transformation t) {
  final float fromDegrees = mFromDegrees;
  // 生成中间角度
  float degrees = fromDegrees
    + ((mToDegrees - fromDegrees) * interpolatedTime);

final float centerX = mCenterX;
  final float centerY = mCenterY;
  final Camera camera = mCamera;

final Matrix matrix = t.getMatrix();

camera.save();
  if (mReverse) {
   camera.translate(0.0f, 0.0f, mDepthZ * interpolatedTime);
  } else {
   camera.translate(0.0f, 0.0f, mDepthZ * (1.0f - interpolatedTime));
  }
  camera.rotateY(degrees);
  // 取得变换后的矩阵
  camera.getMatrix(matrix);
  camera.restore();

matrix.preTranslate(-centerX, -centerY);
  matrix.postTranslate(centerX, centerY);
 }
}
