鼠标悬浮同时触发多个echart

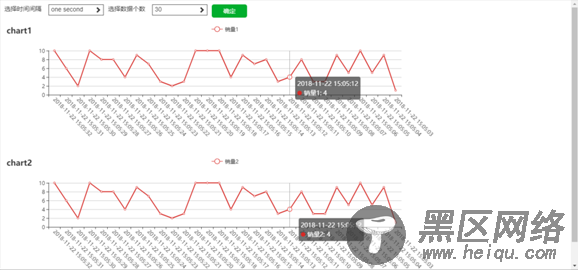

效果如下
html代码
<div> <div> <div> <div> <span>选择时间间隔</span> <div> <span>one second</span> <i></i> </div> </div> <div> <div leap="second">one second</div> <div leap="minute">one minute</div> <div leap="hour">one hour</div> <div leap="day">one day</div> <div leap="week">one week</div> <div leap="month">one month</div> <div leap="year">one year</div> </div> </div> <div> <div> <span>选择数据个数</span> <div> <span>5</span> <i></i> </div> </div> <div> <div leap="5">5</div> <div leap="10">10</div> <div leap="15">15</div> <div leap="20">20</div> <div leap="25">25</div> <div leap="30">30</div> <div leap="35">35</div> </div> </div> <div>确定</div> </div> <!-- 为ECharts准备一个具备大小（宽高）的Dom --> <div></div> <div></div> </div>
css代码
body { margin: 0; padding: 0; background-color: #eee; } .contain { padding: 10px; } .sel { position: absolute; height: 250px; z-index: 10; } .sel>div { float: left; margin-right: 10px; } .top span { display: inline-block; width: 100px; height: 30px; } .top .show { width: 125px; height: 25px; float: right; border: 1px solid #444; padding-left: 5px; position: relative; } .block { float: right; position: relative; border-radius: 5px; padding: 5px; width: 120px; box-shadow: 1px 1px 5px #444; display: none; background-color: #fff; } .block>div { height: 25px; line-height: 25px; padding-left: 5px; border-radius: 5px; cursor: pointer; } .block>div:hover { background-color: #D3E3E5; } .block>div.active { background-color: #087C90; color: #fff; } .zybtn { width: 80px; height: 30px; border-radius: 5px; background-color: #46AD08; line-height: 30px; text-align: center; color: #fff; cursor: pointer; } i.glyphicon { top: 3px; right: 5px }
js代码
function drawchart(timearr, dataarr) { // 基于准备好的dom，初始化echarts实例 var myChart1 = echarts.init(document.getElementById('main')); var myChart2 = echarts.init(document.getElementById('main2')); // 指定图表的配置项和数据 var option1 = { title: { text: 'chart1' }, tooltip: { show: true, trigger: 'axis', axisPointer: { type: 'line' }, lineStyle: { color: '#000', } }, legend: { data: ['销量1'] }, grid:{ y2:140 }, xAxis: [{ type: 'category', data: timearr, axisLabel: { interval: 0, //横轴信息全部显示 rotate: -45, //-30度角倾斜显示 } }], yAxis: [{ type: 'value', }], series: [{ name: '销量1', type: 'line', data: dataarr }] }; var option2 = { title: { text: 'chart2' }, tooltip: { show: true, trigger: 'axis', axisPointer: { type: 'line' }, lineStyle: { color: '#000', } }, legend: { data: ['销量2'] }, grid:{ y2:140 }, xAxis: [{ type: 'category', data: timearr, axisLabel: { interval: 0, //横轴信息全部显示 rotate: -45, //-30度角倾斜显示 } }], yAxis: [{ type: 'value', }], series: [{ name: '销量2', type: 'line', data: dataarr }] }; // 为echarts对象加载数据 myChart1.setOption(option1); myChart2.setOption(option2); //联动配置 // 分别设置每个实例的 group id myChart1.group = 'group1'; myChart2.group = 'group1'; echarts.connect('group1'); // 或者可以直接传入需要联动的实例数 // echarts.connect([myChart1,myChart2]); } // 获取x轴时间字符串 function gettimestr(tseconds) { var str = ''; var year = new Date(tseconds).getFullYear(); var month = new Date(tseconds).getMonth() + 1; var date = new Date(tseconds).getDate(); var hour = new Date(tseconds).getHours(); var minute = new Date(tseconds).getMinutes(); var second = new Date(tseconds).getSeconds(); if (month < 10) { month = "0" + month } if (date < 10) { date = "0" + date } if (hour < 10) { hour = "0" + hour } if (minute < 10) { minute = "0" + minute } if (second < 10) { second = "0" + second } str += year + "-" + month + "-" + date + " " + hour + ":" + minute + ":" + second; return str; } getsel() // 获取两个数值 function getsel() { $("i").on("click", function () { var that = $(this); var block = that.parents(".top").next(); // 点击i触发函数，判断类型 if ($(this).hasClass("glyphicon-chevron-right")) { $(this).removeClass("glyphicon-chevron-right"); $(this).addClass("glyphicon-chevron-down") block.children("div").each(function () { $(this).removeClass("active") }); block.slideDown(); } else if ($(this).hasClass("glyphicon-chevron-down")) { $(this).removeClass("glyphicon-chevron-down"); $(this).addClass("glyphicon-chevron-right") block.slideUp() } block.children("div").on("click", function () { $(this).addClass("active"); that.prev("span").html($(this).html()) that.removeClass("glyphicon-chevron-down"); that.addClass("glyphicon-chevron-right") block.slideUp() }); }); var val1 = 1000; var val2 = 5; $(".zybtn").on("click", function () { switch ($(".sel1 .show span").html()) { case 'one second': val1 = 1000; break; case 'one minute': val1 = 1000 * 60; break; case 'one hour': val1 = 1000 * 3600; break; case 'one day': val1 = 1000 * 3600 * 24; break; case 'one week': val1 = 1000 * 3600 * 24 * 7; break; case 'one month': val1 = 1000 * 3600 * 24 * 30; break; case 'one year': val1 = 1000 * 3600 * 24 * 365; break; } switch ($(".sel2 .show span").html()) { case '5': val2 = 5; break; case '10': val2 = 10; break; case '15': val2 = 15; break; case '20': val2 = 20; break; case '25': val2 = 25; break; case '30': val2 = 30; break; case '35': val2 = 35; break; } changedata(val1, val2) }) changedata(val1, val2) } function changedata(sel1, sel2) { // 获取当前日期 var getdate = new Date(); var tseconds = getdate.getTime(); var timearr = []; var dataarr = []; for (var i = 0; i < sel2; i++) { timearr.push(gettimestr(tseconds - sel1 * i)) dataarr.push(Math.ceil(Math.random() * 10)) } drawchart(timearr, dataarr) }
PS：echart多表联动
