炫丽的时钟效果Canvas绘图与动画基础练习

HTML5-炫丽的时钟效果Canvas绘图与动画基础练习

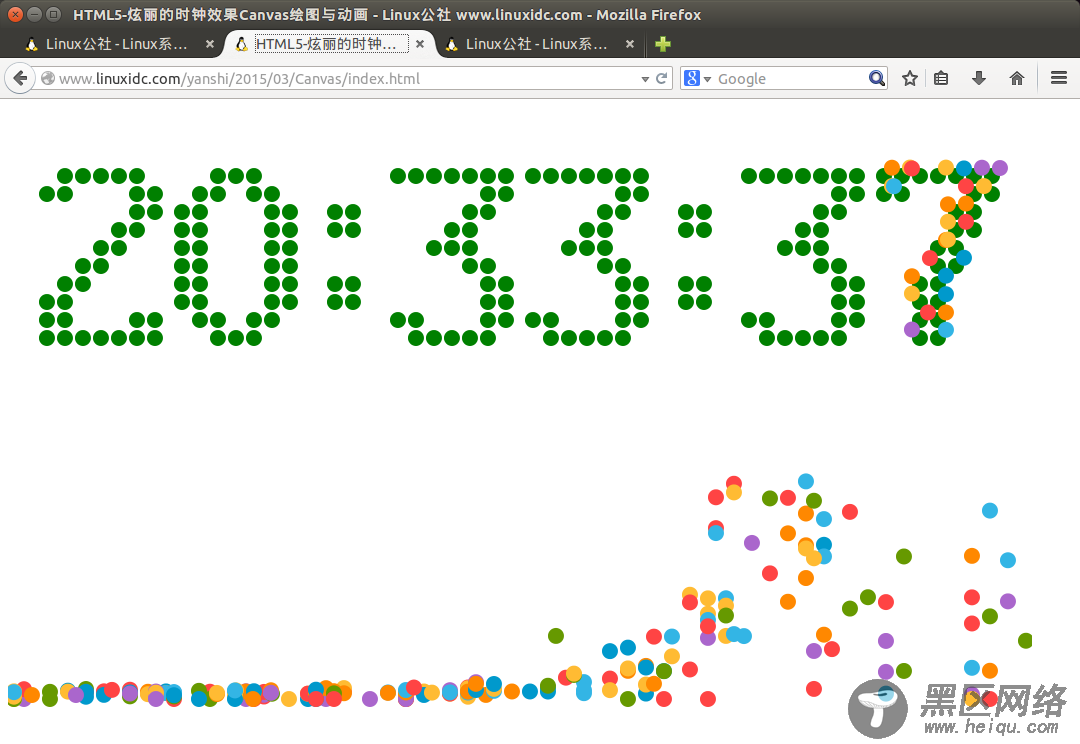

效果如下:

HTML5-炫丽的时钟效果Canvas绘图与动画基础练习

全部代码:


<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">

<html xmlns="http://www.w3.org/1999/xhtml">
 <head>
  <title>HTML5-炫丽的时钟效果Canvas绘图与动画 - Linux公社 </title>
  <meta content="editplus" />
  <meta content="" />
  <meta content="" />
  <meta content="" />
 </head>
 <body>
  <canvas></canvas>
 </body>
</html>
<script type="text/Javascript" src="https://www.linuxidc.com/digit.js"></script>
<script type="text/javascript">
var WINDOW_WIDTH=1024;
var WINDOW_HEIGHT=600;
var MARGIN_TOP=60;
var MARGIN_LEFT=30;
//存放彩色小球
var balls=[];
const colors=["#33B5E5","#0099CC","#AA66CC","#669900","#FFBB33","#FF8800","#FF4444","CC0000"];

var r=8;//圆半径

window.onload=function(){

var canvas=document.getElementById("canvas");

var context=canvas.getContext("2d");

canvas.width=WINDOW_WIDTH;

canvas.height=WINDOW_HEIGHT;

window.setInterval(function(){

var curr=new Date();

var curHours=curr.getHours();

var curMinutes=curr.getMinutes();

var curSeconds=curr.getSeconds();

//当时间的秒数改变时添加彩色小球

if(preSeconds!=curSeconds)

{

if(parseInt(curHours/10)!=parseInt(preHours/10)){

addBall(MARGIN_LEFT,MARGIN_TOP,parseInt(curHours/10));

}

if(parseInt(curHours%10)!=parseInt(preHours%10)){

addBall(MARGIN_LEFT+15*(r+1),MARGIN_TOP,parseInt(curHours%10));

}

if(parseInt(curMinutes/10)!=parseInt(preMinutes/10)){

addBall(MARGIN_LEFT+39*(r+1),MARGIN_TOP,parseInt(curMinutes/10));

}

if(parseInt(curMinutes%10)!=parseInt(preMinutes%10)){

addBall(MARGIN_LEFT+54*(r+1),MARGIN_TOP,parseInt(curMinutes%10));

}

if(parseInt(curSeconds/10)!=parseInt(preSeconds/10)){

addBall(MARGIN_LEFT+78*(r+1),MARGIN_TOP,parseInt(curSeconds/10));

}

if(parseInt(curSeconds%10)!=parseInt(preSeconds%10)){

addBall(MARGIN_LEFT+93*(r+1),MARGIN_TOP,parseInt(curSeconds%10));

}

}

render(context);

},50);

}

//添加小球(数字num上的彩色小球,x,y:数字方块容器的左上角顶点坐标)

function addBall(x,y,num){

for (var i=0;i<digit[num].length ;i++ )

{

for (var j=0;j<digit[num][i].length ;j++ )

{

if(digit[num][i][j]==1){

var ball={

x:x+j*2*(r+1)+r+1,

y:y+i*2*(r+1)+r+1,

g:1.5+Math.random(),

vx:Math.pow(-1,Math.ceil(Math.random()*1000))*4,//结果为-4/4

vy:-5,

color:colors[Math.floor(Math.random()*colors.length)]

};

balls.push(ball);

}

}

}

}

//----画彩色小球

function renderBalls(context){

//context.clearRect(0,0,WINDOW_WIDTH,WINDOW_HEIGHT)

for (var i=0;i<balls.length ;i++ )

{

context.beginPath();

context.arc(balls[i].x,balls[i].y,r,0,2*Math.PI,false);

context.fillStyle=balls[i].color;

context.fill();

context.closePath();

}

}

//----更新彩色小球位置

function UpdateBalls(){

for (var i=0;i<balls.length ;i++ )

{

balls[i].x+=balls[i].vx;

balls[i].y+=balls[i].vy;

balls[i].vy+=balls[i].g;

if(balls[i].y+r>=WINDOW_HEIGHT){

balls[i].y=WINDOW_HEIGHT-r;

balls[i].vy=-balls[i].vy*0.6;

}

}

}

var preHours;

var preMinutes;

var preSeconds;

//渲染整个画布

function render(context)

{

context.clearRect(0,0,WINDOW_WIDTH,WINDOW_HEIGHT)

var now=new Date();

var hours=now.getHours();

var minutes=now.getMinutes();

var seconds=now.getSeconds();

preHours=hours;

preMinutes=minutes;

preSeconds=seconds;

//---时

renderDigit(MARGIN_LEFT,MARGIN_TOP,parseInt(hours/10),context);

renderDigit(MARGIN_LEFT+15*(r+1),MARGIN_TOP,hours%10,context);

renderDigit(MARGIN_LEFT+30*(r+1),MARGIN_TOP,10,context);

//---分

renderDigit(MARGIN_LEFT+39*(r+1),MARGIN_TOP,parseInt(minutes/10),context);

renderDigit(MARGIN_LEFT+54*(r+1),MARGIN_TOP,minutes%10,context);

renderDigit(MARGIN_LEFT+69*(r+1),MARGIN_TOP,10,context);

//---秒

renderDigit(MARGIN_LEFT+78*(r+1),MARGIN_TOP,parseInt(seconds/10),context);

renderDigit(MARGIN_LEFT+93*(r+1),MARGIN_TOP,seconds%10,context);

//---画小球

renderBalls(context);

//---改变小球路径

UpdateBalls();

}

//渲染每个数字

function renderDigit(x,y,num,context)

{

context.fillStyle="green";

for (var i=0;i<digit[num].length ; i++)

{

for (var j=0;j<digit[num][i].length ;j++ )

{

if(digit[num][i][j]==1){

context.beginPath();

context.arc(x+j*2*(r+1)+r+1,y+i*2*(r+1)+r+1,r,0,2*Math.PI,false);

context.closePath();

context.fill();

}

}

}

</script>

数字的结构定义:digit.js


digit =

[

[

[0,0,1,1,1,0,0],

[0,1,1,0,1,1,0],

[1,1,0,0,0,1,1],

[1,1,0,0,0,1,1],

[1,1,0,0,0,1,1],

[1,1,0,0,0,1,1],

[1,1,0,0,0,1,1],

[1,1,0,0,0,1,1],

[0,1,1,0,1,1,0],

[0,0,1,1,1,0,0]

],//0

[

[0,0,0,1,1,0,0],

[0,1,1,1,1,0,0],

[0,0,0,1,1,0,0],

[0,0,0,1,1,0,0],

[0,0,0,1,1,0,0],

[0,0,0,1,1,0,0],

[0,0,0,1,1,0,0],

[0,0,0,1,1,0,0],

[0,0,0,1,1,0,0],

[1,1,1,1,1,1,1]

],//1

[

[0,1,1,1,1,1,0],

[1,1,0,0,0,1,1],

[0,0,0,0,0,1,1],

[0,0,0,0,1,1,0],

[0,0,0,1,1,0,0],

[0,0,1,1,0,0,0],

[0,1,1,0,0,0,0],

[1,1,0,0,0,0,0],

[1,1,0,0,0,1,1],

[1,1,1,1,1,1,1]

],//2

[

[1,1,1,1,1,1,1],

[0,0,0,0,0,1,1],

[0,0,0,0,1,1,0],

[0,0,0,1,1,0,0],

[0,0,1,1,1,0,0],

[0,0,0,0,1,1,0],

[0,0,0,0,0,1,1],

[0,0,0,0,0,1,1],

[1,1,0,0,0,1,1],

[0,1,1,1,1,1,0]

],//3

[

[0,0,0,0,1,1,0],

[0,0,0,1,1,1,0],

[0,0,1,1,1,1,0],

[0,1,1,0,1,1,0],

[1,1,0,0,1,1,0],

[1,1,1,1,1,1,1],

[0,0,0,0,1,1,0],

[0,0,0,0,1,1,0],

[0,0,0,0,1,1,0],

[0,0,0,1,1,1,1]

],//4

[

[1,1,1,1,1,1,1],

[1,1,0,0,0,0,0],

[1,1,0,0,0,0,0],

[1,1,1,1,1,1,0],

[0,0,0,0,0,1,1],

[0,0,0,0,0,1,1],

[0,0,0,0,0,1,1],

[0,0,0,0,0,1,1],

[1,1,0,0,0,1,1],

[0,1,1,1,1,1,0]

],//5

[

[0,0,0,0,1,1,0],

[0,0,1,1,0,0,0],

[0,1,1,0,0,0,0],

[1,1,0,0,0,0,0],

[1,1,0,1,1,1,0],

[1,1,0,0,0,1,1],

[1,1,0,0,0,1,1],

[1,1,0,0,0,1,1],

[1,1,0,0,0,1,1],

[0,1,1,1,1,1,0]

],//6

[

[1,1,1,1,1,1,1],

[1,1,0,0,0,1,1],

[0,0,0,0,1,1,0],

[0,0,0,0,1,1,0],

[0,0,0,1,1,0,0],

[0,0,0,1,1,0,0],

[0,0,1,1,0,0,0],

[0,0,1,1,0,0,0],

[0,0,1,1,0,0,0],

[0,0,1,1,0,0,0]

],//7

[

[0,1,1,1,1,1,0],

[1,1,0,0,0,1,1],

[1,1,0,0,0,1,1],

[1,1,0,0,0,1,1],

[0,1,1,1,1,1,0],

[1,1,0,0,0,1,1],

[1,1,0,0,0,1,1],

[1,1,0,0,0,1,1],

[1,1,0,0,0,1,1],

[0,1,1,1,1,1,0]

],//8

[

[0,1,1,1,1,1,0],

[1,1,0,0,0,1,1],

[1,1,0,0,0,1,1],

[1,1,0,0,0,1,1],

[0,1,1,1,0,1,1],

[0,0,0,0,0,1,1],

[0,0,0,0,0,1,1],

[0,0,0,0,1,1,0],

[0,0,0,1,1,0,0],

[0,1,1,0,0,0,0]

],//9

[

[0,0,0,0],

[0,0,0,0],

[0,1,1,0],

[0,1,1,0],

[0,0,0,0],

[0,0,0,0],

[0,1,1,0],

[0,1,1,0],

[0,0,0,0],

[0,0,0,0]

]//:

];
