Ubuntu下OpenGL编程基础解析

1:首先当然需要安装一些基本的编译库和OpenGL库文件,主要安装以下两个就ok了

基本编译库:build-essential

sudo apt-get install  build-essential

OpenGL工具库:freeglut3-dev

sudo apt-get install freeglut3-dev

Ubuntu下OpenGL编程基础解析

Ubuntu下OpenGL编程基础解析

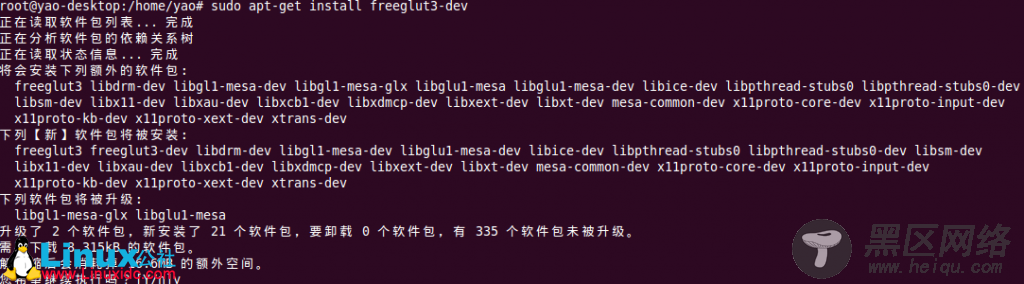

以上是本人在虚拟机上安装的提示,可以看到除了freeglut3外 还安装了其他额外的软件包。

2:第二步,当然是编写代码了,这个就不用讲了,自己贴一个,有时间可以研究下。

/* Rotating cube with color interpolation */

#include <stdlib.h>
 #include <GL/glut.h>

 GLfloat vertices[][3] = {{-1.0,-1.0,-1.0},{1.0,-1.0,-1.0},
  {1.0,1.0,-1.0}, {-1.0,1.0,-1.0}, {-1.0,-1.0,1.0},
  {1.0,-1.0,1.0}, {1.0,1.0,1.0}, {-1.0,1.0,1.0}};

GLfloat normals[][3] = {{-1.0,-1.0,-1.0},{1.0,-1.0,-1.0},
  {1.0,1.0,-1.0}, {-1.0,1.0,-1.0}, {-1.0,-1.0,1.0},
  {1.0,-1.0,1.0}, {1.0,1.0,1.0}, {-1.0,1.0,1.0}};

GLfloat colors[][3] = {{0.0,0.0,0.0},{1.0,0.0,0.0},
  {1.0,1.0,0.0}, {0.0,1.0,0.0}, {0.0,0.0,1.0},
  {1.0,0.0,1.0}, {1.0,1.0,1.0}, {0.0,1.0,1.0}};


void polygon(int a, int b, int c , int d)
{
  glBegin(GL_POLYGON);
  glColor3fv(colors[a]);
  glNormal3fv(normals[a]);
  glVertex3fv(vertices[a]);
  glColor3fv(colors[b]);
  glNormal3fv(normals[b]);
  glVertex3fv(vertices[b]);
  glColor3fv(colors[c]);
  glNormal3fv(normals[c]);
  glVertex3fv(vertices[c]);
  glColor3fv(colors[d]);
  glNormal3fv(normals[d]);
  glVertex3fv(vertices[d]);
  glEnd();
}



void colorcube(void)

/* map vertices to faces */

  polygon(0,3,2,1);
  polygon(2,3,7,6);
  polygon(0,4,7,3);
  polygon(1,2,6,5);
  polygon(4,5,6,7);
  polygon(0,1,5,4);
}

static GLfloat theta[] = {0.0,0.0,0.0};
static GLint axis = 2;

void display(void)

/* display callback, clear frame buffer and z buffer,
  rotate cube and draw, swap buffers */

 glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);
 glLoadIdentity();
 glRotatef(theta[0], 1.0, 0.0, 0.0);
 glRotatef(theta[1], 0.0, 1.0, 0.0);
 glRotatef(theta[2], 0.0, 0.0, 1.0);
 colorcube();
 glFlush();
 glutSwapBuffers();




void spinCube()
{
  /* Idle callback, spin cube 2 degrees about selected axis */
 theta[axis] += 2.0;
 if( theta[axis] > 360.0 ) theta[axis] -= 360.0;
 display();
}



void mouse(int btn, int state, int x, int y)
 {
  /* mouse callback, selects an axis about which to rotate */
  if(btn==GLUT_LEFT_BUTTON && state == GLUT_DOWN) axis = 0;
  if(btn==GLUT_MIDDLE_BUTTON && state == GLUT_DOWN) axis = 1;
  if(btn==GLUT_RIGHT_BUTTON && state == GLUT_DOWN) axis = 2;
}

void myReshape(int w, int h)
{
  glViewport(0, 0, w, h);
 glMatrixMode(GL_PROJECTION);
 glLoadIdentity();
 if (w <= h)
 {
  glOrtho(-2.0, 2.0, -2.0 * (GLfloat) h / (GLfloat) w,
          2.0 * (GLfloat) h / (GLfloat) w, -10.0, 10.0);
 }
    else
    {
        glOrtho(-2.0 * (GLfloat) w / (GLfloat) h,
          2.0 * (GLfloat) w / (GLfloat) h, -2.0, 2.0, -10.0, 10.0);
  }

  glMatrixMode(GL_MODELVIEW);
}


main(int argc, char **argv)
{
  glutInit(&argc, argv);
 /* need both double buffering and z buffer */

glutInitDisplayMode(GLUT_DOUBLE | GLUT_RGB | GLUT_DEPTH);
    glutInitWindowSize(500, 500);
    glutCreateWindow("colorcube");
    glutReshapeFunc(myReshape);
    glutDisplayFunc(display);
 glutIdleFunc(spinCube);
 glutMouseFunc(mouse);
 glEnable(GL_DEPTH_TEST); /* Enable hidden--surface--removal */
    glutMainLoop();

return 0;

}
