现在整理下发出来，希望大家共同学习吧

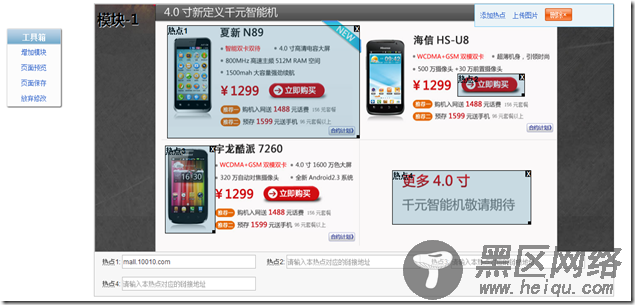

先看效果图：
用了jquery.image-maps.js这个插件 下载地址 https://www.jb51.net/jiaoben/57930.html
原理是：
通过拖动计算出当前热区可移动模块的left top right bottom
对应area的 coords 属性集成上面的位置，就可以实现热区了。
对应的模块代码是：
复制代码 代码如下:
<!--模块展示 begin-->
<div>
<div></div>
<div>
<img src="https://www.jb51.net/images/hot_images_map.png" usemap="#Map1" ref='imageMaps' />
<map>
<area shape="rect" coords="300,80,500,150" href="https://www.jb51.net/mall.10010.com" />
</map>
</div>
</div>
<!--模块展示 end—>
js代码：
复制代码 代码如下:
(function($) {
jQuery.fn.imageMaps = function(setting) {
var $container = this;
if ($container.length == 0) return false;
$container.each(function(){
var container = $(this);
var $images = container.find('img[ref=imageMaps]');
$images.wrap('<div></div>').css('border','1px solid #ccc');
$images.each(function(){
var _img_conrainer = $(this).parent();
_img_conrainer.append('<div><a href="javascript:void(0)">添加热点</a><a href="javascript:void(0)">上传图片</a><a href="javascript:void(0)">删除×</a></div>').append('<div><ul></ul><div></div></div><div></div><span>模块-1</span>').append($.browser.msie ? $('<div></div>').css({
background:'#fff',
opacity:0
}) : '<div></div>');
var _img_offset = $(this).offset();
var _img_conrainer_offset = _img_conrainer.offset();
_img_conrainer.find('.position-conrainer').css({
top: _img_offset.top - _img_conrainer_offset.top,
left: _img_offset.left - _img_conrainer_offset.left,
width:$(this).width(),
height:$(this).height(),
border:'1px solid transparent'
});
var map_name = $(this).attr('usemap').replace('#','');
if(map_name !=''){
var index = 1;
var _link_conrainer = _img_conrainer.find('.link-conrainer ul');
var _position_conrainer = _img_conrainer.find('.position-conrainer');
var image_param = $(this).attr('name') == '' ? '' : '['+ $(this).attr('name') + ']';
container.find('map[name='+map_name+']').find('area[shape=rect]').each(function(){
var coords = $(this).attr('coords');
$(this).attr('ref',"1");
_link_conrainer.append('<li ref="'+index+'"><span>热点'+index+'</span>: <input type="text" size="60" value="'+$(this).attr('href')+'" /><input type="hidden" value="'+coords+'" /></li>');
coords = coords.split(',');
_position_conrainer.append('<div ref="'+index+'"><div></div><span>热点'+index+'</span><span>X</span><span></span></div>');
index++;
});
}
});
});
$container.find('.button-conrainer .addHot').live("click",function(){
var _link_conrainer = $(this).parent().parent().find('.link-conrainer ul');
var _position_conrainer = $(this).parent().parent().find('.position-conrainer');
var index = _link_conrainer.find('.map-link').length +1;
var _coordsMap = $(this).parent().parent().next('map');
var image = $(this).parent().parent().find('img[ref=imageMaps]').attr('name');
image = (image == '' ? '' : '['+ image + ']');
_link_conrainer.append('<li ref="'+index+'"><span>热点'+index+'</span>: <input type="text" size="60" value="" /><input type="hidden" value="300,80,500,150" /></li>');
_position_conrainer.append('<div ref="'+index+'"><div></div><span>热点'+index+'</span><span>X</span><span></span></div>');
var coords = _link_conrainer.find('input[name=rect'+ index +']').val();
_coordsMap.append('<area ref="'+index+'" href="" coords="'+ coords +'" shape="rect">');
$("input[name='link"+index+"']").val("请输入本热点对应的链接地址");
bind_map_event();
define_css();
//添加map热区
});
//修改链接地址
$(".linkHref").live("blur",function(){
var valueHref = $(this).val();
var thisRef = $(this).parent().attr('ref');
var appArea = $(this).parents(".link-conrainer").parent().next('map');
$(this).val(valueHref);
appArea.find('area[ref='+thisRef+']').attr("href",valueHref);
});
//绑定map事件
function bind_map_event(){
$('.position-conrainer .map-position .map-position-bg').each(function(){
var map_position_bg = $(this);
var conrainer = $(this).parent().parent();
map_position_bg.unbind('mousedown').mousedown(function(event){
map_position_bg.data('mousedown', true);
map_position_bg.data('pageX', event.pageX);
map_position_bg.data('pageY', event.pageY);
map_position_bg.css('cursor','move');
return false;
}).unbind('mouseup').mouseup(function(event){
map_position_bg.data('mousedown', false);
map_position_bg.css('cursor','default');
return false;
});
conrainer.mousemove(function(event){
if (!map_position_bg.data('mousedown')) return false;
var dx = event.pageX - map_position_bg.data('pageX');
var dy = event.pageY - map_position_bg.data('pageY');
if ((dx == 0) && (dy == 0)){
return false;
}
var map_position = map_position_bg.parent();
var p = map_position.position();
var left = p.left+dx;
if(left <0) left = 0;
var top = p.top+dy;
if (top < 0) top = 0;
var bottom = top + map_position.height();
if(bottom > conrainer.height()){
top = top-(bottom-conrainer.height());
}
var right = left + map_position.width();
if(right > conrainer.width()){
left = left-(right-conrainer.width());
}
map_position.css({
left:left,
top:top
});
map_position_bg.data('pageX', event.pageX);
map_position_bg.data('pageY', event.pageY);
bottom = top + map_position.height();
right = left + map_position.width();
var newArea = new Array(left,top,right,bottom).join(',');
var mapApp = conrainer.parent().next('map');
mapApp.find('area[ref='+map_position.attr('ref')+']').attr("coords",newArea);
$('.link-conrainer li[ref='+map_position.attr('ref')+'] .rect-value').val(newArea);
return false;
}).mouseup(function(event){
map_position_bg.data('mousedown', false);
map_position_bg.css('cursor','default');
return false;
});
});
$('.position-conrainer .map-position .resize').each(function(){
var map_position_resize = $(this);
var conrainer = $(this).parent().parent();
map_position_resize.unbind('mousedown').mousedown(function(event){
map_position_resize.data('mousedown', true);
map_position_resize.data('pageX', event.pageX);
map_position_resize.data('pageY', event.pageY);
return false;
}).unbind('mouseup').mouseup(function(event){
map_position_resize.data('mousedown', false);
return false;
});
//点击取消拖动
conrainer.unbind('click').click(function(event){
map_position_resize.data('mousedown', false);
return false;
});
conrainer.mousemove(function(event){
if (!map_position_resize.data('mousedown')) return false;
var dx = event.pageX - map_position_resize.data('pageX');
var dy = event.pageY - map_position_resize.data('pageY');
if ((dx == 0) && (dy == 0)){
return false;
}
var map_position = map_position_resize.parent();
var p = map_position.position();
var left = p.left;
var top = p.top;
var height = map_position.height()+dy;
if((top+height) > conrainer.height()){
height = height-((top+height)-conrainer.height());
}
if (height <20) height = 20;
var width = map_position.width()+dx;
if((left+width) > conrainer.width()){
width = width-((left+width)-conrainer.width());
}
if(width <50) width = 50;
map_position.css({
width:width,
height:height
});
map_position_resize.data('pageX', event.pageX);
map_position_resize.data('pageY', event.pageY);
bottom = top + map_position.height();
right = left + map_position.width();
var newArea = new Array(left,top,right,bottom).join(',');
var mapApp = conrainer.parent().next('map');
mapApp.find('area[ref='+map_position.attr('ref')+']').attr("coords",newArea);
$('.link-conrainer li[ref='+map_position.attr('ref')+'] .rect-value').val(newArea);
return false;
}).mouseup(function(event){
map_position_resize.data('mousedown', false);
return false;
});
});
$('.position-conrainer .map-position .delete').unbind('click').click(function(){
var ref = $(this).parent().attr('ref');
var _link_conrainer = $(this).parent().parent().parent().find('.link-conrainer ul');
var _coordsMap = $(this).parent().parent().parent().next('map');
var _position_conrainer = $(this).parent().parent().parent().find('.position-conrainer');
_link_conrainer.find('.map-link[ref='+ref+']').remove();
_position_conrainer.find('.map-position[ref='+ref+']').remove();
_coordsMap.find('area[ref='+ref+']').remove();
var index = 1;
_link_conrainer.find('.map-link').each(function(){
$(this).attr('ref',index).find('.link-number-text').html('热点'+index);
index ++;
});
index = 1;
_position_conrainer.find('.map-position').each(function(){
$(this).attr('ref',index).find('.link-number-text').html('热点'+index);
index ++;
});
index = 1;
_coordsMap.find('area').each(function(){
$(this).attr('ref',index);
index ++;
});
});
}
bind_map_event();
function define_css(){
//样式定义
$container.find('.map-position .resize').css({
display:'block',
position:'absolute',
right:0,
bottom:0,
width:5,
height:5,
cursor:'nw-resize',
background:'#000'
});
}
define_css();
};
})(jQuery);
页面引用：$('.imgMap').imageMaps();
