/// <summary> /// 检查坐标点是否正确 /// </summary> /// <returns></returns> private bool CheckPoint() { //PointArray:正确的坐标值数组 //currentPointArray:当前绘制的坐标值数组 if (currentPointArray.Count != PointArray.Count) return false; for (var i = 0; i < currentPointArray.Count; i++) { if (currentPointArray[i] != PointArray[i]) return false; } return true; }
记录经过点，并创建一条新的线
/// <summary> /// 记录经过的点 /// </summary> /// <param></param> private void OnAfterByPoint(Ellipse ellipse) { var ellipseCenterPoint = GetCenterPoint(ellipse); currentLine.X2 = ellipseCenterPoint.X; currentLine.Y2 = ellipseCenterPoint.Y; currentLine = CreateLine(); currentLine.X1 = currentLine.X2 = ellipseCenterPoint.X; currentLine.Y1 = currentLine.Y2 = ellipseCenterPoint.Y; currentPointArray.Add(ellipse.Tag.ToString()); Console.WriteLine(string.Join(",", currentPointArray)); currentLineList.Add(currentLine); canvasRoot.Children.Add(currentLine); }
/// <summary> /// 获取原点的中心点坐标 /// </summary> /// <param></param> /// <returns></returns> private Point GetCenterPoint(Ellipse ellipse) { Point p = new Point(Canvas.GetLeft(ellipse) + ellipse.Width / 2, Canvas.GetTop(ellipse) + ellipse.Height / 2); return p; }
当绘制完成时，执行完成动画并触发响应模式的事件
/// <summary> /// 执行动画 /// </summary> /// <param></param> private void PlayAnimation(bool result, Action callback = null) { Task.Factory.StartNew(() => { this.Dispatcher.Invoke((Action)delegate { foreach (Line l in currentLineList) l.Stroke = result ? rightColor : errorColor; foreach (Ellipse e in ellipseList) if (currentPointArray.Contains(e.Tag.ToString())) e.Fill = result ? rightColor : errorColor; }); Thread.Sleep(1500); this.Dispatcher.Invoke((Action)delegate { foreach (Line l in currentLineList) this.canvasRoot.Children.Remove(l); foreach (Ellipse e in ellipseList) e.Fill = Color; }); currentLine = null; this.currentPointArray.Clear(); this.currentLineList.Clear(); isChecking = false; }).ContinueWith(t => { try { if (callback != null) callback(); } catch (Exception ex) { Console.WriteLine(ex.Message); } finally { t.Dispose(); } }); }

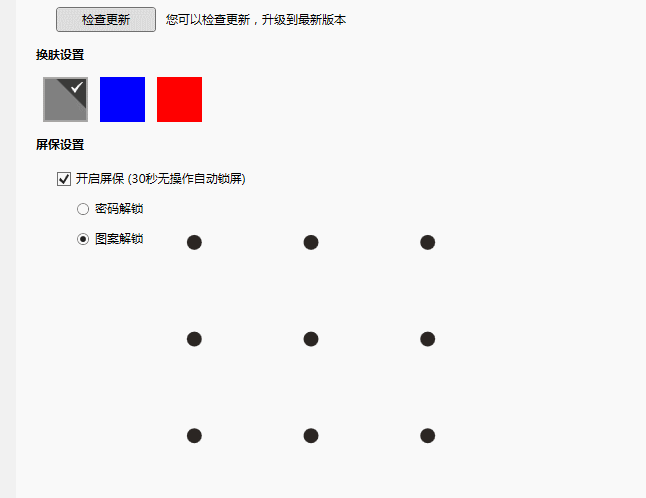

图形解锁的调用
<local:ScreenUnlock PointArray="{Binding PointArray, Mode=TwoWay, UpdateSourceTrigger=PropertyChanged}" Operation="Check"> <!--或Remember--> <i:Interaction.Triggers> <i:EventTrigger EventName="OnCheckedPoint"> <Custom:EventToCommand Command="{Binding OnCheckedPoint}" PassEventArgsToCommand="True"/> </i:EventTrigger> <i:EventTrigger EventName="OnRememberPoint"> <Custom:EventToCommand Command="{Binding OnRememberPoint}" PassEventArgsToCommand="True"/> </i:EventTrigger> </i:Interaction.Triggers> </local:ScreenUnlock>
