As of Spring Framework 5.2.7, advice methods defined in the same @Aspect class that need to run at the same join point are assigned precedence based on their advice type in the following order, from highest to lowest precedence: @Around, @Before, @After, @AfterReturning, @AfterThrowing.
我粗浅的翻译一下重点：
从Spring5.2.7开始，在相同@Aspect类中，通知方法将根据其类型按照从高到低的优先级进行执行：@Around，@Before ，@After，@AfterReturning，@AfterThrowing。
这样看其实对比不明显，我们再回到老版本，也就是2.2.5.RELEASE对应的spring-aop-5.2.4.RELEASE，当时的文档是这么写的：
What happens when multiple pieces of advice all want to run at the same join point? Spring AOP follows the same precedence rules as AspectJ to determine the order of advice execution. The highest precedence advice runs first "on the way in" (so, given two pieces of before advice, the one with highest precedence runs first). "On the way out" from a join point, the highest precedence advice runs last (so, given two pieces of after advice, the one with the highest precedence will run second).
简单翻译：在相同@Aspect类中Spring AOP遵循与AspectJ相同的优先级规则来确定advice执行的顺序。
再挖深一点，那么AspectJ的优先级规则是什么样的？
我找了AspectJ的文档：
https://www.eclipse.org/aspectj/doc/next/progguide/semantics-advice.html
At a particular join point, advice is ordered by precedence.
A piece of around advice controls whether advice of lower precedence will run by calling proceed. The call to proceed will run the advice with next precedence, or the computation under the join point if there is no further advice.
A piece of before advice can prevent advice of lower precedence from running by throwing an exception. If it returns normally, however, then the advice of the next precedence, or the computation under the join pint if there is no further advice, will run.
Running after returning advice will run the advice of next precedence, or the computation under the join point if there is no further advice. Then, if that computation returned normally, the body of the advice will run.
Running after throwing advice will run the advice of next precedence, or the computation under the join point if there is no further advice. Then, if that computation threw an exception of an appropriate type, the body of the advice will run.
Running after advice will run the advice of next precedence, or the computation under the join point if there is no further advice. Then the body of the advice will run.
大伙又要说了，哎呀太长不看！简短地说，Aspectj的规则就是上面我们能够在网上查阅到的顺序图展示的那样，依旧是老的顺序。
代码验证我把业务逻辑从代码中删除，只验证下这几个advice的执行顺序：
package com.bj58.xfbusiness.cloudstore.system.aop; import com.bj58.xfbusiness.cloudstore.utils.IPAddressUtil; import com.bj58.xfbusiness.cloudstore.utils.TraceIdUtil; import org.apache.commons.lang3.StringUtils; import org.aspectj.lang.JoinPoint; import org.aspectj.lang.ProceedingJoinPoint; import org.aspectj.lang.annotation.*; import org.slf4j.Logger; import org.slf4j.LoggerFactory; import org.springframework.stereotype.Component; import org.springframework.web.context.request.RequestContextHolder; import org.springframework.web.context.request.ServletRequestAttributes; import javax.servlet.http.HttpServletRequest; /** * 日志切面 */ @Aspect @Component public class WebLogAspect { private final static Logger LOGGER = LoggerFactory.getLogger(WebLogAspect.class); /** 以 controller 包下定义的所有请求为切入点 */ @Pointcut("execution(public * com.xx.xxx.xxx.controller..*.*(..))") public void webLog() {} /** * 在切点之前织入 * @param joinPoint * @throws Throwable */ @Before("webLog()") public void doBefore(JoinPoint joinPoint) throws Throwable { LOGGER.info("-------------doBefore-------------"); } @AfterReturning("webLog()") public void afterReturning() { LOGGER.info("-------------afterReturning-------------"); } @AfterThrowing("webLog()") public void afterThrowing() { LOGGER.info("-------------afterThrowing-------------"); } /** * 在切点之后织入 * @throws Throwable */ @After("webLog()") public void doAfter() throws Throwable { LOGGER.info("-------------doAfter-------------"); } /** * 环绕 * @param proceedingJoinPoint * @return * @throws Throwable */ @Around("webLog()") public Object doAround(ProceedingJoinPoint proceedingJoinPoint) throws Throwable { long startTime = System.currentTimeMillis(); LOGGER.info("-------------doAround before proceed-------------"); Object result = proceedingJoinPoint.proceed(); LOGGER.info("-------------doAround after proceed-------------"); return result; }我们将版本改为2.2.5.RELEASE，结果如图：

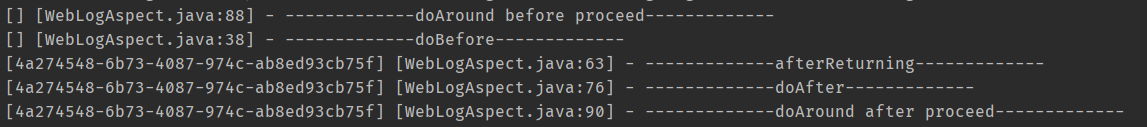

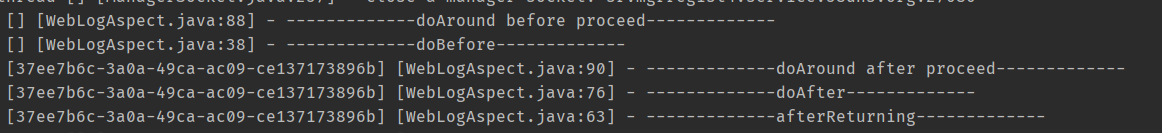

我们将版本改为2.3.4.RELEASE，结果如图：
经过上面的资料文档查阅，我能给出的结论是：
