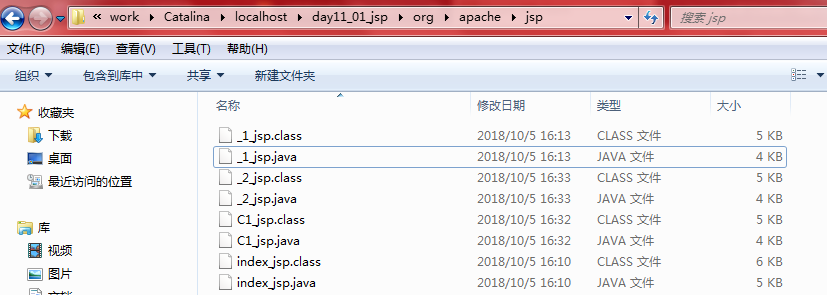

当我们通过欣赏器（:8080/day11_01_jsp（项目名称）/C1.jsp）会见C1.jsp时，处事器首先将C1.jsp翻译成一个C1_jsp.class，在Tomcat处事器的work\Catalina\localhost\项目名\org\apache\jsp目次下可以看到C1_jsp.class的源代码。（1.jsp翻译成_1_jsp.class）
C1_jap.java的代码：
/* * Generated by the Jasper component of Apache Tomcat * Version: Apache Tomcat/7.0.52 * Generated at: 2018-10-05 08:32:50 UTC * Note: The last modified time of this file was set to * the last modified time of the source file after * generation to assist with modification tracking. */ package org.apache.jsp; import javax.servlet.*; import javax.servlet.http.*; import javax.servlet.jsp.*; public final class C1_jsp extends org.apache.jasper.runtime.HttpJspBase implements org.apache.jasper.runtime.JspSourceDependent { private static final javax.servlet.jsp.JspFactory _jspxFactory = javax.servlet.jsp.JspFactory.getDefaultFactory(); private static java.util.Map<java.lang.String,java.lang.Long> _jspx_dependants; private javax.el.ExpressionFactory _el_expressionfactory; private org.apache.tomcat.InstanceManager _jsp_instancemanager; public java.util.Map<java.lang.String,java.lang.Long> getDependants() { return _jspx_dependants; } public void _jspInit() { _el_expressionfactory = _jspxFactory.getJspApplicationContext(getServletConfig().getServletContext()).getExpressionFactory(); _jsp_instancemanager = org.apache.jasper.runtime.InstanceManagerFactory.getInstanceManager(getServletConfig()); } public void _jspDestroy() { } public void _jspService(final javax.servlet.http.HttpServletRequest request, final javax.servlet.http.HttpServletResponse response) throws java.io.IOException, javax.servlet.ServletException { final javax.servlet.jsp.PageContext pageContext; javax.servlet.http.HttpSession session = null; final javax.servlet.ServletContext application; final javax.servlet.ServletConfig config; javax.servlet.jsp.JspWriter out = null; final java.lang.Object page = this; javax.servlet.jsp.JspWriter _jspx_out = null; javax.servlet.jsp.PageContext _jspx_page_context = null; try { response.setContentType("text/html; charset=UTF-8"); pageContext = _jspxFactory.getPageContext(this, request, response, null, true, 8192, true); _jspx_page_context = pageContext; application = pageContext.getServletContext(); config = pageContext.getServletConfig(); session = pageContext.getSession(); out = pageContext.getOut(); _jspx_out = out; out.write("\r\n"); out.write("<!DOCTYPE html PUBLIC \"-//W3C//DTD HTML 4.01 Transitional//EN\" \"http://www.w3.org/TR/html4/loose.dtd\">\r\n"); out.write("<html>\r\n"); out.write("<head>\r\n"); out.write("<meta http-equiv=\"Content-Type\" content=\"text/html; charset=ISO-8859-1\">\r\n"); out.write("<title>Insert title here</title>\r\n"); out.write("</head>\r\n"); out.write("<body>\r\n"); out.write("\tThis is my first JSP \r\n"); out.write("\t"); out.print("你好啊C1"); out.write("\r\n"); out.write("</body>\r\n"); out.write("</html>"); } catch (java.lang.Throwable t) { if (!(t instanceof javax.servlet.jsp.SkipPageException)){ out = _jspx_out; if (out != null && out.getBufferSize() != 0) try { out.clearBuffer(); } catch (java.io.IOException e) {} if (_jspx_page_context != null) _jspx_page_context.handlePageException(t); else throw new ServletException(t); } } finally { _jspxFactory.releasePageContext(_jspx_page_context); } } }

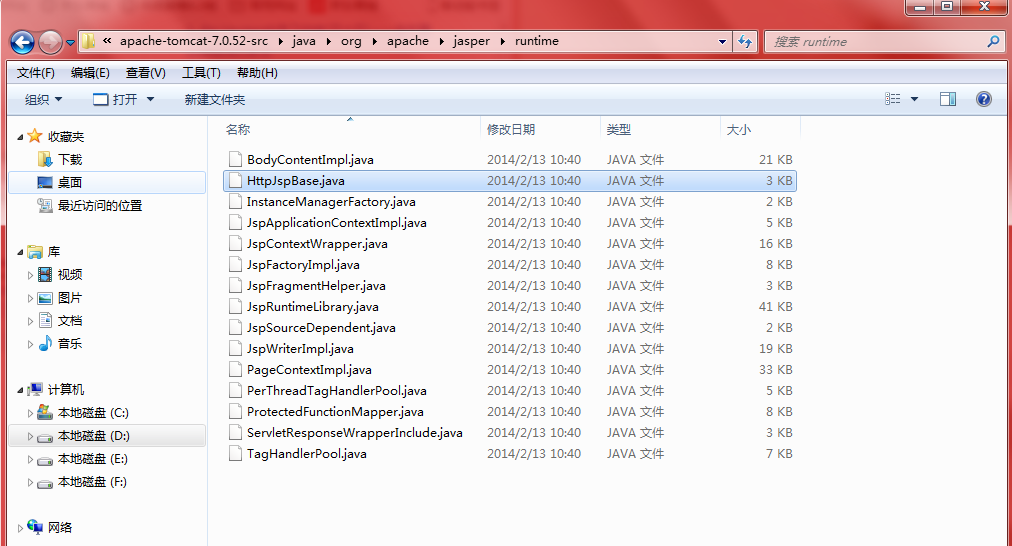

我们可以看到，C1_jsp这个类是担任 org.apache.jasper.runtime.HttpJspBase这个类的，通过查察Tomcat处事器的源代码，可以知道在apache-tomcat-6.0.20-src\java\org\apache\jasper\runtime目次下存HttpJspBase这个类的源代码文件，如下图所示：
HttpJsBase这个类的源代码：
/* * Licensed to the Apache Software Foundation (ASF) under one or more * contributor license agreements. See the NOTICE file distributed with * this work for additional information regarding copyright ownership. * The ASF licenses this file to You under the Apache License, Version 2.0 * (the "License"); you may not use this file except in compliance with * the License. You may obtain a copy of the License at * * * * Unless required by applicable law or agreed to in writing, software * distributed under the License is distributed on an "AS IS" BASIS, * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. * See the License for the specific language governing permissions and * limitations under the License. */ package org.apache.jasper.runtime; import java.io.IOException; import javax.servlet.ServletConfig; import javax.servlet.ServletException; import javax.servlet.http.HttpServlet; import javax.servlet.http.HttpServletRequest; import javax.servlet.http.HttpServletResponse; import javax.servlet.jsp.HttpJspPage; import org.apache.jasper.compiler.Localizer; /** * This is the super class of all JSP-generated servlets. * * @author Anil K. Vijendran */ public abstract class HttpJspBase extends HttpServlet implements HttpJspPage { private static final long serialVersionUID = 1L; protected HttpJspBase() { } @Override public final void init(ServletConfig config) throws ServletException { super.init(config); jspInit(); _jspInit(); } @Override public String getServletInfo() { return Localizer.getMessage("jsp.engine.info"); } @Override public final void destroy() { jspDestroy(); _jspDestroy(); } /** * Entry point into service. */ @Override public final void service(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException { _jspService(request, response); } @Override public void jspInit() { } public void _jspInit() { } @Override public void jspDestroy() { } protected void _jspDestroy() { } @Override public abstract void _jspService(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException; }
