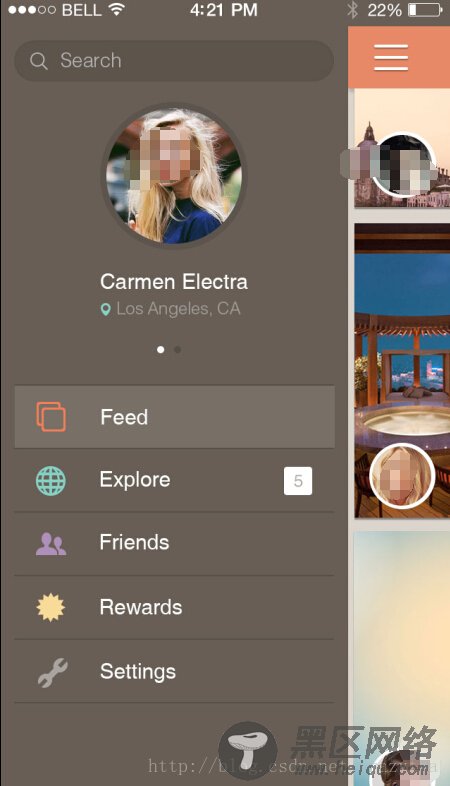

抽屉菜单是app上常见的菜单设计方式，典型的抽屉菜单如下图所示

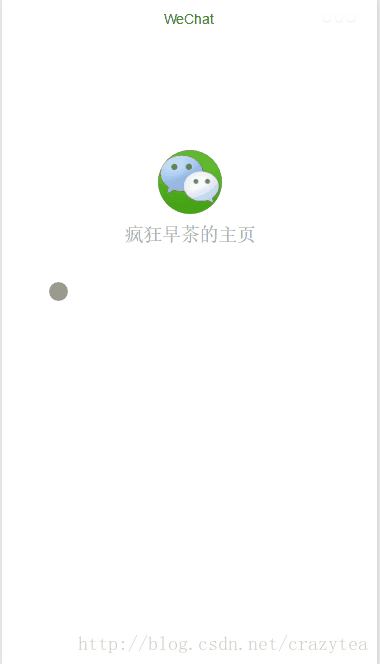

下面展示如何基于微信小程序实现抽屉菜单,最终效果如下图所示：
页面包含一个主页和抽屉菜单页，为了实现滑动效果，页面采用absolute布局，代码如下
index.wxml
<view animation='{{animationData}}' bindtouchstart='onMainPageTouchstart' catchtouchmove='onMainPageTouchmove' bindtouchend='onMainPageTouchend' bindtap='onMainPageTap'> <view> <image src="https://www.jb51.net/{{userInfo.avatarUrl}}" background-size="cover"></image> <text>{{userInfo.nickName}}</text> </view> </view> <view animation='{{animationData}}'> <view> <image src="https://www.jb51.net/{{userInfo.avatarUrl}}" background-size="cover"></image> <text>{{userInfo.nickName2}}</text> </view> </view>
index.wxss
.main-page { width:100%; height:2000rpx; position: absolute; top: 0; left: 0; padding: 200rpx 0; } .drawer-menu { width: 800rpx; height:2000rpx; position: absolute; top: 0; left: -800rpx; padding: 200rpx 0; background: rgba(22, 22, 22, 1); z-index: 800; }
程序绑定了主页的touch事件和tap事件，并且使用catchtouchmove阻止了move事件的传递，因为在真机环境下页面会自动响应滑动事件，注意不要catch start和end事件，这会导致无法触发tap事件。
首先定义一些数据来记录滑动过程和状态
drawerMenuMoveData: { check: false, //是否触发滑动操作 state:0, //0:初始状态 1:菜单弹出中状态 2:菜单弹入状态中 3:菜单弹出状态 firstTouchX:0, //首次触摸X坐标值 touchCheckX:60, //触发滑动的触摸X moveX:0, // 滑动操作横向的移动距离 maxMoveX: (app.globalData.deviceInfo.windowWidth - 60), //抽屉菜单最大移动距离 lastTranlateX: 0 //上次动画效果的平移距离，用于校准left值 },
之后就是滑动事件的响应处理
touchstart事件，首先判断当前状态，然后根据触摸位置判断是否激活滑动状态
onMainPageTouchstart: function(e) { var data = this.drawerMenuMoveData; var clientX = e.touches[0].clientX; //初识状态 if (data.state === 0) { if (clientX <= data.touchCheckX && clientX > 20) { data.check = true; data.state = 1; data.firstTouchX = clientX; } } //菜单弹出状态 else if (data.state === 3) { if (clientX >= data.maxMoveX) { data.check = true; data.state = 2; data.firstTouchX = clientX; } } },
touchmove 事件，首先判断是否处于滑动状态，之后根据当前模式来计算主页和菜单页的left值来产生滑动效果
onMainPageTouchmove: function(e) { var data = this.drawerMenuMoveData; var pixelRatio = app.globalData.deviceInfo.pixelRatio; if (data.check) { var mainPageLeft = 0, drawerMenuLeft = 0; var moveX = e.touches[0].clientX - data.firstTouchX; if (data.state === 1) { //处理边界状态 if (moveX < 0) { moveX = 0; } if (moveX > data.maxMoveX) { moveX = data.maxMoveX; } if (moveX >= 0 && moveX <= data.maxMoveX) { data.moveX = moveX; moveX = moveX - data.lastTranlateX; //px转为rpx moveX = moveX * pixelRatio; mainPageLeft = moveX; drawerMenuLeft = -800 + moveX; } } else if (data.state === 2) { //处理边界状态 if (moveX > 0) { moveX = 0; } if (moveX < -data.maxMoveX) { moveX = -data.maxMoveX; } if (moveX <= 0 && moveX >= -data.maxMoveX) { data.moveX = moveX; moveX = moveX - data.lastTranlateX; //px转为rpx moveX = moveX * pixelRatio; var maxMoveX = data.maxMoveX * pixelRatio; mainPageLeft = maxMoveX + moveX; drawerMenuLeft = maxMoveX -800 + moveX; } } this.setData({mainPageLeft: mainPageLeft, drawerMenuLeft: drawerMenuLeft}); } },
touchend事件 根据滑动的距离来判断菜单是否弹出，并创建滑动动画
onMainPageTouchend: function(e) { var data = this.drawerMenuMoveData; if (!data.check) { return; } data.check = false; data.firstTouchX = 0; var moveX = data.moveX; data.moveX = 0; var animation = wx.createAnimation({duration: 100}); var translateX = 0; var mainPageLeft = 0; var windowWidth = app.globalData.deviceInfo.windowWidth; if (data.state === 1) { if (moveX === 0 || moveX === data.maxMoveX) { data.state = (moveX === 0) ? 0 : 3; return; } mainPageLeft = moveX; //滑动距离是否超过窗口宽度一半 if (mainPageLeft > (windowWidth / 2)) { translateX = data.maxMoveX - moveX; data.state = 3; } else { translateX = -moveX; data.state = 0; } } else if (data.state === 2) { if (moveX === 0 || moveX === -data.maxMoveX) { data.state = (moveX === 0) ? 3 : 0; return; } //滑动距离是否超过窗口宽度一半 mainPageLeft = data.maxMoveX + moveX if (mainPageLeft > (windowWidth / 2)) { translateX = -moveX; data.state = 3; } else { translateX = -mainPageLeft; data.state = 0; } } translateX += data.lastTranlateX; data.lastTranlateX = translateX; animation.translateX(translateX).step(); this.setData({ animationData:animation.export() }); },
tap事件, 如果当前是弹出状态，则将菜单弹回
