eCos Configuration Tool build on ubuntu 10.04 AMD64

这篇主要解决eCos的配置工具运行在Ubuntu 64bit上的诸多问题。

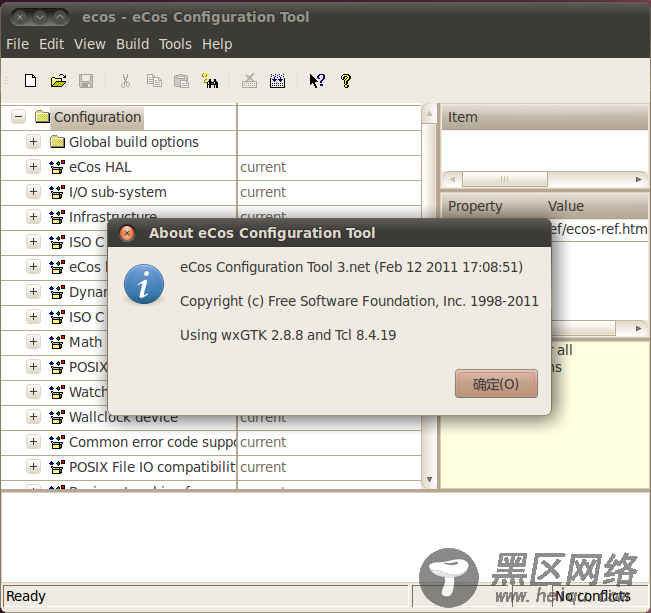

先放截图,要不然大家看到代码头疼就看不到真相了。可以从Linux公社的资源服务器中下载打包的文件。 免费的

免费下载地址在

用户名与密码都是

具体下载目录在 /2011年资料/嵌入式Linux/eCos Configuration Tool build on ubuntu 10.04 AMD64/

eCos Configuration Tool build on ubuntu 10.04 AMD64

我们暂且把ecoscentric提供的方法附上

需要的资源

hg clone wxGTK-2.8.8.tar.bz2 (for Linux/GTK+) Building for Linux/GTK+

The following instructions assume that you are working at a bash prompt and that the GTK+ and Tcl libraries have been installed from your Linux distribution. First, extract the wxWidgets sources:

mkdir ~/src cd ~/src bunzip2 -c wxGTK-2.8.8.tar.bz2 | tar xf - cd wxGTK-2.8.8

Configure wxWidgets for static linking without socket support, then build and install:

mkdir ~/wx-build cd ~/wx-build $HOME/src/wxGTK-2.8.8/configure --disable-shared /     --disable-sockets --prefix=$HOME/wxGTK-2.8.8 make make install

Configure, build and install the eCos host infrastructure:

mkdir ~/infra-build cd ~/infra-build $HOME/cvs/ecos/host/configure --prefix=$HOME/ecos-tools make make install

Build and install the eCos Configuration Tool (INSTALLDIR must match the eCos host infrastructure prefix):

mkdir ~/configtool-build cd ~/configtool-build make -f ~/cvs/ecos/host/tools/configtool/standalone/wxwin/makefile.gnu /     install WXDIR=$HOME/wxGTK-2.8.8 ECOSSRCDIR=$HOME/cvs/ecos/host /     INSTALLDIR=$HOME/ecos-tools

The eCos Configuration Tool binary should now be located at: ~/ecos-tools/bin/configtool

实际过程中,因为操作系统是64位的问题,会有int指针类型和tcl,tk的错误。

1)遇到tcl,tk错误的时候

你需要做如下的link

ricky@ricky-laptop:/usr/local/libexec/ecos/hal/synth/arch/share$ ls -al

总用量 8

drwxr-xr-x 2 root root 4096 2011-01-28 11:58 .

drwxr-xr-x 4 root root 4096 2011-01-28 11:45 ..

lrwxrwxrwx 1 root root   23 2011-01-28 11:58 tcl8.3 -> /usr/local/share/tcl8.3

lrwxrwxrwx 1 root root   22 2011-01-28 11:58 tk8.3 -> /usr/local/share/tk8.3

ricky@ricky-laptop:/usr/local/libexec/ecos/hal/synth/arch/share$
