Android定位和地图开发实例(3)

[html]

public class MyMapActivity extends MapActivity {       /** Called when the activity is first created. */       private MapController mapController;       private MapView mapView;       private MyOverLay myOverLay;               @Override       public void onCreate(Bundle savedInstanceState) {           super.onCreate(savedInstanceState);           setContentView(R.layout.main);                     LocationManager locationManager=(LocationManager) getSystemService(Context.LOCATION_SERVICE);           mapView=(MapView) this.findViewById(R.id.mapview);           //设置交通模式           mapView.setTraffic(true);           //设置卫星模式           mapView.setSatellite(false);           //设置街景模式           mapView.setStreetView(false);           //设置缩放控制           mapView.setBuiltInZoomControls(true);           mapView.setClickable(true);           mapView.setEnabled(true);           //得到MapController实例            mapController=mapView.getController();           mapController.setZoom(15);                      myOverLay=new MyOverLay();           List<Overlay> overLays=mapView.getOverlays();           overLays.add(myOverLay);                      Criteria criteria=new Criteria();           criteria.setAccuracy(Criteria.ACCURACY_FINE);           criteria.setAltitudeRequired(false);           criteria.setBearingRequired(false);           criteria.setCostAllowed(false);           criteria.setPowerRequirement(Criteria.POWER_LOW);           //取得效果最好的Criteria           String provider=locationManager.getBestProvider(criteria, true);           //得到Location           Location location=locationManager.getLastKnownLocation(provider);           updateWithLocation(location);           //注册一个周期性的更新,3秒一次           locationManager.requestLocationUpdates(provider, 3000, 0, locationListener);                  }       @Override       public boolean onCreateOptionsMenu(Menu menu) {           // TODO Auto-generated method stub           menu.add(0, 1, 1, "交通模式");           menu.add(0,2,2,"卫星模式");           menu.add(0,3,3,"街景模式");                      return super.onCreateOptionsMenu(menu);       }       @Override       public boolean onOptionsItemSelected(MenuItem item) {           // TODO Auto-generated method stub            super.onOptionsItemSelected(item);            switch (item.getItemId()) {           case 1://交通模式               mapView.setTraffic(true);               mapView.setSatellite(false);               mapView.setStreetView(false);               break;           case 2://卫星模式               mapView.setSatellite(true);               mapView.setStreetView(false);               mapView.setTraffic(false);               break;           case 3://街景模式               mapView.setStreetView(true);               mapView.setTraffic(false);               mapView.setSatellite(false);               break;           default:               mapView.setTraffic(true);               mapView.setSatellite(false);               mapView.setStreetView(false);               break;           }           return true;       }       private void updateWithLocation(Location location){           if(location!=null){               //为绘制类设置坐标               myOverLay.setLocation(location);               GeoPoint geoPoint=new GeoPoint((int)(location.getLatitude()*1E6), (int)(location.getLongitude()*1E6));               //定位到指定的坐标               mapController.animateTo(geoPoint);               mapController.setZoom(15);           }       }       private final LocationListener locationListener=new LocationListener() {                      @Override           public void onStatusChanged(String provider, int status, Bundle extras) {               // TODO Auto-generated method stub                          }                      @Override           public void onProviderEnabled(String provider) {               // TODO Auto-generated method stub                          }                      @Override           public void onProviderDisabled(String provider) {               // TODO Auto-generated method stub                          }           //当坐标改变时出发此函数           @Override           public void onLocationChanged(Location location) {               // TODO Auto-generated method stub               updateWithLocation(location);           }       };       class MyOverLay extends Overlay{                      private Location location;           public void setLocation(Location location){               this.location=location;           }                      @Override           public boolean draw(Canvas canvas, MapView mapView, boolean shadow,                   long when) {               // TODO Auto-generated method stub               super.draw(canvas, mapView, shadow);               Paint paint=new Paint();               Point myScreen=new Point();               //将经纬度换成实际屏幕的坐标。               GeoPoint geoPoint=new GeoPoint((int)(location.getLatitude()*1E6), (int)(location.getLongitude()*1E6));               mapView.getProjection().toPixels(geoPoint, myScreen);               paint.setStrokeWidth(1);               paint.setARGB(255, 255, 0, 0);               paint.setStyle(Paint.Style.STROKE);               Bitmap bmp=BitmapFactory.decodeResource(getResources(), R.drawable.mypicture);               //把这张图片画到相应的位置。               canvas.drawBitmap(bmp, myScreen.x, myScreen.y,paint);               canvas.drawText("天堂没有路", myScreen.x, myScreen.y, paint);               return true;                          }       }       @Override       protected boolean isRouteDisplayed() {           // TODO Auto-generated method stub           return false;       }       @Override       public boolean onKeyDown(int keyCode, KeyEvent event) {           // TODO Auto-generated method stub              if (keyCode == KeyEvent.KEYCODE_BACK) {               AlertDialog.Builder builder = new AlertDialog.Builder(this);               builder.setMessage("你确定退出吗?")                       .setCancelable(false)                       .setPositiveButton("确定",                               new DialogInterface.OnClickListener() {                                   public void onClick(DialogInterface dialog,                                           int id) {                                       MyMapActivity.this.finish();                                       android.os.Process                                               .killProcess(android.os.Process                                                       .myPid());                                         android.os.Process.killProcess(android.os.Process.myTid());                                         android.os.Process.killProcess(android.os.Process.myUid());                                   }                               })                       .setNegativeButton("返回",                               new DialogInterface.OnClickListener() {                                   public void onClick(DialogInterface dialog,                                           int id) {                                       dialog.cancel();                                   }                               });               AlertDialog alert = builder.create();               alert.show();               return true;           }              return super.onKeyDown(keyCode, event);       }   }

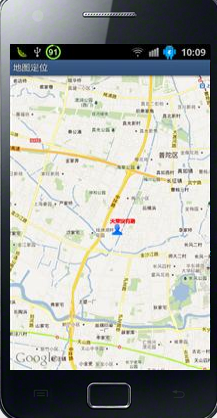

接下来看一下运行后效果:

Android定位和地图开发实例

可以放大缩小:

Android定位和地图开发实例

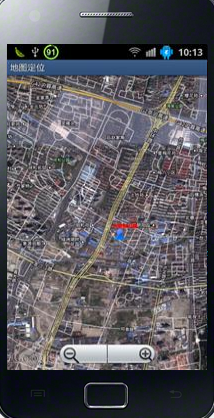

可是使用menu键,切换不同的模式:

Android定位和地图开发实例
