准备 COCO128 数据集，其是 COCO train2017 前 128 个数据。按 YOLOv5 组织的目录：
$ tree ~/datasets/coco128 -L 2 /home/john/datasets/coco128 ├── images │ └── train2017 │ ├── ... │ └── 000000000650.jpg ├── labels │ └── train2017 │ ├── ... │ └── 000000000650.txt ├── LICENSE └── README.txt详见 Train Custom Data。
定义 Datasettorch.utils.data.Dataset 是一个数据集的抽象类。自定义数据集时，需继承 Dataset 并覆盖如下方法：
__len__: len(dataset) 获取数据集大小。
__getitem__: dataset[i] 访问第 i 个数据。
详见：
torchvision.datasets.vision.VisionDataset
自定义实现 YOLOv5 数据集的例子：
import os from pathlib import Path from typing import Any, Callable, Optional, Tuple import numpy as np import torch import torchvision from PIL import Image class YOLOv5(torchvision.datasets.vision.VisionDataset): def __init__( self, root: str, name: str, transform: Optional[Callable] = None, target_transform: Optional[Callable] = None, transforms: Optional[Callable] = None, ) -> None: super(YOLOv5, self).__init__(root, transforms, transform, target_transform) images_dir = Path(root) / 'images' / name labels_dir = Path(root) / 'labels' / name self.images = [n for n in images_dir.iterdir()] self.labels = [] for image in self.images: base, _ = os.path.splitext(os.path.basename(image)) label = labels_dir / f'{base}.txt' self.labels.append(label if label.exists() else None) def __getitem__(self, idx: int) -> Tuple[Any, Any]: img = Image.open(self.images[idx]).convert('RGB') label_file = self.labels[idx] if label_file is not None: # found with open(label_file, 'r') as f: labels = [x.split() for x in f.read().strip().splitlines()] labels = np.array(labels, dtype=np.float32) else: # missing labels = np.zeros((0, 5), dtype=np.float32) boxes = [] classes = [] for label in labels: x, y, w, h = label[1:] boxes.append([ (x - w/2) * img.width, (y - h/2) * img.height, (x + w/2) * img.width, (y + h/2) * img.height]) classes.append(label[0]) target = {} target["boxes"] = torch.as_tensor(boxes, dtype=torch.float32) target["labels"] = torch.as_tensor(classes, dtype=torch.int64) if self.transforms is not None: img, target = self.transforms(img, target) return img, target def __len__(self) -> int: return len(self.images)以上实现，继承了 VisionDataset 子类。其 __getitem__ 返回了：
image: PIL Image, 大小为 (H, W)
target: dict, 含以下字段：
boxes (FloatTensor[N, 4]): 真实标注框 [x1, y1, x2, y2], x 范围 [0,W], y 范围 [0,H]
labels (Int64Tensor[N]): 上述标注框的类别标识
读取 Dataset dataset = YOLOv5(Path.home() / 'datasets/coco128', 'train2017') print(f'dataset: {len(dataset)}') print(f'dataset[0]: {dataset[0]}')输出：

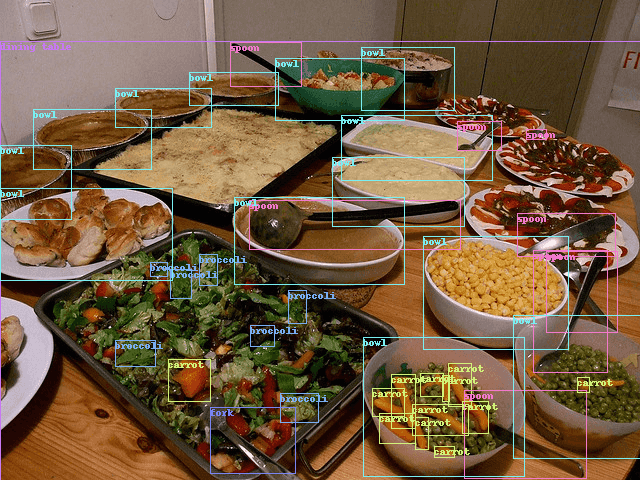

dataset: 128 dataset[0]: (<PIL.Image.Image image mode=RGB size=640x480 at 0x7F6F9464ADF0>, {'boxes': tensor([[249.7296, 200.5402, 460.5399, 249.1901], [448.1702, 363.7198, 471.1501, 406.2300], ... [ 0.0000, 188.8901, 172.6400, 280.9003]]), 'labels': tensor([44, 51, 51, 51, 51, 44, 44, 44, 44, 44, 45, 45, 45, 45, 45, 45, 45, 45, 45, 50, 50, 50, 51, 51, 60, 42, 44, 45, 45, 45, 50, 51, 51, 51, 51, 51, 51, 44, 50, 50, 50, 45])})预览：
训练需要批量提取数据，可以使用 DataLoader ：
dataset = YOLOv5(Path.home() / 'datasets/coco128', 'train2017', transform=torchvision.transforms.Compose([ torchvision.transforms.ToTensor() ])) dataloader = DataLoader(dataset, batch_size=64, shuffle=True, collate_fn=lambda batch: tuple(zip(*batch))) for batch_i, (images, targets) in enumerate(dataloader): print(f'batch {batch_i}, images {len(images)}, targets {len(targets)}') print(f' images[0]: shape={images[0].shape}') print(f' targets[0]: {targets[0]}')输出：
batch 0, images 64, targets 64 images[0]: shape=torch.Size([3, 480, 640]) targets[0]: {'boxes': tensor([[249.7296, 200.5402, 460.5399, 249.1901], [448.1702, 363.7198, 471.1501, 406.2300], ... [ 0.0000, 188.8901, 172.6400, 280.9003]]), 'labels': tensor([44, 51, 51, 51, 51, 44, 44, 44, 44, 44, 45, 45, 45, 45, 45, 45, 45, 45, 45, 50, 50, 50, 51, 51, 60, 42, 44, 45, 45, 45, 50, 51, 51, 51, 51, 51, 51, 44, 50, 50, 50, 45])} batch 1, images 64, targets 64 images[0]: shape=torch.Size([3, 248, 640]) targets[0]: {'boxes': tensor([[337.9299, 167.8500, 378.6999, 191.3100], [383.5398, 148.4501, 452.6598, 191.4701], [467.9299, 149.9001, 540.8099, 193.2401], [196.3898, 142.7200, 271.6896, 190.0999], [134.3901, 154.5799, 193.9299, 189.1699], [ 89.5299, 162.1901, 124.3798, 188.3301], [ 1.6701, 154.9299, 56.8400, 188.3700]]), 'labels': tensor([20, 20, 20, 20, 20, 20, 20])} 源码datasets.py
test_datasets.py
参考Loading data in PyTorch
Datasets & Dataloaders
Writing Custom Datasets, DataLoaders and Transforms
APIs:
torch.utils.data
torchvision.datasets
