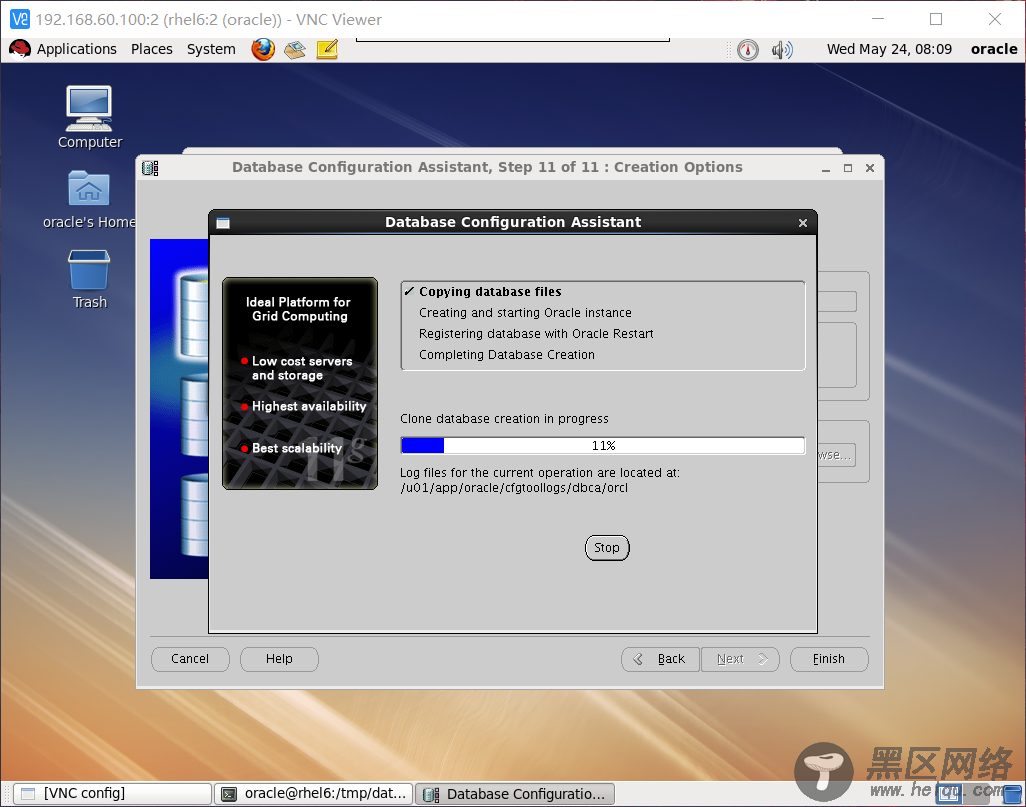

创建数据库中...

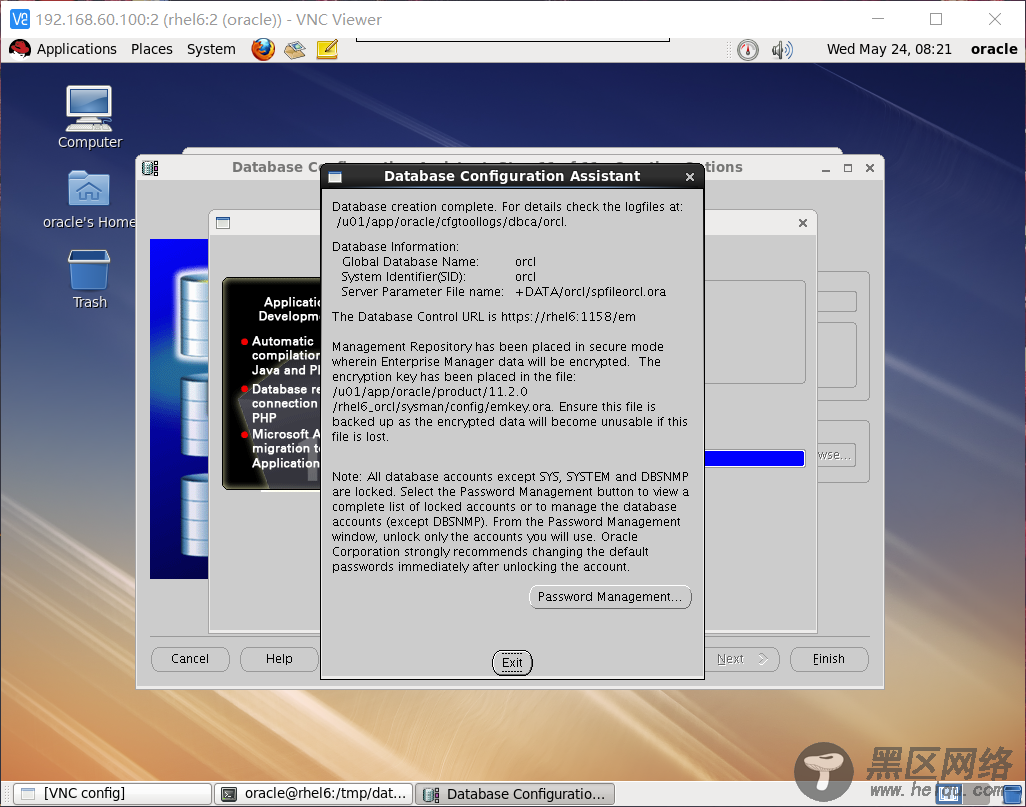

数据库安装完成
以grid用户查看集群状态及监听状态
[grid@rhel6:/home/grid]$crsctl status resource -t
--------------------------------------------------------------------------------
NAME TARGET STATE SERVER STATE_DETAILS
--------------------------------------------------------------------------------
Local Resources
--------------------------------------------------------------------------------
ora.DATA.dg
ONLINE ONLINE rhel6
ora.DSG.dg
ONLINE ONLINE rhel6
ora.LISTENER.lsnr
ONLINE ONLINE rhel6
ora.asm
ONLINE ONLINE rhel6 Started
ora.ons
OFFLINE OFFLINE rhel6
--------------------------------------------------------------------------------
Cluster Resources
--------------------------------------------------------------------------------
ora.cssd
1 ONLINE ONLINE rhel6
ora.diskmon
1 OFFLINE OFFLINE
ora.evmd
1 ONLINE ONLINE rhel6
ora.orcl.db
1 ONLINE ONLINE rhel6 Open
------------------------------------------------------------------------
[grid@rhel6:/home/grid]$lsnrctl status
LSNRCTL for Linux: Version 11.2.0.4.0 - Production on 24-MAY-2017 08:28:36
Copyright (c) 1991, 2013, Oracle. All rights reserved.
Connecting to (DESCRIPTION=(ADDRESS=(PROTOCOL=IPC)(KEY=EXTPROC1521)))
STATUS of the LISTENER
------------------------
Alias LISTENER
Version TNSLSNR for Linux: Version 11.2.0.4.0 - Production
Start Date 24-MAY-2017 07:15:42
Uptime 0 days 1 hr. 12 min. 53 sec
Trace Level off
Security ON: Local OS Authentication
SNMP OFF
Listener Parameter File /u01/app/11.2.0/grid/network/admin/listener.ora
Listener Log File /u01/app/grid/diag/tnslsnr/rhel6/listener/alert/log.xml
Listening Endpoints Summary...
(DESCRIPTION=(ADDRESS=(PROTOCOL=ipc)(KEY=EXTPROC1521)))
(DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=rhel6)(PORT=1521)))
Services Summary...
Service "+ASM" has 1 instance(s).
Instance "+ASM", status READY, has 1 handler(s) for this service...
Service "orcl" has 1 instance(s).
Instance "orcl", status READY, has 1 handler(s) for this service...
Service "orclXDB" has 1 instance(s).
Instance "orcl", status READY, has 1 handler(s) for this service...
The command completed successfully
以oracle用户登录连接数据库，查询表空间
[oracle@rhel6 database]$ sqlplus / as sysdba
SQL*Plus: Release 11.2.0.4.0 Production on Wed May 24 08:27:56 2017
Copyright (c) 1982, 2013, Oracle. All rights reserved.
Connected to:
Oracle Database 11g Enterprise Edition Release 11.2.0.4.0 - 64bit Production
With the Partitioning, Automatic Storage Management, OLAP, Data Mining
and Real Application Testing options
SQL> select * from V$TABLESPACE;
TS# NAME INC BIG FLA ENC
---------- ------------------------------ --- --- --- ---
0 SYSTEM YES NO YES
1 SYSAUX YES NO YES
2 UNDOTBS1 YES NO YES
4 USERS YES NO YES
3 TEMP NO NO YES
6 EXAMPLE YES NO YES
6 rows selected.
在此，Rhel Linux环境下的udev + ASM Oracle 11gR2安装部署完成，状态正常。
