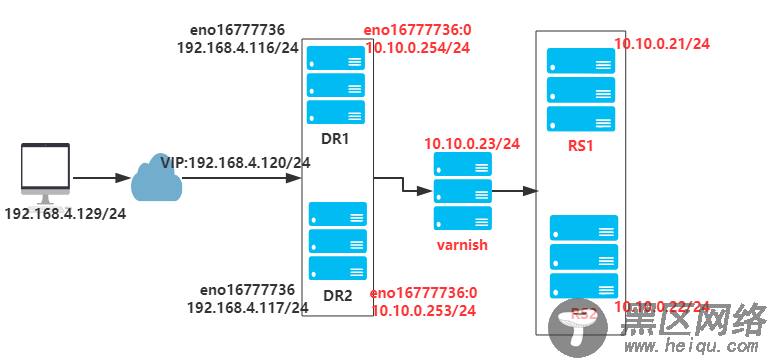

基于Keepalived+Varnish+Nginx实现的高可用LAMP架构
注意：各节点的时间需要同步（ntpdate ntp1.aliyun.com），关闭firewalld（systemctl stop firewalld.service，systemctl disable firewalld.service），设置selinux为permissive（setenforce 0 或 vim /etc/selinux/config）；同时确保DR1和DR2节点的网卡支持MULTICAST（多播）通信。通过命令ifconfig可以查看到是否开启了MULTICAST：
搭建RS1（RS1提供mariadb服务和静态资源）
[root@RS1 Desktop]# yum -y install mariadb-server httpd
[root@RS1 Desktop]# vim /etc/my.cnf
[MySQLd]
...
skip-name-resolve=ON
innodb-file-per-table=ON
...
[root@RS1 Desktop]# systemctl start mariadb
[root@RS1 Desktop]# mysql_secure_installation #进行数据库相关安全设置
...
[root@RS1 Desktop]# mysql -uroot -p
Enter password:
MariaDB [(none)]> create database wordpress;
MariaDB [(none)]> grant all on wordpress.* to 'wpuser'@'10.10.0.%' identified by '123456';
MariaDB [(none)]> flush privileges;
MariaDB [(none)]> exit;
[root@RS1 Desktop]# wget https://cn.wordpress.org/wordpress-4.9.4-zh_CN.tar.gz
[root@RS1 Desktop]# tar xf wordpress-4.9.4-zh_CN.tar.gz -C /var/www/html
[root@RS1 Desktop]# vim /var/www/html/index.html
<h1>10.10.0.21 server</h1>
[root@RS1 Desktop]# vim /etc/httpd/conf.d/vhost.conf
<virtualhost *:80>
servername
DirectoryIndex index.html index.php
Documentroot /var/www/html
ProxyRequests off
ProxyPassMatch ^/(.*\.php)$ fcgi://10.10.0.22:9000/var/www/html/$1
ProxyPassMatch ^/(ping|status)$ fcgi://10.10.0.22:9000/$1
<Directory />
options FollowSymlinks
Allowoverride none
Require all granted
</Directory>
</virtualhost>
[root@RS1 Desktop]# systemctl start httpd
[root@RS1 Desktop]# /var/www/html/wordpress/wp-config-sample.php /var/www/html/wordpress/wp-config.php
[root@RS1 Desktop]# vim /var/www/html/wordpress/wp-config.php #关联wordpress数据库
define('DB_NAME', 'wordpress');
define('DB_USER', 'wpuser');
define('DB_PASSWORD', '123456');
define('DB_HOST', '10.10.0.21');
[root@RS1 Desktop]# scp /var/www/html/wordpress 10.10.0.22:/var/www/html/ #复制wordpress到22的主机
搭建RS2（RS2提供动态资源）
[root@RS2 Desktop]# yum -y httpd php-fpm php-mysql php-mbstring php-mcrypt
[root@RS2 Desktop]# vim /var/www/html/index.html
<h1>10.10.0.22 server</h1>
[root@RS2 Desktop]# vim /etc/httpd/conf.d/vhost.conf
<virtualhost *:80>
servername
DirectoryIndex index.html index.php
Documentroot /var/www/html
ProxyRequests off
ProxyPassMatch ^/(.*\.php)$ fcgi://127.0.0.1:9000/var/www/html/$1
ProxyPassMatch ^/(ping|status)$ fcgi://127.0.0.1:9000/$1
<Directory />
options FollowSymlinks
Allowoverride none
Require all granted
</Directory>
</virtualhost>
[root@RS2 Desktop]# systemctl start httpd
[root@RS2 Desktop]# vim /etc/php-fpm.d/www.conf
listen = 0.0.0.0:9000
; listen.allowed_clients = 127.0.0.1 #注释此句，允许其他主机远程访问
pm.status_path = /status
ping.path = /ping
ping.response = pong
[root@RS2 Desktop]# chown apache:apache /var/lib/php/session
[root@RS2 Desktop]# systemctl start php-fpm
[root@DR1 Desktop]# yum install -y nginx keepalived
[root@DR1 Desktop]# vim /etc/nginx/nginx/conf #配置nginx反代
http {
...
upstream websrvs {
server 10.10.0.21:80;
server 10.10.0.22:80;
server 127.0.0.1:80 backup;
}
server {
listen 80;
include /etc/nginx/default.d/*.conf;
location / {
proxy_pass ;
proxy_set_header host $http_host;
proxy_set_header X-Forward-For $remote_addr;
}
...
}
[root@DR1 Desktop]# vim /etc/nginx/conf.d/localhost.conf #配置nginx本地服务
server{
listen 127.0.0.1:80;
root /usr/share/nginx/html;
index index.html;
}
[root@DR1 Desktop]# vim /usr/share/nginx/html/index.html
<h1>Balance Server DR1</h1>
[root@DR1 Desktop]# nginx -t #检查nginx语法
[root@DR1 Desktop]# systemctl start nginx
[root@DR1 Desktop]# vim /etc/keepalived/keepalived.conf #配置keepalived
global_defs {
notification_email {
root@localhost
}
notification_email_from keepalived@localhost
smtp_server 127.0.0.1
smtp_connect_timeout 30
router_id dr1
vrrp_skip_check_adv_addr
vrrp_mcast_group4 224.0.0.111
}
vrrp_script chk_ngx { #检查此服务器的nginx进程是否存在，如果不存在则减权
#kill -0 PID，0信号量不发送任何信号但系统会进行错误检查，经常用来检查一个进程是否存在，存在返回0，不存在返回1
script "killall -0 nginx 2> /dev/null && exit 0 || exit 1"
weight -10
interval 1
fall 3
rise 3
}
vrrp_instance VIP_1 {
state MASTER
interface eno16777736
virtual_router_id 1
priority 100
advert_int 1
authentication {
auth_type PASS
auth_pass 1111@#$%
}
track_script {
chk_ngx
}
virtual_ipaddress {
192.168.4.120/24 dev eno16777736 label eno16777736:0
}
[root@DR1 Desktop]# systemctl start keepalived.service
