Android UI开发详解之模板控件的复用

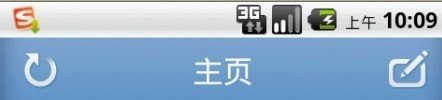

我们很多程序的界面中,顶部的TopBar是不变的,所以,我们可以做一个公用的控件模板,每次使用时,只要设置相应的参数,就能生成这样一个TopBar。

模板控件实现方法:

package com.xys.multiplexedmodule;

import android.content.Context;
import android.content.res.TypedArray;
import android.graphics.Color;
import android.graphics.drawable.Drawable;
import android.text.TextUtils.TruncateAt;
import android.util.AttributeSet;
import android.view.Gravity;
import android.view.View;
import android.view.ViewGroup;
import android.widget.Button;
import android.widget.RelativeLayout;
import android.widget.TextView;

public class MultipleTopBar extends RelativeLayout{

 private Button btn_left;
 private Button btn_right;
 private TextView tv_title;

 private TopBarClickListener topBarClickListener;
 private String str_title;

 private RelativeLayout.LayoutParams leftButtonLayoutParams;
 private RelativeLayout.LayoutParams rightButtonLayoutParams;
 private RelativeLayout.LayoutParams tvTitleLayoutParams;

 private static int leftBtnId=1;
 private static int titleTvId=2;
 private static int rightBtnId=3;

 private Drawable leftBtnBackground;
 private Drawable rightBtnBackground;

 private String str_LeftBtn;
 private String str_RightBtn;
 private int leftBtnColor;
 private int rightBtnColor;
 private int titleTvColor;

 private float titleTextSize;

 public MultipleTopBar(Context context, AttributeSet attrs) {
  super(context, attrs);
  // TODO Auto-generated constructor stub
  //从参数列表中获取参数
  //TypedArray实例是个属性的容器,context.obtainStyledAttributes()方法返回得到。AttributeSet是节点的属性集合
  //第二个参数为 为获取到值时的默认值
  TypedArray ta=context.obtainStyledAttributes(attrs,R.styleable.TopBar);
  this.str_title=ta.getString(R.styleable.TopBar_title);
  this.leftBtnBackground=ta.getDrawable(R.styleable.TopBar_leftBackground);
  this.rightBtnBackground=ta.getDrawable(R.styleable.TopBar_rightBackground);
  this.str_LeftBtn=ta.getString(R.styleable.TopBar_leftText);
  this.str_RightBtn=ta.getString(R.styleable.TopBar_rightText);
  this.leftBtnColor=ta.getColor(R.styleable.TopBar_leftTextColor, 0);
  this.rightBtnColor=ta.getColor(R.styleable.TopBar_rightTextColor, 0);
  this.titleTextSize=ta.getDimension(R.styleable.TopBar_titleTextSize, 14);
  this.titleTvColor=ta.getColor(R.styleable.TopBar_titleTextColor, 0);

  ta.recycle();

  btn_left=new Button(context);
  btn_right=new Button(context);
  tv_title=new TextView(context);

  btn_left.setId(leftBtnId);
  btn_right.setId(rightBtnId);
  tv_title.setId(titleTvId);

  //为组件配置布局参数
  leftButtonLayoutParams=new RelativeLayout.LayoutParams(ViewGroup.LayoutParams.WRAP_CONTENT,ViewGroup.LayoutParams.WRAP_CONTENT);
  rightButtonLayoutParams=new RelativeLayout.LayoutParams(ViewGroup.LayoutParams.WRAP_CONTENT,ViewGroup.LayoutParams.WRAP_CONTENT);
  tvTitleLayoutParams=new RelativeLayout.LayoutParams(ViewGroup.LayoutParams.WRAP_CONTENT,ViewGroup.LayoutParams.WRAP_CONTENT);

  leftButtonLayoutParams.addRule(RelativeLayout.ALIGN_PARENT_LEFT,RelativeLayout.TRUE);
  leftButtonLayoutParams.setMargins(12, 0, 0, 0);//左上右下
  leftButtonLayoutParams.addRule(RelativeLayout.CENTER_VERTICAL, RelativeLayout.TRUE);

  rightButtonLayoutParams.addRule(RelativeLayout.ALIGN_PARENT_RIGHT,RelativeLayout.TRUE);
  rightButtonLayoutParams.setMargins(0, 0, 12, 0);//左上右下
  rightButtonLayoutParams.addRule(RelativeLayout.CENTER_VERTICAL, RelativeLayout.TRUE);

  tvTitleLayoutParams.setMargins(12, 0, 12, 0);//左上右下
  tvTitleLayoutParams.addRule(RelativeLayout.CENTER_VERTICAL, RelativeLayout.TRUE);
  tvTitleLayoutParams.addRule(RelativeLayout.LEFT_OF, rightBtnId);
  tvTitleLayoutParams.addRule(RelativeLayout.RIGHT_OF, leftBtnId);
  //tvTitleLayoutParams.addRule(RelativeLayout.CENTER_IN_PARENT, RelativeLayout.TRUE);
  tv_title.setGravity(Gravity.CENTER);
  tv_title.setBackgroundColor(leftBtnColor);

        addView(btn_left, leftButtonLayoutParams);
        addView(btn_right,rightButtonLayoutParams);
        addView(tv_title,tvTitleLayoutParams);

        //btn_left.setBackgroundDrawable(leftBtnBackground);
        btn_left.setText(str_LeftBtn);
        btn_left.setTextColor(leftBtnColor);
        //btn_right.setBackgroundDrawable(rightBtnBackground);
        btn_right.setText(str_RightBtn);
        btn_right.setTextColor(rightBtnColor);

        tv_title.setTextSize(22.0f);
        tv_title.setTextColor(Color.BLUE);
        tv_title.setEllipsize(TruncateAt.MIDDLE);
        tv_title.setGravity(Gravity.CENTER_HORIZONTAL|Gravity.CENTER_VERTICAL);
        tv_title.setSingleLine(true);
        tv_title.setText(str_title);
        tv_title.setTextSize(titleTextSize);
        tv_title.setTextColor(titleTvColor);

        btn_left.setOnClickListener(new OnClickListener() {
    @Override
    public void onClick(View v) {
     // TODO Auto-generated method stub
     if(topBarClickListener!=null){
                        topBarClickListener.leftBtnClick();
                }
    }
        });

        btn_right.setOnClickListener(new OnClickListener() {
                @Override
                public void onClick(View v) {
                        if(topBarClickListener!=null){
                                topBarClickListener.rightBtnClick();
                        }
                }
        });

 }

 /*
  * 单击监听事件
  */
 public void setTopBarClickListener(TopBarClickListener topBarClickListener){
  this.topBarClickListener=topBarClickListener;
 }
}
