Generator 代码生成 _ _ _ _ (_) | | | | | | ___ _ __ _ __ _ _ __ __ _ ______| |__ ___ ___ | |_ ______ _ __ | |_ _ ___ / __| '_ \| '__| | '_ \ / _` |______| '_ \ / _ \ / _ \| __|______| '_ \| | | | / __| \__ \ |_) | | | | | | | (_| | | |_) | (_) | (_) | |_ | |_) | | |_| \__ \ |___/ .__/|_| |_|_| |_|\__, | |_.__/ \___/ \___/ \__| | .__/|_|\__,_|___/ | | __/ | | | |_| |___/ |_| :: Spring Boot :: (v2.1.6.RELEASE) :: Spring Boot Plus :: (v1.0.0.RELEASE) 代码生成方法
创建数据库表,例如:sys_log
注意:记得加上表注释,字段列注释,方便生成类注释、swagger注释
-- ---------------------------- -- Table structure for sys_log -- ---------------------------- DROP TABLE IF EXISTS `sys_log`; CREATE TABLE `sys_log` ( `log_id` bigint(18) NOT NULL COMMENT '主键', `type` tinyint(1) NULL DEFAULT NULL COMMENT '类型', `content` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '内容', `create_id` bigint(18) NULL DEFAULT NULL COMMENT '创建人ID', `create_time` datetime(0) NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间', PRIMARY KEY (`log_id`) USING BTREE ) ENGINE = InnoDB CHARACTER SET = utf8 COLLATE = utf8_general_ci COMMENT = '系统日志' ROW_FORMAT = Dynamic;代码生成配置

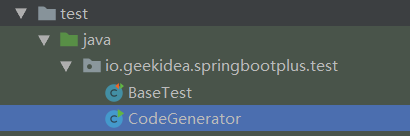

spring-boot-plus/src/test/java/io/geekidea/springbootplus/test/CodeGenerator.java2.1 修改数据库连接配置
private static final String USER_NAME = "root"; private static final String PASSWORD = "rootroot"; private static final String DRIVER_NAME = "com.mysql.jdbc.Driver"; private static final String DRIVER_URL = "jdbc:mysql://localhost:3306/spring_boot_plus?useUnicode=true&characterEncoding=UTF-8&useSSL=false";2.2 修改模块、表、作者等配置
// ############################ 配置部分 start ############################ // 模块名称 private static final String MODULE_NAME = "system"; // 作者 private static final String AUTHOR = "geekidea"; // 生成的表名称 private static final String TABLE_NAME = "sys_log"; // 主键数据库列名称 private static final String PK_ID_COLUMN_NAME = "id"; // ############################ 配置部分 end ############################MODULE_NAME 模块名称,在目前项目上以单独的文件夹形式体现
AUTHOR 作者名称,在类的注释上体现
TABLE_NAME 表名称,当前需要生成的表名称,关联实体类等
PK_ID_COLUMN_NAME 主键列名称,默认是id,如果是其它名称,可在这里配置
运行CodeGenerator.java
3.1 控制台输出生成日志
11:33:43.442 [main] DEBUG com.baomidou.mybatisplus.generator.AutoGenerator - ==========================准备生成文件...========================== 11:33:44.167 [main] DEBUG com.baomidou.mybatisplus.generator.engine.AbstractTemplateEngine - 创建目录: [E:\github\spring-boot-plus/src/main/java\io\geekidea\springbootplus\system\entity] 11:33:44.169 [main] DEBUG com.baomidou.mybatisplus.generator.engine.AbstractTemplateEngine - 创建目录: [E:\github\spring-boot-plus/src/main/java\io\geekidea\springbootplus\system\web\controller] 11:33:44.170 [main] DEBUG com.baomidou.mybatisplus.generator.engine.AbstractTemplateEngine - 创建目录: [E:\github\spring-boot-plus/src/main/java\io\geekidea\springbootplus\system\service] 11:33:44.170 [main] DEBUG com.baomidou.mybatisplus.generator.engine.AbstractTemplateEngine - 创建目录: [E:\github\spring-boot-plus/src/main/java\io\geekidea\springbootplus\system\mapper] 11:33:44.171 [main] DEBUG com.baomidou.mybatisplus.generator.engine.AbstractTemplateEngine - 创建目录: [E:\github\spring-boot-plus/src/main/java\io\geekidea\springbootplus\system\service\impl] ... 11:33:44.294 [main] DEBUG org.apache.velocity - ResourceManager : found /templates/mapper.xml.vm with loader org.apache.velocity.runtime.resource.loader.ClasspathResourceLoader 11:33:44.308 [main] DEBUG com.baomidou.mybatisplus.generator.engine.AbstractTemplateEngine - 模板:/templates/mapper.xml.vm; 文件:E:\github\spring-boot-plus/src/main/resources/mapper/system/SysLogMapper.xml 11:33:44.313 [main] DEBUG org.apache.velocity - ResourceManager : found /templates/queryParam.java.vm with loader org.apache.velocity.runtime.resource.loader.ClasspathResourceLoader 11:33:44.314 [main] DEBUG com.baomidou.mybatisplus.generator.engine.AbstractTemplateEngine - 模板:/templates/queryParam.java.vm; 文件:E:\github\spring-boot-plus/src/main/java/io/geekidea/springbootplus/system/web/param/SysLogQueryParam.java 11:33:44.332 [main] DEBUG org.apache.velocity - ResourceManager : found /templates/queryVo.java.vm with loader org.apache.velocity.runtime.resource.loader.ClasspathResourceLoader 11:33:44.337 [main] DEBUG com.baomidou.mybatisplus.generator.engine.AbstractTemplateEngine - 模板:/templates/queryVo.java.vm; 文件:E:\github\spring-boot-plus/src/main/java/io/geekidea/springbootplus/system/web/vo/SysLogQueryVo.java 11:33:44.347 [main] DEBUG org.apache.velocity - ResourceManager : found /templates/entity.java.vm with loader org.apache.velocity.runtime.resource.loader.ClasspathResourceLoader 11:33:44.357 [main] DEBUG com.baomidou.mybatisplus.generator.engine.AbstractTemplateEngine - 模板:/templates/entity.java.vm; 文件:E:\github\spring-boot-plus/src/main/java\io\geekidea\springbootplus\system\entity\SysLog.java 11:33:44.359 [main] DEBUG org.apache.velocity - ResourceManager : found /templates/mapper.java.vm with loader org.apache.velocity.runtime.resource.loader.ClasspathResourceLoader 11:33:44.360 [main] DEBUG com.baomidou.mybatisplus.generator.engine.AbstractTemplateEngine - 模板:/templates/mapper.java.vm; 文件:E:\github\spring-boot-plus/src/main/java\io\geekidea\springbootplus\system\mapper\SysLogMapper.java 11:33:44.362 [main] DEBUG org.apache.velocity - ResourceManager : found /templates/service.java.vm with loader org.apache.velocity.runtime.resource.loader.ClasspathResourceLoader 11:33:44.364 [main] DEBUG com.baomidou.mybatisplus.generator.engine.AbstractTemplateEngine - 模板:/templates/service.java.vm; 文件:E:\github\spring-boot-plus/src/main/java\io\geekidea\springbootplus\system\service\SysLogService.java 11:33:44.367 [main] DEBUG org.apache.velocity - ResourceManager : found /templates/serviceImpl.java.vm with loader org.apache.velocity.runtime.resource.loader.ClasspathResourceLoader 11:33:44.369 [main] DEBUG com.baomidou.mybatisplus.generator.engine.AbstractTemplateEngine - 模板:/templates/serviceImpl.java.vm; 文件:E:\github\spring-boot-plus/src/main/java\io\geekidea\springbootplus\system\service\impl\SysLogServiceImpl.java 11:33:44.373 [main] DEBUG org.apache.velocity - ResourceManager : found /templates/controller.java.vm with loader org.apache.velocity.runtime.resource.loader.ClasspathResourceLoader 11:33:44.376 [main] DEBUG com.baomidou.mybatisplus.generator.engine.AbstractTemplateEngine - 模板:/templates/controller.java.vm; 文件:E:\github\spring-boot-plus/src/main/java\io\geekidea\springbootplus\system\web\controller\SysLogController.java 11:33:44.376 [main] DEBUG com.baomidou.mybatisplus.generator.AutoGenerator - ==========================文件生成完成!!!========================== Process finished with exit code 0
