Linux 中断学习之小试牛刀篇(7)

111struct irq_chip {
112        const char      *name;
113        unsigned int    (*startup)(unsigned int irq);
114        void            (*shutdown)(unsigned int irq);
115        void            (*enable)(unsigned int irq);
116        void            (*disable)(unsigned int irq);
117
118        void            (*ack)(unsigned int irq);
119        void            (*mask)(unsigned int irq);
120        void            (*mask_ack)(unsigned int irq);
121        void            (*unmask)(unsigned int irq);
122        void            (*eoi)(unsigned int irq);
123
124        void            (*end)(unsigned int irq);
125        int             (*set_affinity)(unsigned int irq,
126                                        const struct cpumask *dest);
127        int             (*retrigger)(unsigned int irq);
128        int             (*set_type)(unsigned int irq, unsigned int flow_type);
129        int             (*set_wake)(unsigned int irq, unsigned int on);
130
131        void            (*bus_lock)(unsigned int irq);
132        void            (*bus_sync_unlock)(unsigned int irq);
133
134        /* Currently used only by UML, might disappear one day.*/
135#ifdef CONFIG_IRQ_RELEASE_METHOD
136        void            (*release)(unsigned int irq, void *dev_id);
137#endif
138        /*
139         * For compatibility, ->typename is copied into ->name.
140         * Will disappear.
141         */
142        const char      *typename;
143};
144
 111struct irq_chip {
 112        const char      *name;
 113        unsigned int    (*startup)(unsigned int irq);
 114        void            (*shutdown)(unsigned int irq);
 115        void            (*enable)(unsigned int irq);
 116        void            (*disable)(unsigned int irq);
 117
 118        void            (*ack)(unsigned int irq);
 119        void            (*mask)(unsigned int irq);
 120        void            (*mask_ack)(unsigned int irq);
 121        void            (*unmask)(unsigned int irq);
 122        void            (*eoi)(unsigned int irq);
 123
 124        void            (*end)(unsigned int irq);
 125        int             (*set_affinity)(unsigned int irq,
 126                                        const struct cpumask *dest);
 127        int             (*retrigger)(unsigned int irq);
 128        int             (*set_type)(unsigned int irq, unsigned int flow_type);
 129        int             (*set_wake)(unsigned int irq, unsigned int on);
 130
 131        void            (*bus_lock)(unsigned int irq);
 132        void            (*bus_sync_unlock)(unsigned int irq);
 133
 134        /* Currently used only by UML, might disappear one day.*/
 135#ifdef CONFIG_IRQ_RELEASE_METHOD
 136        void            (*release)(unsigned int irq, void *dev_id);
 137#endif
 138        /*
 139         * For compatibility, ->typename is copied into ->name.
 140         * Will disappear.
 141         */
 142        const char      *typename;
 143};
 144



name:中断控制器的名字;
Startup:启动中断线;
Shutdown:关闭中断线;
Enable:允许中断;
Disable:禁止中断;

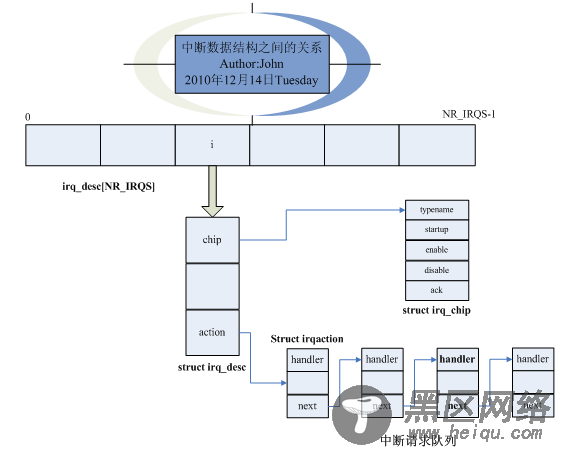

分析了struct irq_desc,struct irq_chip和irqaction的数据结构之后我们来看看他们之间的关系 。

Linux 中断学习之小试牛刀篇

现在深入分析request_irq()内部是如何实现的。
