这个 np 的值,就会用作 ForkJoinPool 成员变量 ctl 的计算:

// Active counts 活跃线程数 private static final int AC_SHIFT = 48; private static final long AC_UNIT = 0x0001L << AC_SHIFT; private static final long AC_MASK = 0xffffL << AC_SHIFT; // Total counts 总线程数 private static final int TC_SHIFT = 32; private static final long TC_UNIT = 0x0001L << TC_SHIFT; private static final long TC_MASK = 0xffffL << TC_SHIFT; private static final long ADD_WORKER = 0x0001L << (TC_SHIFT + 15); // sign // 计算 ctl this.ctl = ((np << AC_SHIFT) & AC_MASK) | ((np << TC_SHIFT) & TC_MASK);

np << AC_SHIFT 即 np 向左移动 48 位,这样原来的低 16 位变成了高 16 位,再用 AC 掩码(AC_MASK) 做与运算,也就是说 ctl 的 49 ~ 64 位表示活跃线程数

np << TC_SHIFT 即 np 向左移动 32 位,这样原来的低 16 位变成了 33 ~ 48 位,再用 TC 掩码做与运算,也就是说 ctl 的 33 ~ 48 位表示总线程数

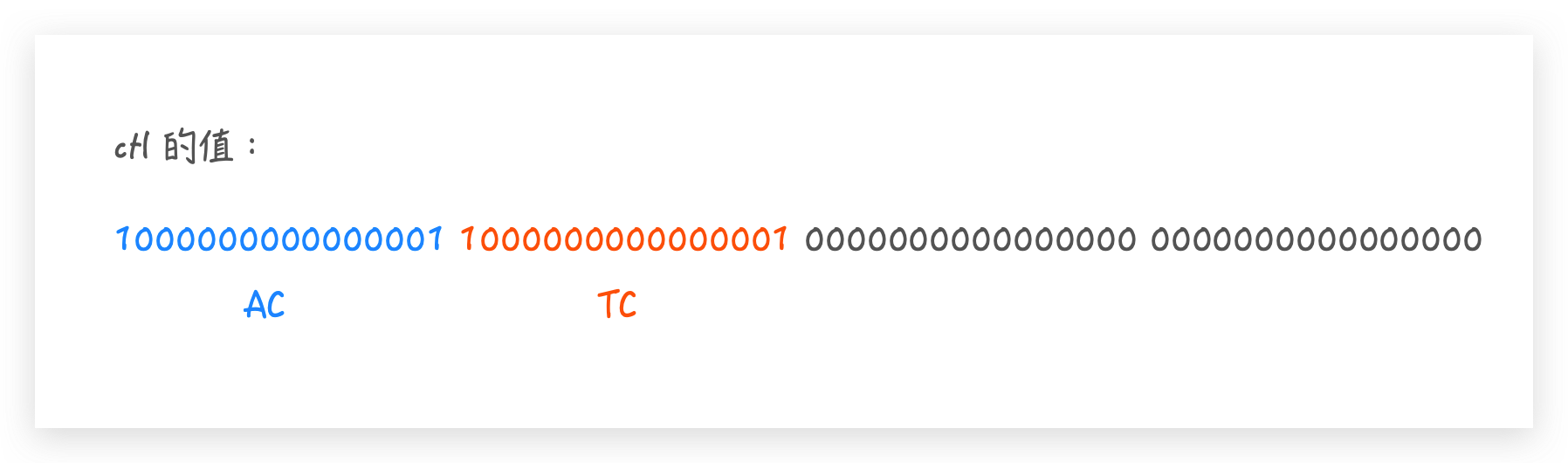

最后二者再进行或运算,如果并行度还是 MAX_CAP ,那 ctl 的最后结果就是:

ForkJoinPool大型图文现场(一阅到底 vs 直接收藏)

到这里,我们才阅读完一个构造函数的内容,从最终的结论可以看出,初始化后 AC = TC,并且 ctl 是一个小于零的数,ctl 是 64 位的 long 类型,低 32 位是如何构造的并没有在构造函数中体现出来,但注释给了明确的说明:

/* * Bits and masks for field ctl, packed with 4 16 bit subfields: * AC: Number of active running workers minus target parallelism * TC: Number of total workers minus target parallelism * SS: version count and status of top waiting thread * ID: poolIndex of top of Treiber stack of waiters * * When convenient, we can extract the lower 32 stack top bits * (including version bits) as sp=(int)ctl. The offsets of counts * by the target parallelism and the positionings of fields makes * it possible to perform the most common checks via sign tests of * fields: When ac is negative, there are not enough active * workers, when tc is negative, there are not enough total * workers. When sp is non-zero, there are waiting workers. To * deal with possibly negative fields, we use casts in and out of * "short" and/or signed shifts to maintain signedness. * * Because it occupies uppermost bits, we can add one active count * using getAndAddLong of AC_UNIT, rather than CAS, when returning * from a blocked join. Other updates entail multiple subfields * and masking, requiring CAS. */

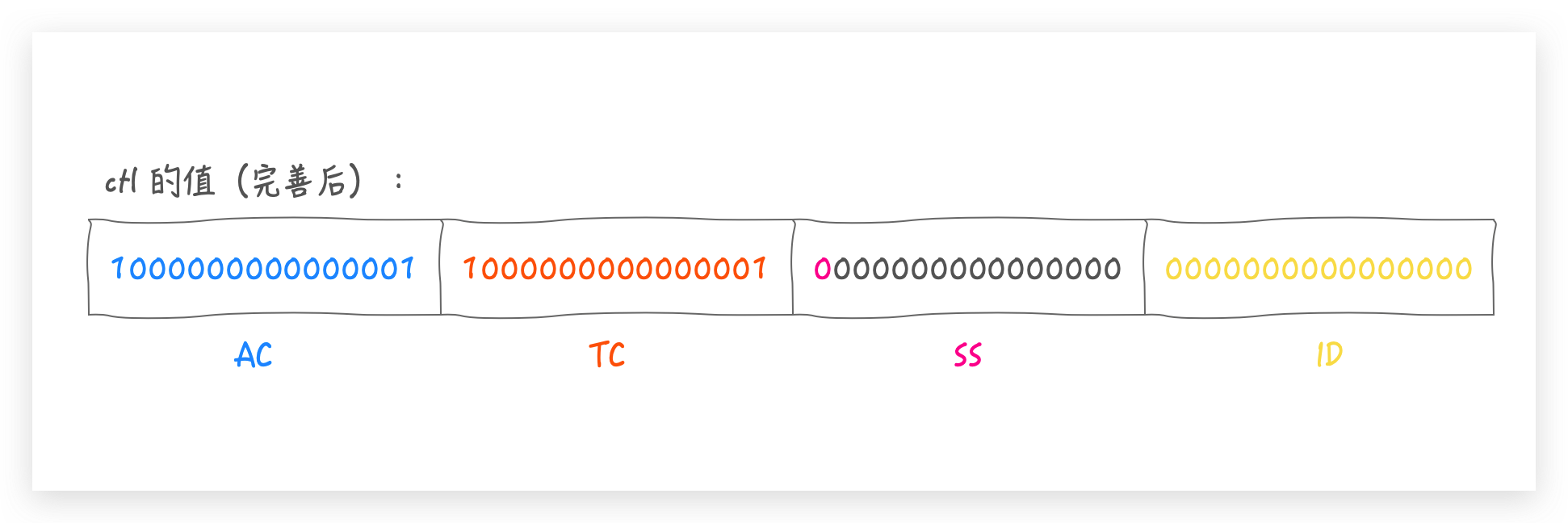

这段注释主要说明了低 32 位的作用(后面会从源码中体现出来,这里先有个印象会对后面源码阅读有帮助),按注释含义先完善一下 ctl 的值:

ForkJoinPool大型图文现场(一阅到底 vs 直接收藏)

SS:栈顶工作线程状态和版本数(每一个线程在挂起时都会持有前一个等待线程所在工作队列的索引,由此构成一个等待的工作线程栈,栈顶是最新等待的线程),第一位表示状态 1:不活动(inactive); 0:活动(active),后15表示版本号,防止 ABA 问题

ID: 栈顶工作线程所在工作队列的索引

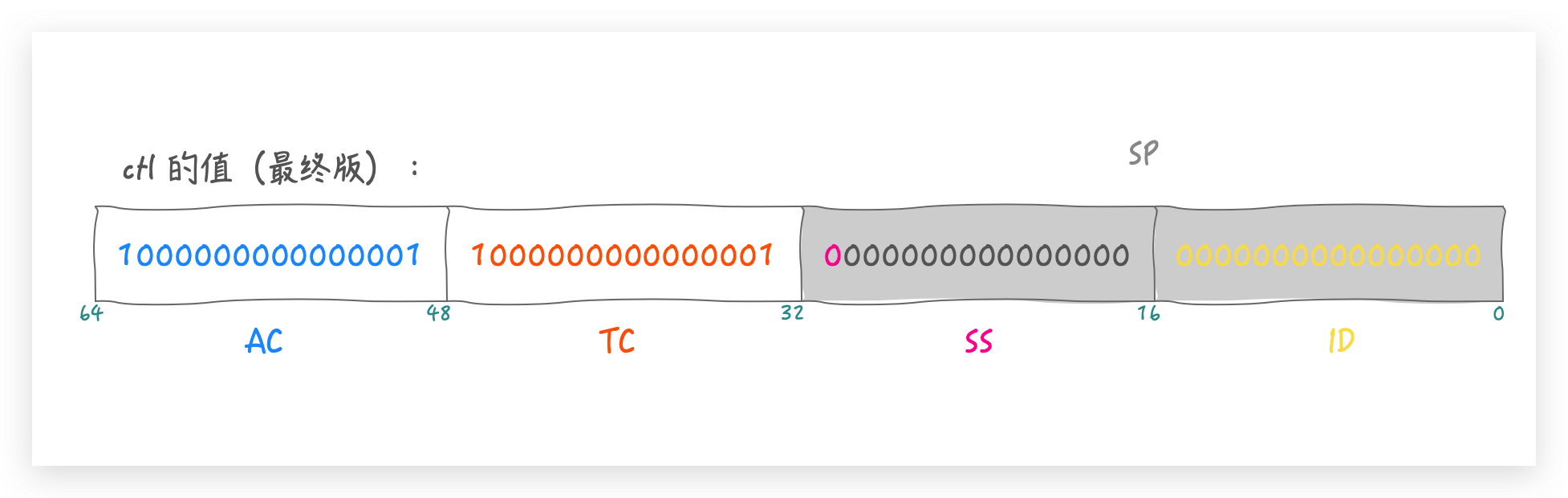

注释中还说,另 sp=(int)ctl,即获取 64 位 ctl 的低 32 位(SS | ID),因为低 32 位都是创建出线程之后才会存在的值,所以推断出,如果 sp != 0, 就存在等待的工作线程,唤醒使用就行,不用创建新的线程。这样就通过 ctl 可以获取到有关线程所需要的一切信息了

ForkJoinPool大型图文现场(一阅到底 vs 直接收藏)

ForkJoinPool大型图文现场(一阅到底 vs 直接收藏)

除了构造方法所构建的成员变量,ForkJoinPool 还有一个非常重要的成员变量 runState,和你之前了解的知识一样,线程池也需要状态来进行管理

volatile int runState; // lockable status // runState bits: SHUTDOWN must be negative, others arbitrary powers of two private static final int RSLOCK = 1; //线程池被锁定 private static final int RSIGNAL = 1 << 1; //线程池有线程需要唤醒 private static final int STARTED = 1 << 2; //线程池已经初始化 private static final int STOP = 1 << 29; //线程池停止 private static final int TERMINATED = 1 << 30; //线程池终止 private static final int SHUTDOWN = 1 << 31; //线程池关闭

runState 有上面 6 种状态切换,按注释所言,只有 SHUTDOWN 状态是负数,其他都是整数,在并发环境更改状态必然要用到锁,ForkJoinPool 对线程池加锁和解锁分别由 lockRunState 和 unlockRunState 来实现 (这两个方法可以暂且不用深入理解,可以暂时跳过,只需要理解它们是帮助安全更改线程池状态的锁即可)

不深入了解可以,但是我不能不写啊...... 你待会不是得回看吗?
